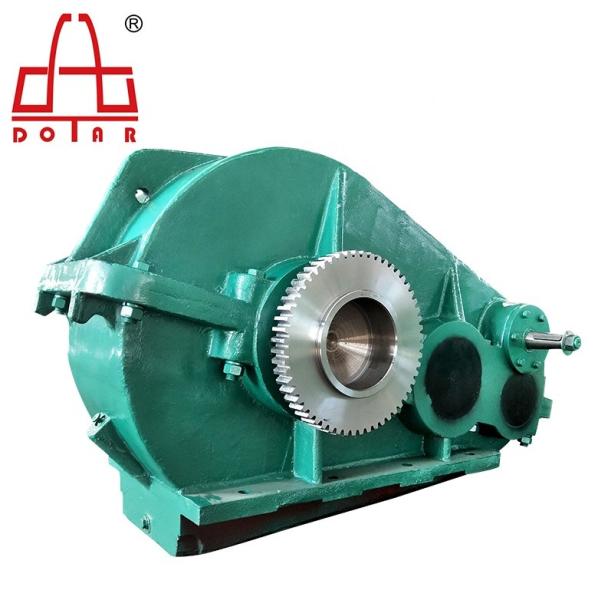

Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted
Specifications
Brand Name :
Dongtai
Model Number :
ZQ
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per month
Delivery Time :
5-20 work dyas
Packaging Details :
The Products are packed in the wooden Case.
Product Name :
Quality guarantee Manufacturing Plant Reduction Gears ZQ Cylindrical Gearbox
Gearing arrangement :
Cycloidal
Rated power :
0.4-350kw
Input speed :
750-1500rpm
Output speed :
30-187.5rpm
Gear ratio :
8.23/12.64/20.49/31.5/48.57
Gear material :
45# steel
Mounting position :
Foot Mounted
Description

Quality guarantee Manufacturing Plant Reduction Gears ZQ Cylindrical Gearbox

Brief Introduction

The product is cylindrical geabox with two-stage drive, which is widely applied for crane machinery, mine equipment and general chemical industry. Its working temperature is -40~+45ºC, input rotating speed less than 1500rpm and gear transmission circular velocity less than 14m/s. It can run in forward and reverse direction.China gear box ZQ cylindrical bevel gearbox industrial gear reducer

ZQ gearboxreducer is mainly used for lifting, mining, general chemical, textile, light industry and other industries, its application conditions are as follows:

1, reducer gear drive circumference speed is not more than 10 m / s;
2, the speed of the high speed shaft of the reducer is not more than 1500 RPM
3, the reducer is used for two-way operation;
4. The working environment temperature of the reducer is-40 °C to + 40 °C
5. There are nine transmission ratios, nine configurations and three types of low-speed shaft ends
6. The transmission ratios of such reducers are: 48.57,40.17,31.5,23.34,20.49,15.75,12.64,10.35,8.23

Structure Features

1. Made of high-quality aluminum alloy, light in weight and non-rusting.
2. Large in output torque.
3. Smooth in running and low in noise
4. High in radiating efficiency.
5. Good looking in appearance, durable in service life and small in volume.

Type
reduction gears
Input speed
850/1000/1500 r/min
Output speed
10-100 r/min
torque
1500-10000NM
power
3--110KW
Color
As requir
Material
Cast iron / steel
Input Form
Shaft Input
Heat treatment
Gear Grinding
Mounting Position
Horizontal (foot Mounted)

Motor Reduction Gearbox 45 Steel Cylindrical Gearbox Foot Mounted

Technical Parameters

Type ZQ250 ZQ350 ZQ400 ZQ500 ZQ650 ZQ750 ZQ850

High-Speed Centre Distance

m/m

 100 150 150 200 250 300 350

Low-Speed Centre Distance

m/m

 150 200 250 300 400 450 500

L×W×H

Dimension

 540×230×325 730×290×405 825×310×490 990×350×590 1280×470×700 1450×510×745 1630×580×875

Weight

Kg

 100 200 250 390 880 1100

1500

Features of Gear speed reducer:

1. Gear circle velocity ≤20m/s
2. High speed shaft rotation velocity ≤1500r/min
3. Enviromental temperature --40 ~ +45 degree
4. Progressive and retrogressive rotation.
5. Big power and speed damping range.
6. Assemble and adjust easily.
7. The output shaft assimbles in two directions. and used to drive singles or units.
8. Compact structure and small volume with light weight.
9. Operate smoothly with low noise

FAQ:

1. Are you trading company or manufacturer ?

We are factory.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

3. What industry is your product used in?
This machine is mainly used for the rotary mechanism of tower crane, and can be used as supporting parts for lifting, digging, transportation, construction and other industries.
4. Do you offer customized services?
We support LOGO customization, packaging customization and pattern customization.
5. What are the features and advantages of your products?
The main parts are carburized or nitrocarburized by high quality alloy steel, with novel and beautiful shape, small volume, simple and reasonable structure, uniform stress, stable transmission, low noise, long life and high efficiency.
