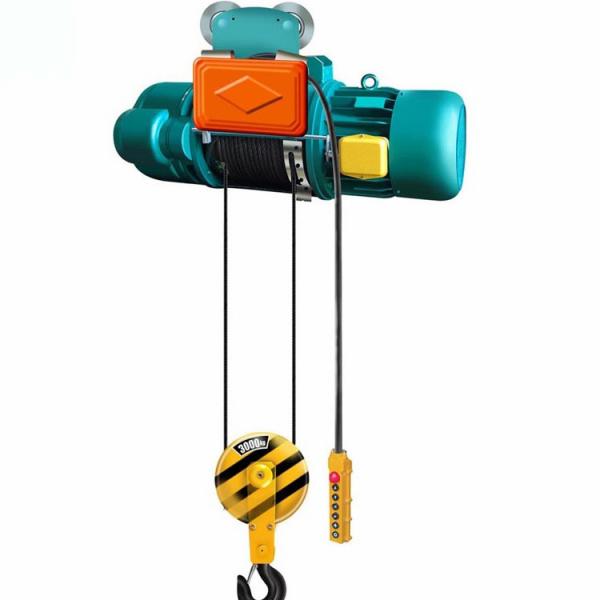

Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts
Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts
Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts
Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts
Specifications
Brand Name :
Dongtai
Model Number :
DTEH-01
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 set
Price :
$1800
Payment Terms :
T/T, L/C, D/A
Supply Ability :
1000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Wooden case
Product name :
Free Maintenance Single Girder Crane used CD1 Style Electric Hoist
Lifting capacity :
1-20 Ton
Usage :
Construction hoist
Lifting speed :
8 m/min
Lifting motor :
7.5kw
Running speed :
20 m/min
Traveling motor :
0.37kw
Power supply :
AC-3Phase-220/380/400/415/440V-50/60Hz
Description

Free Maintenance Single Girder Crane used CD1 Style Electric Hoist

Product Description

Lifting hoist model CD wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It has only one normal speed, which can satisfy normal application.

Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts

Hook Rope guide

1.The Hook Block is tested to 150% of full load before assembly.

2.The rope sheaves are fully guarded with protective steel casting.

3.All sheaves rotate on ball bearing the pulley is thicken and dilated.

1.In two halves, easy accessibility.

2.It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.

3.Thickened and dilated, so that it is not easy to be damaged.
Rope Drum Wire Rope

1.Grooved Hoist Drum.

2.Seamless pipe with adequate length.

3.Proper support for the rope to minimize abrasive wear.

4.Drum shaft resolves on Ball Bearings for ensuring smooth running.

1.Comply with the exporting standards.

2.The leading rope won't slip sideways when slack.

3.the safety factor is 6.
Gear Box Motor

1.Special treated for high wear resistance.

2.Each Geared Shaft assembly is supported on ball or roller bearings.

3.Smooth, low-friction opearation.

1.A taper type rotator motor with braking, made by Nanjing Special Motor Factory.

2.Best quality motor with bigger torque to be adapted to moving frequently.

3.The Maximum torque is 2.4-3 times bigger as the rated torque.

Technical Data

Type CD1(MD1)
Capacity (t) 0.25 0.5 1 2 3 5 10 16
Lifting Height (m) 3~9 6~12 6~30 6~30 6~30 6~30 9~30 9~30
Lifting Speed (m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Traveling Speed (m/min) 20 20/30 18
Rail 10-20b 16-28b 20a-32c 25a-50b 32b-50b 32b-63c
Work Duty M4
Power 3PH AC 380V 50Hz or Customized

Advantages of Dongtai Wire Rope Hoist

• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve, market agent support and protection.
• Excellent quality, top in China, always the leader.
• Sample order and trail order are acceptable.

Application Industry

Electric hoist widely applied to lifting heavy weight or being installed with sigle-girder electric crane or straight and curve T-shape beam;It is also used in the hoist double beam, gourd gantry crane or cantilever crane;It is easily operated in the factory, warehouse, railway and dock etc.

Crane 8 M/Min Single Girder Hoist CD1 Type Electric Hoist Gantry Spare Parts

Our Service:

Presale service:

1. Free comprehensive and detailed technology consultancyin construction sites, referential programs for constructionequipment and the most suitable product program.

2.we have a complete service network,hotline services for 24 hours and assist you to solve the problem in a short time.

After-sale service:

1.We provide free guidance of installation and debugging and free training of operation, care and maintenance.

2. One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
