European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
Specifications
Brand Name :
Dongtai
Model Number :
DTEH-02
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, D/A, T/T
Supply Ability :
1000sets per month
Delivery Time :
5-20 days
Packaging Details :
The products will be packed in the wooden case or pallet
Product name :
European 10Ton 20m Electric Hoist Gantry Crane Spare Parts with ABM Geared Motor
Application industries :
Building Material Shops, Machinery Repair Shops,Warehouse,Factory
Power source :
Electric
Sling type :
Wire rope
Lifting speed :
8m/min
Lift capacity :
10 Ton
Voltage :
380V
Warranty :
1 Year
Description

European 10Ton 20m Electric Hoist Gantry Crane Spare Parts with ABM Geared Motor

Product Description

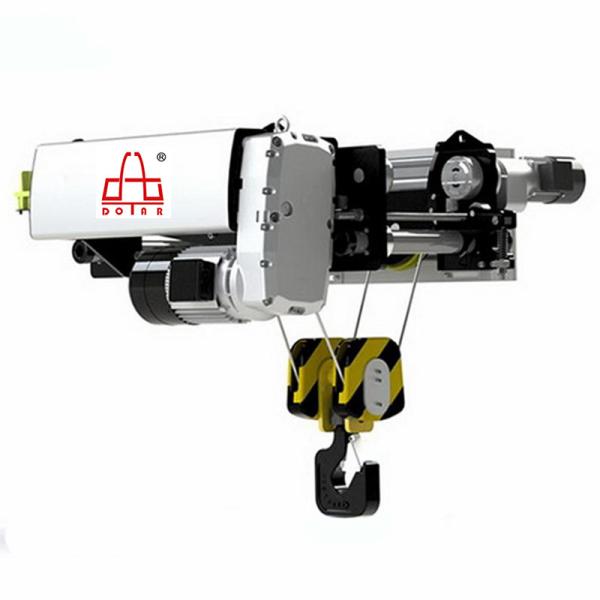

DTEH wire rope electric hoist create the greatest value for the users with its excellent durability, high quality and cost-effective. The electric hoist is for single / double girder overhead travelling and gantry cranes. DTEH wire rope electric hoist is designed and manufactured according to FEM European standard and DIN Germany standard, which is a new energy saving and environment friendly product. The hoist adopts modular C-design, has compact structure, low headroom, stable lifting operation, accurate positioning. The maximum hoisting load is 20 tons.

European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor

Capacity (kg) Working class ( FEM) Working class ( ISO/GB) Lifting height (m) Lifting speed (m/min) Travel speed (m/min) H Size (mm) C Size (mm)
1000 4m M7 6/9/12/18 0.8/5.0 5~20 245 385
1250 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
1600 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
2000 3m M6 6/9/12/18 1.3/8.0 5~20 245 385
2500 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
3200 2m M5 6/9/12/18 1.0/6.3 5~20 245 385
5000 2m M5 6/9/12/18 0.8/5.0 5~20 266 495

Features

1. Electromagnetic disk brake, dust-proof
2. Harden gear, maintenance- free
3. Double speed
4. Schneider contactor
5. Heavy duty galvanized wire rope
6. Overload protection
7. Double upper limits, protecting the hoist body and hook assembly
8. Motor over temperature protection

Apply in Industry

The electric hoist is widely used in industry hoisting like the picture.

European 20m Electric Lifting Hoist 10 Ton Gantry Crane Spare Parts With ABM Geared Motor
