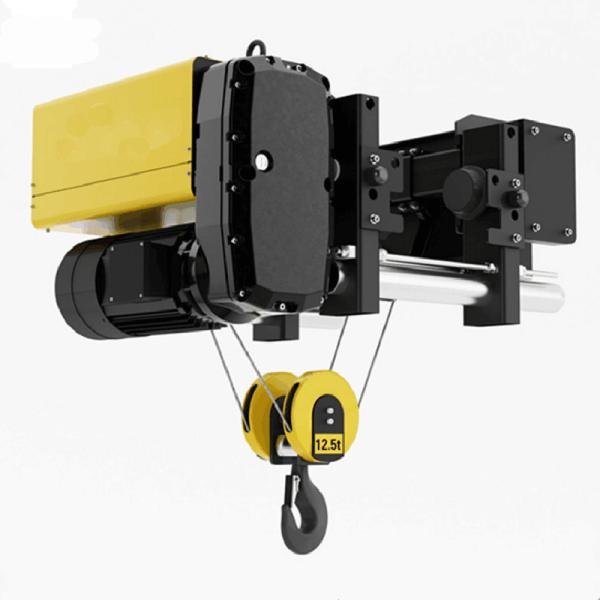

European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts
Specifications
Brand Name :
Dongtai
Model Number :
DTEH-02
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, D/A, T/T
Supply Ability :
1000sets per month
Delivery Time :
5-20 days
Packaging Details :
The products will be packed in the wooden case or pallet
Product name :
European Double Speed Electric Wire Rope Hoist 3ton 5 ton 10 ton
Power source :
Electric
Sling type :
Wire rope
Lifting speed :
8m/min
Lift capacity :
10 Ton
Voltage :
380V
Warranty :
1 Year
Lifting height :
3-20m
Description

European Double Speed Electric Wire Rope Hoist 3ton 5 ton 10 ton

Product Description

Dongtai European electric wire rope hoist have compact-design and provide outstanding quality and efficiency. Absolutely reliability is one of the most important features. Dongtai Gear introduced the latest technology like infinitely variable speed control, braking energy feedback system, safety monitor into control system. All these innovations benefit our customers for greater reliability and efficiency and make our wire rope hoist very competitive in the market.

European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts

Hoist motor, gearbox and drum form a compact and sturdy package and offers efficient use of floor space under the crane and increased lifting heights. Outstanding design features include the parallel configuration of rope drum and hoist motor, modular design and the functional arrangement of all components. Joints with direct fits between components such as hoist motor, gears, rope drum and limit switches save parts and improve reliability. Enclosed hoist housing protects the rope drum, rope guide and limit switch equipment from dirt and climatic conditions.

Machinery design is based on FEM calculations for standard lifting gear allowing safe and reliable lifting of loads from 3.2 to 80 tons. Machinery has smooth and silent operation that extends the lifetime of the hoist.

Parameter

Working duty M6
Lifting height m 6 9 12
Lifting speed m/min 0.66/4
Pulley ratio 4/1
Traveling speed m/min 2~20
Max Wheel Load KN 34.7 34.8 34.9
Total weight kg 650 690 730
Main dimension mm 6 9 12
width of main beam b 300~450
Lifting side width K1 560 560 560
Operation side width K2 550 550 550
Hoist length l 1140 1320 1500
Hook superior limit h 700 700 700

Features

1. Electromagnetic disk brake, dust-proof
2. Harden gear, maintenance- free
3. Double speed
4. Schneider contactor
5. Heavy duty galvanized wire rope
6. Overload protection
7. Double upper limits, protecting the hoist body and hook assembly
8. Motor over temperature protection

Apply in Industry

The electric hoist is widely used in industry hoisting like the picture.

European Double Speed Wire Rope Mini Electric Hoist 59 Ft Lift 3ton 5 Ton 10 Ton Gantry Spare Parts

Advantages:

1. Optimized design with FEM standard, with light and beautiful appearence.

2. Safe and efficient to operate, and meet current requirements of low noise and environmental protection.

3. Equipped with intelligent safe operation monitoring system which can uninterruptedly record working status and prevent unprofessional operations. And controller will perform a self-test before starting, including the power supply voltage level, default phase, button zero status and validity of each safety device.

4. Imported Motors, aluminum alloy drawing molding with excellent heat dissipation, and overheated protection and alarm function.

5. Maintenance-free design of whole body and less wearing parts make it convenient to maintain.
