Specifications
Brand Name :
Dongtai
Model Number :
DTEH-01
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1 set
Price :
$1800
Payment Terms :
T/T, L/C, D/A
Supply Ability :
1000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Wooden case
Product name :
5Ton building materials lifting machine construction electric wire rope winch hoist
Usage :
Construction Hoist,Mining Hoist,Lifting & moving materials
Sling type :
Wire Rope
Lift speed :
8m/min (as customised)
Maximum lifting height :
30m
Maximum lifting weight :
20t
Power supply :
3 Phase AC 380V 50HZ
Color :
Blue or other colors
Description

5Ton building materials lifting machine construction electric wire rope winch hoist

Product Description

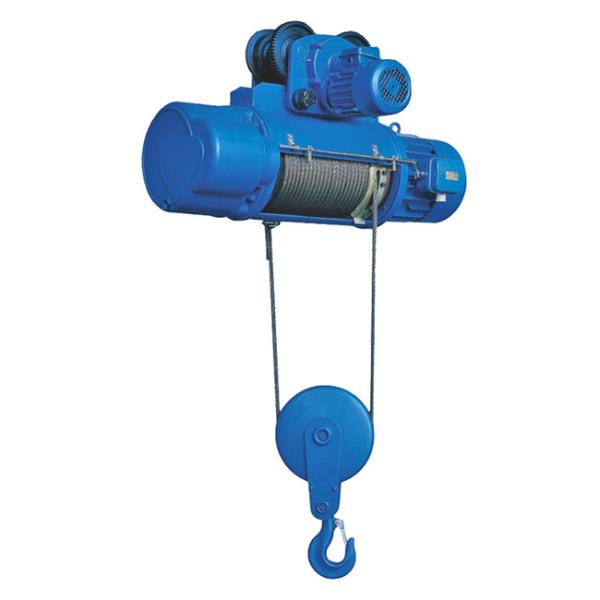

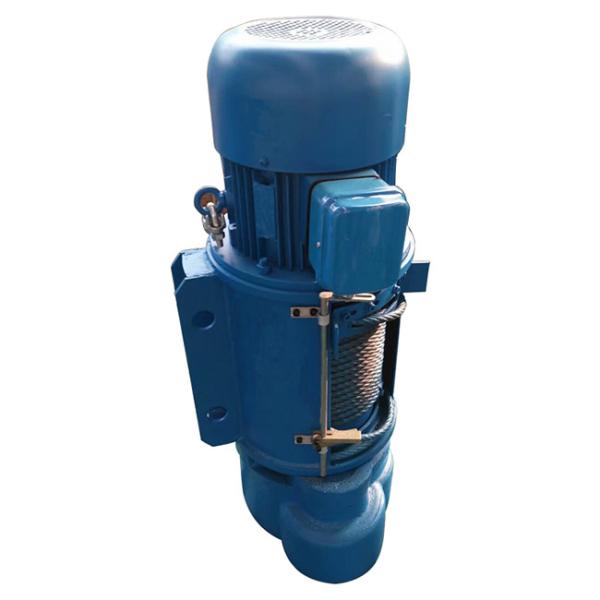

CD1, MD1 type electric hoist with wire rope hold the characteristic as compact structure, light dead weight and easy operation. It can be installed on I-steel or working together with single beam crane, double beam crane, jib crane and so on. CD1 type is single-speed while MD1 type has dual speed. The fast speed is for lifting, low speed can do precise loading and unloading, mounding of sand box, maintenance of machine tools etc.

5Ton Building Materials Lifting Machine Construction Wire Rope Winch Hoist Electric

5Ton Building Materials Lifting Machine Construction Wire Rope Winch Hoist Electric

Advantages of Dongtai Wire Rope Hoist

• Light weight robust construction.

• Low effort to lift maximum load.

• Fully forged hooks.

• High grade alloy load chain.

• Durable baked enamel paint protection.

• Overload protection device available upon request.

• Excellent after-sale serve.

Technical Data

Type CD1, MD1
Lifting weight(T) 0.25 0.5 1 2 3 5 10 16 20
Lifting height(m) 3.6.9 6.9.12.18.24.30 9.12.18
Hoisting speed(m/min)
8
0.8/8
7
0.7/7

3.5

0.35/5

 4
Travelling speed(m/min) 20 20/30 20
Wire
rope
 Dia 3.6 4.8 7.7 11 13 15 15 1735 19.5
spec 6x19 6 x 37 + 1
Hoisting
Motor
 Type ZD112-4 ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD152-4
ZDS0.2/0.8 ZDS0.2/1.5 ZDS0.4/3.0 ZDS0.4/4.5 ZDS0.8/7.5 ZDS1.5/13 ZDS1.5/13
Power(kw) 0.4

0.8

0.2/8

1.5

0.2/5

3.0

0.4/3.0

4.5

0.4/4.5

7.5

0.8/7.5

13

1.5/13

13

1.5/13

 18.5
Rotate speed 1380 (r/min)
Current(A) 1.25

2.4

0.72/2.4

4.3

0.72/4.3

7.6

1.25/7.6

11

2.4/11

18

2.4/18

30

4.3/30

 41.7

Travelling

Motor

 Type ZDY110-4 ZDY111-4 ZDY112-4 ZDY121-4
Power(kw) 0.06 0.2 0.4 0.8 0.8x2
Rotate speed 1400(r/min) 1380(r/min)
Current(A) 0.3 0.72 1.25 2.4 4.3
NO of connecting 120
Working system Intermediate FC=25% M3
Power source 380V 50HZ 3phs
We can design and manufacture all kinds of non-standard product according to your requirement

Application Industry

5Ton Building Materials Lifting Machine Construction Wire Rope Winch Hoist Electric

FAQ:

1. Q: What’s your MOQ?

A: 1 Set;

2. Q: What’s your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What’s your delivery period?

A: Within 15/30 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

5. Q: Could your winches drag inclined?

A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
