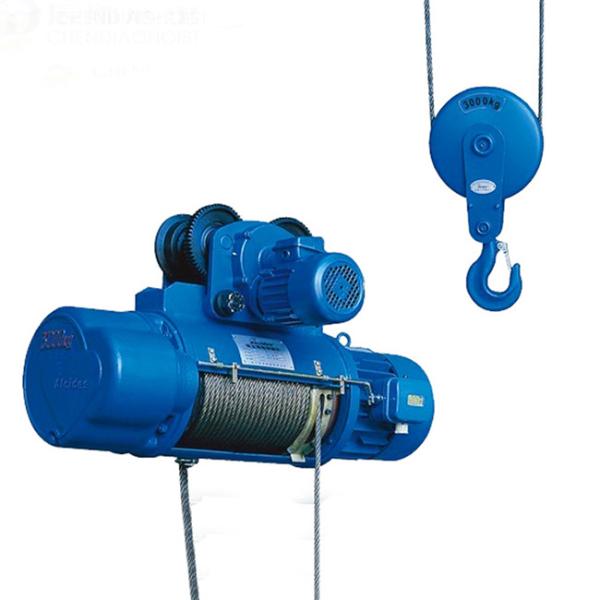

Single beam electric hoist crane monorail winch outdoor crane hoist 1ton

Product Description

Model CD, MD, Wire rope Electric Hoist is a small sized lifting equipment,which can be mounted on single beam, bridge, gantry and Jib cranes.With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbour, ware houses, cargo storage are as and shops, essential in raising working efficiency and improving working conditions. Model CD, Electric Hoist has only one normal speed, which can satisfy normal application. Model MD, Electric Hoist provides two speeds; normal speed and low speed. At a low speed,it can do precise Loading and unloading, mounding of sand box, maintenance of machine tools, etc. Thus Model MD, Electric Hoists is more widely used than Model CD. To meet the needs of lifting heavier cargo, our factory also manufacture European electric hoist.

Details

Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake motor, in order to adapt to the frequent direct start in the intermittent work.

Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life and high mechanical efficiency.

Main electric parts: adopts top quality and famous brand: Siemens brand.

Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.

Hook: The hook is closed type with high safety; it wrought with special high quality steel.

Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.

Specification

Feature

1) Simple structure in linear type, easy in installation and maintain.
2) This type wire-rope electric hoists can be widely used to hoist heavy objects.
3) There are more lifting rooms, saving the construction cost of the workshop, the material can be elevated to a higher position.
4) Efficient high lifting speed, smooth low lifting speed, precise positioning.

Application

Electric hoist is a kind of small-sized lifting equipment which is small volume, light weight, huge lifting capacity. When workshop filled with explosive mixture, in order to ensure safe premise, Wire rope hoist is necessary and favorable equipment to improve labor conditions and labor productivity. It can be suspended on I- beam track for straight or curve traversing, or mounted on a fixed frame to lift heavy material.

Tag:electric hoist crane,outdoor crane hoist,single beam hoist crane
