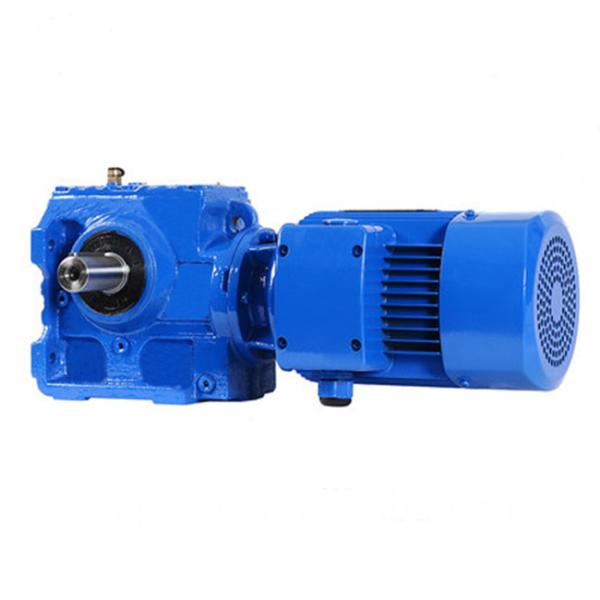

K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft
Specifications
Brand Name :
Dongtai
Model Number :
DTK
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 sets per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case or pallet
Output Torque :
17-4200 N.m
Input Speed :
600-3000 RPM
Output Speed :
0.1-185 RPM
Material :
Cast iron housing
Mounting Position :
Foot Mounted. Flange Mounted
Input Form: :
IEC Flange
Gearing Arrangement :
Helical
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Color :
According to client's requirement
Warranty :
12 months
Description

Products Description

K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft

K Series Elevator Helical Bevel Gearbox Gear Reduction Box For Electric Motor Solid Shaft


1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.


2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.


3. Mounting Arrangement: No strict limitation to the mounting arrangement.


4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.


5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.


6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.


7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.


8. Large radial loading ability.


9. Axial load ability of up to 5% of radial load.

Technical Data:

Model:

K Series - Foot-mounted, solid shaft output
K(KA, KF, KAF, KAB, KAZ) Series – Solid shaft input

Housing

Cast Iron

Input power

0.12-200kw

Output torque

10-61900N.m

Output speed

0.08-261rpm

Bearing

NSK,SKF or on request

Ratio

5.36~178.37

Installation Form

Foot, Flange, Shaft Mounted

Seal

SKF or on request

Gears

Helical-bevel Gears

Input Configurations

Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange

Applicable Motors

Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor

Output Configurations

Solid Shaft Output
Hollow Shaft Output

Installation

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted

Lubrication

Oil-bath and Splash Lubrication

Product Application

K series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.

• Food processing machine

• Construction machinery

• Wood processing machine

• Conveyors

• Agriculture machine

• Crane/ mineral machinery

Product Feature

Our K series helical gear reducers are based on the building block design, so its convenient to fit all types of motors or to connect with other power input, and its possiblefor different types of machines to combine or connect.

• High modular design.

• Efficiency and save power.
• Save cost and low maintenance.

• Excellent sealing, wide range of industry application.
• High loading support, stable transmitting and low noise level.

Product process


Box processing process
Mechanical modeling of metal mold → casting on production line → artificial aging treatment → shot peening → machining center processing → three-coordinate detector detection

Gear processing process

Forging → normalizing > roughing → finishing car → hobbing → tooth end chamfering → carburizing and quenching (HRC58-62) → shot blasting → grinding end face and inner hole → grinding tooth → accuracy detection (tooth shape, tooth direction, tooth Distance, level 6) → wire cutting keyway > magnetic particle inspection → ultrasonic cleaning and rust prevention

Tooth shaft machining process

Forging a normal fire and a rough car (including the center hole) a finishing car → hobbing → milling key slot → carburizing quenching (HRC58-62) a shot blasting a grinding center hole → grinding outer circle → grinding tooth → detection (tooth Shape, tooth direction, pitch, etc., level 6) → magnetic particle inspection → ultrasonic cleaning and rust prevention
