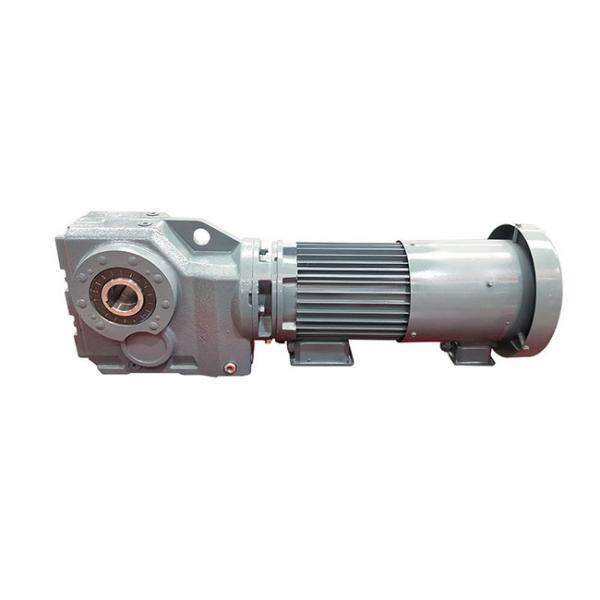

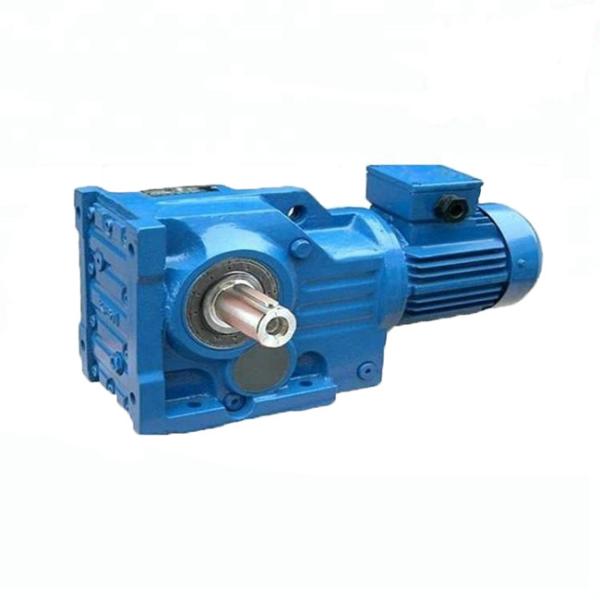

K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft
Specifications
Brand Name :
Dongtai
Model Number :
DTK
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 sets per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case or pallet
Material :
Cast iron housing
Gearing Arrangement :
Helical
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Color :
According to client's requirement
Warranty :
12 months
Output Torque :
17-4200N.m
Input Speed :
600-3000 RPM
Output Speed :
0.1-185 RPM
Mounting Position :
Foot Mounted. Flange Mounted
Input Form :
IEC Flange
Description

K Series Bevel Helical Gear Motor Speed Reduction Gearbox Solid Hollow Shaft

Products Description

The K series product has the characteristics of small size, large torque, the module combination system based on the design and manufacturing,there are a lot of motor combination, installation form and structure scheme, the transmission ratio extension close, meet different working condition, realize the mechanical and electrical integration, the reducer adopts unit structure principle of modular design, a large number of reduced parts and inventory, also greatly shorten the delivery cycle, high transmission efficiency, low consumption, superior performance. The high rigidity cast iron box with reinforcement, the hard tooth surface gear adopts high quality alloy steel, the surface is carburized and hardened, the tooth grinding is fine processing, the transmission is stable, the noise is low, the bearing capacity is big, the temperature rise is low, the life is long.

Technical Data
Model:
K Series - Foot-mounted, solid shaft output
K(KA, KF, KAF, KAB, KAZ) Series – Solid shaft input
Housing
Cast Iron
Input power
0.12-200kw
Output torque
10-61900N.m
Output speed
0.08-261rpm
Bearing
NSK,SKF or on request
Ratio
5.36~178.37
Installation Form
Foot, Flange, Shaft Mounted
Seal
SKF or on request
Gears
Helical-bevel Gears
Input Configurations
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
Applicable Motors
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
Output Configurations
Solid Shaft Output
Hollow Shaft Output
Installation
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication
Oil-bath and Splash Lubrication

Product process


Box processing process
Mechanical modeling of metal mold → casting on production line → artificial aging treatment → shot peening → machining center processing → three-coordinate detector detection

Gear processing process

Forging → normalizing > roughing → finishing car → hobbing → tooth end chamfering → carburizing and quenching (HRC58-62) → shot blasting → grinding end face and inner hole → grinding tooth → accuracy detection (tooth shape, tooth direction, tooth Distance, level 6) → wire cutting keyway > magnetic particle inspection → ultrasonic cleaning and rust prevention

Tooth shaft machining process

Forging a normal fire and a rough car (including the center hole) a finishing car → hobbing → milling key slot → carburizing quenching (HRC58-62) a shot blasting a grinding center hole → grinding outer circle → grinding tooth → detection (tooth Shape, tooth direction, pitch, etc., level 6) → magnetic particle inspection → ultrasonic cleaning and rust prevention

Product Application

K series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.

• Food processing machine

• Construction machinery

• Wood processing machine

• Conveyors

• Agriculture machine

• Crane/ mineral machinery

Product Feature

Our K series helical gear reducers are based on the building block design, so its convenient to fit all types of motors or to connect with other power input, and its possiblefor different types of machines to combine or connect.

• High modular design.

• Efficiency and save power.
• Save cost and low maintenance.

• Excellent sealing, wide range of industry application.
• High loading support, stable transmitting and low noise level.
