Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer
Specifications
Brand Name :
Dongtai
Model Number :
DT-CD1GR
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per month
Delivery Time :
5-30 work dyas
Packaging Details :
The Products are packed in the wooden Case.
Product Name :
Steel wire rope electric hoist gearbox reducer supplied from stock
Gearing arrangement :
Cycloidal
Rated power :
1.5/3/4.5/7.5/13kw
Input speed :
750-1500rpm
Output speed :
30-187.5rpm
Gear ratio :
47.69/60.52/72.15/81.13/113
Gear material :
40Cr, 20 CrMnTi
Mounting position :
Foot Mounted
Description

Steel wire rope electric hoist gearbox reducer supplied from stock

Brief Introduction

The electric hoist gear box used in 0.5 t - 32 t electric hoist.It is the part of hoist reducer.The reducer for 0.5 t hoist is straight tooth planetary rotation mechanism, others are adopt bevel gears level 3 or level 4 to slow down. The gear and gear shaft adopts 40 Cr or 20 CrMnTi steel forging processing, and the heat treatment, all with rolling bearing support. The shell is made of cast iron, assembly, dust proof and reliable.

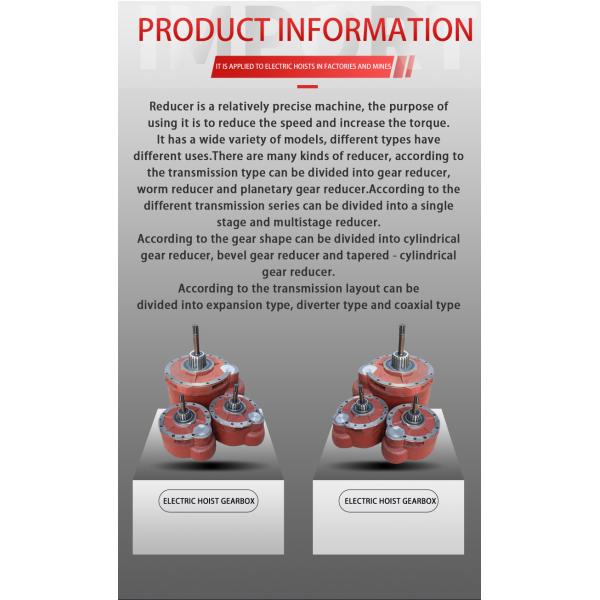

Reducer is a relatively precise machine, the purpose of using it is to reduce the speed and increase the torque.It has a wide variety of models, different types have different uses.There are many kinds of reducer, according to the transmission type can be divided into gear reducer, worm reducer and planetary gear reducer.According to the different transmission series can be divided into a single stage and multistage reducer.According to the gear shape can be divided into cylindrical gear reducer, bevel gear reducer and tapered - cylindrical gear reducer.According to the transmission layout can be divided into expansion type, diverter type and coaxial type reducer.

Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer

Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer

Technical data

Lifting capacity(TON) 1 2 3 5 10 16
speed ratio 47.69 60.52 68.95 81.14 113.30 113.30
In addition to the conventional size, we can design and customize all kinds of non-standard electric hoist reducer according to the requirements of customers


Steel Wire Rope Electric Hoist Gear Box Reducer Gearbox Speed Reducer


Features:

Large transmission speed ratio and high transmission accuracy Compact structure, low noise Mechanical oil lubrication, excellent
working environment Box body and cover are processed by machining center, with high machining accuracy and good gear engagement
conditions. All gears are designed with helical teeth, which have large bearing capacity and strong impact load bearing capacity
