16T 18m European Double Girder Electric Wire Rope Hoist
16T 18m European Double Girder Electric Wire Rope Hoist
16T 18m European Double Girder Electric Wire Rope Hoist
16T 18m European Double Girder Electric Wire Rope Hoist
16T 18m European Double Girder Electric Wire Rope Hoist
16T 18m European Double Girder Electric Wire Rope Hoist
Specifications
Brand Name :
DONGTAI
Model Number :
DTEH-02
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
5000 sets per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case or pallet
Product Name :
16ton 18m Dongtai European Double Girder Electric Wire Rope Hoist
Keywords :
Electric Wire Rope Hoist
Application :
Lifting Goods or working as overhead and gantry crane hoisting system
Capacity :
16 Ton
Power Supply :
380V, 3Phase, 50HZ
Control Method :
Pendent Control or With Remote Additional
Lifting Height :
6m-30m
Lifting Speed :
4/0.6; 3.3/0.8
Traveling Speed :
5/20
OEM :
Accept
Working Class :
FEM 2M, 3M, ISO M5, M6
Wire Rope :
∅12mm
Testing :
100% Load Test & Overload Test
Motor :
Crane Duty
Description

16ton 18m Dongtai European Double Girder Electric Wire Rope Hoist

Brief Intriduction

Dongtai wire rope electric hoist is designed and manufactured in accordance with the latest National GB/T3811 Design Rules for Crane and FEM Standard, which can provide the advanced design and beautiful appearance. The special design makes the weight lighter than the commen electric hoists.

16T 18m European Double Girder Electric Wire Rope Hoist

16T 18m European Double Girder Electric Wire Rope Hoist

Type
Wirerope electric hoist
Hoisting (m)
6-30m
Hoisting speed
5m/min
Travel speed
20m/min
Power source
Three-phase AC 380V 50Hz
Working Class
M5
Rope reeving
4/1 6/1 8/2 12/2

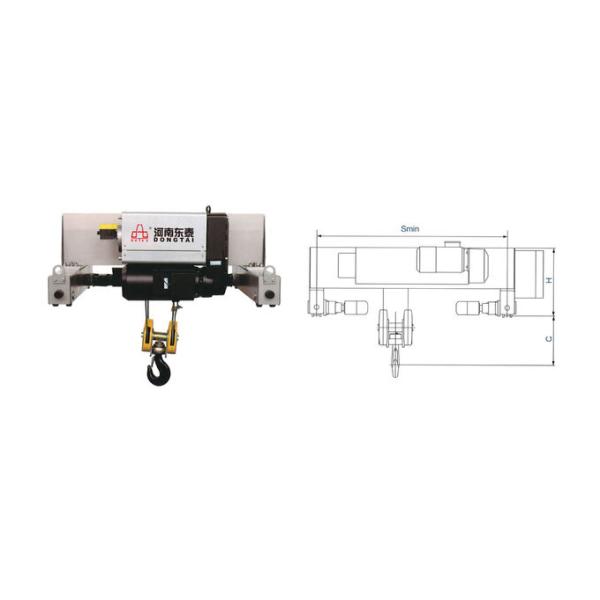

起重量kg 高度m 葫芦代码 起升速度 m/min 起升功率kw 行走速度m/min 行走功率kw 工作级别 行走工作级别 H(mm) C (mm) 适用轨宽B(mm) 重量(kg)
2000 6 LV021413FBLA 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 341
2000 9 LV021413FBLB 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 360
2000 12 LV021413FBLC 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 380
2000 15 LV021413FBLD 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 401
2000 18 LV021413FBLE 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 425
3200 6 LV031413FBLA 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 346
3200 9 LV031413FBLB 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 363
3200 12 LV031413FBLC 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 385
3200 15 LV031413FBLD 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 406
3200 18 LV031413FBLE 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 428
5000 6 LV051415FELA 5/0.8 6.1/1 5/20 37 2M M5 2M M5 260 596 200-350 413
5000 9 LV051415FELB 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 435
5000 12 LV051415FELC 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 462
5000 15 LV051415FELD 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 489
5000 18 LV051415FELE 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 516
6300 6 LV061415FELA 5/0.8 6.1/1 5/20 37 2M M5 2M M5 260 596 200-350 413
6300 9 LV061415FELB 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 435
6300 12 LV061415FELC 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 462
6300 15 LV061415FELD 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 489
6300 18 LV061415FELE 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 516
8000 6 LV082411FHLA 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 814
8000 9 LV082411FHLB 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 846
8000 12 LV082411FHLC 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 890
8000 15 LV082411FHLD 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 934
8000 18 LV082411FHLE 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 978
10000 6 LV102411FHLA 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 814
10000 9 LV102411FHLB 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 846
10000 12 LV102411FHLC 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 890
10000 15 LV102411FHLD 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 934
10000 18 LV102411FHLE 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 978
12500 6 LV122411FJLA 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 814
12500 9 LV122411FJLB 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 846
12500 12 LV122411FJLC 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 890
12500 15 LV122411FJLD 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 934
12500 18 LV122411FJLE 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 978
16000 6 LV163412EKLA 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 400 920 300-450 956
16000 9 LV163412EKLB 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 400 920 300-450 1042
16000 12 LV163412EKLC 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 400 920 300-450 1166
16000 15 LV163412EKLD 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 400 920 300-450 1286
16000 18 LV163412EKLE 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 400 920 300-450 1406
20000 6 LV204412EKLA 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 400 920 300-400 958
20000 9 LV204412EKLB 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 400 920 300-400 1042
20000 12 LV204412EKLC 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 400 920 300-400 1166
20000 15 LV204412EKLD 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 400 920 300-400 1286
20000 18 LV204412EKLE 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 400 920 300-400 1406
8000 20 LV082212EJLUS 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1019
8000 24 LV082212EJLVS 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1060
8000 28 LV082212EJLXS 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1101
8000 32 LV082212EJLYS 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1142
8000 36 LV082212EJLZS 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1183
10000 20 LV102212EKLUS 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1019
10000 24 LV102212EKLVS 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1060
10000 28 LV102212EKLXS 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1101
10000 32 LV102212EKLYS 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1142
10000 36 LV102212EKLZS 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1183
12500 20 LV102412EKLUS 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1019
12500 24 LV102412EKLVS 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1060
12500 28 LV102412EKLXS 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1101
12500 32 LV102412EKLYS 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1142
12500 36 LV102412EKLZS 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1183

DTEH wire rope electric hoist create the greatest value for the customers with the excellent durability, high quality and

cost-effective. DTEH-02 is for double girder overhead travelling and gantry cranes.

DTEH wire rope hoist is designed and manufactured according to FEM European standard and DIN German standard, which

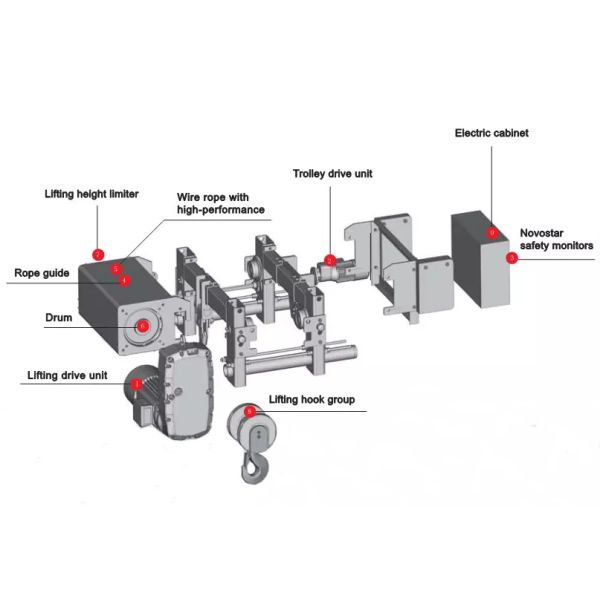

is a new and environment friendly product. The hoist adopts modular C-design. The product provide compact structure,

low headroom, stable lifting operation, accurate positioning. The maximum hoisting load is 20 tons.
