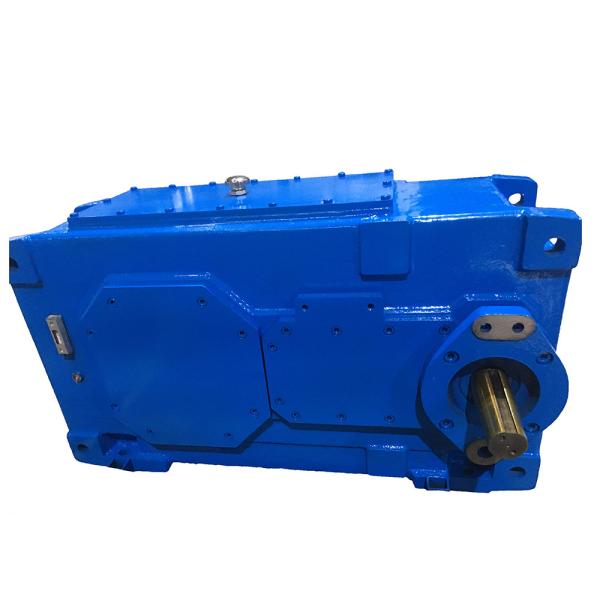

H/B Heavy Duty Gear Reduction Box Industrial Turbine Gearbox Large Torque Drive Power Transmission​

Product description

H/B gear reducer is suitable for high-power motors, with large torque capacity, modular design and multiple output modes. The utility model has the advantages of high efficiency, long service life, bearing large axial force and radial load, low operation noise, high reliability, compact structure, etc. Four series of reducers can be combined to increase the range of ratio.what is the function of a gearbox in wind turbine power generation system

Components

1. Housing: Cast Iron or Steel Plate Welding
2. Gear Set:
H Series Parallel Shaft Gear Units - Helical Gear Pairs
B Series Right Angle Gearboxes - Helical Gear Pairs & Spiral Bevel Gear Pairs
3. Input Configurations: Keyed Solid Shaft Input
IEC-normalized Flange Motor Adaptor

4. Output Configurations:
Single and Double Keyed Solid Shaft Output
Key way Hollow Shaft Output
Spline Hollow Shaft Output
Hollow Shaft Output with Shrink Disc
Hollow Shaft Output with Mounting Flange

Features

- The housing of one size can realize parallel shaft modes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.
- Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.
- Input mode : motor connected flange ,shaft input.
- Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.
Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.
- HB series include sizes 3-26, number of stages is 1-4,ratio is 1.25-450. Combining with WR,S and K series, ratio will be higher.

Advantages

1. More than 25 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services
