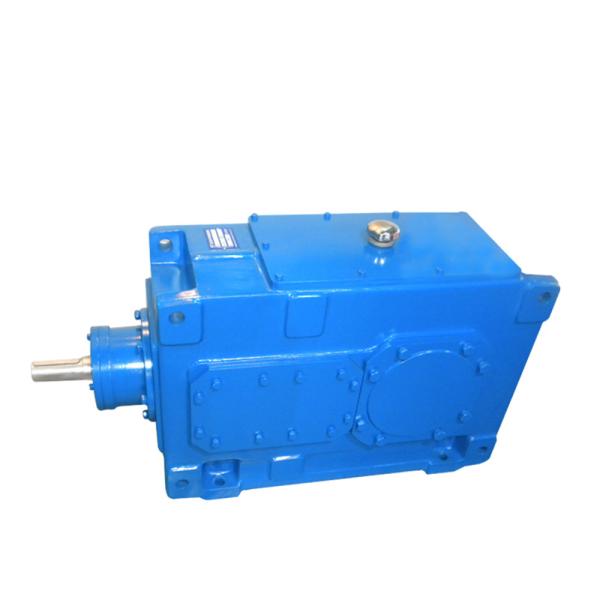

Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Specifications
Brand Name :
DONGTAI
Model Number :
DT-H/B
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T, D/A, L/C
Supply Ability :
1000 sets per month
Delivery Time :
15-25days
Packaging Details :
Wooden case
Product name :
Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox
Application industry :
Building Material Shops, Manufacturing Plant, Machinery Repa
Customized support :
OEM ODM
Gearing Arrangement :
Helical
Output Torque :
470000Nm
Input Speed :
750-1500rpm
Output Speed :
1.7~1200rpm
Mount Position :
Foot Mounted
Description

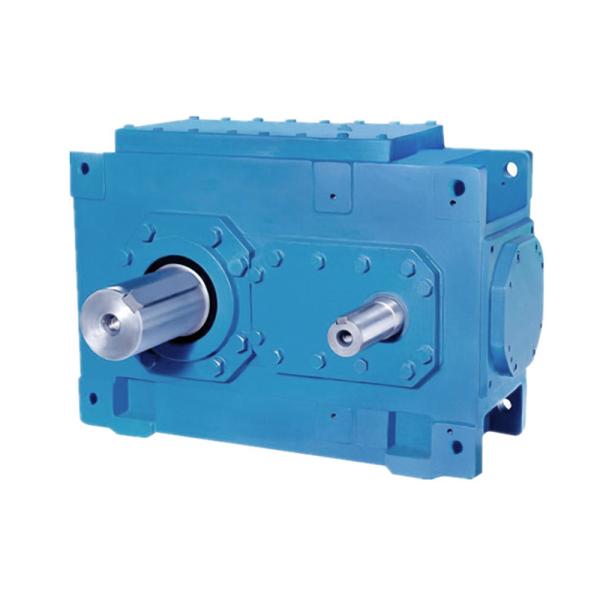

Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox

Product description

Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox

Helical Motor Gearbox Electric Motor 1/20 Ratio Industrial Reduction Gearbox

Specification

Product Name H/B series heavy duty helical gear reducer for wind turbine gearbox large torque speed reductor
Housing Material HT 250 Cast Iron
Gear Material 20CrMnTi
Shaft Material 20CrMnTi
Gear Processing Grinding finish by CNC Grinding Machines
Color Customized
Noise Test Bellow 65dB
Warranty 1 year

Power range:4KW-4823KW

Ratio: 1.25 – 450
Output Speed:1.7-1200rpm
Output torque:2-900KNm
Input speed:750rpm,1000rpm,1500rpm,1800rpm.
Input shaft diameter:30mm-140mm
Output shaft diameter:80mm-420mm
Reduction stage: two stages, three stages, four stages
Mounting way: foot mounted, shaft mounted
Output way: Solid shaft ,hollow shaft, hollow shaft for shrink disk
Weight:190KGS-16500KGS
Oil supply :Dip lubrication ,Forced lubrication
Cooling way: without auxiliary cooling, with fan cooling, with cooling coil,
with fan and cooling coil
Direction of rotation of gear output shaft: CW rotation or CCW
Coating system: Standard coating, finishing coat, for all climatic zones

Features

♦ High quality casting housing.

♦ Unique design for heavy duty condition.

♦ High modular design, flexible installation site.

♦ Compact structure meets the higher torque transmit capacity.

♦ It adopts various cooling and lubricating modes.

Design

♦ Installation:horizontal and vertical

♦ Drive Grade:Single-stage, 2, 3 and 4-stage drives are available

♦ Output Torque:3~900kNm

♦ Drive ratio:1.25 ~450

♦ Efficiency:Single-stage 98%, 2-stage 96%, 3-stage 94%, 4-stage 92%

Technical Data

♦Size H1/B1~H26/B26

♦Output Torque 3~900kN.m
♦Motor Power 0.18~45kw
♦Ratio 1.25 ~450

Industrial Application

♦Power Plant Equipment
♦Metallurgical Industry
♦Metal Forming Machinery
♦Petrochemical Industry
♦Mining Machine
♦Hoisting Machinery
♦Construction Industry
♦Environmental Protection Industry
♦Cable Industry
♦Food Machinery

Type

Stage

Size

Ratio

Nominal Power
(KW)

Norminal Torque
(kN.m)

Output Shaft

Mounting

Helical Gear Units
H Type

Single Stage

3-19

1.25-5.6

34-3,920

2.3-245

S: Solid Shaft
H: Hollow Shaft
D: Hollow shaft for shrink disk
K: Hollow Shaft with involute splines, acc. to DIN5480
F: Flanged shaft
V: Shaft d2 reinforced (on request)

H: Horizontal
M: Horizontal design without feet
V: vertical

Double Stage

4-26

6.3-28

23-3,686

6.3-880

Three Stage

5-26

22.4-112

10-3,618

11.6-900

Four Stage

7-26

100-450

5-1,010

19.6-900

Bevel-Helical Gear Units
B Type

Double Stage

4-18

5-14

46-3,887

6.1-230

Three Stage

4-26

12.5-90

8-3618

5.5-900

Four Stage

5-26

80-400

3-1,259

11.2-900
