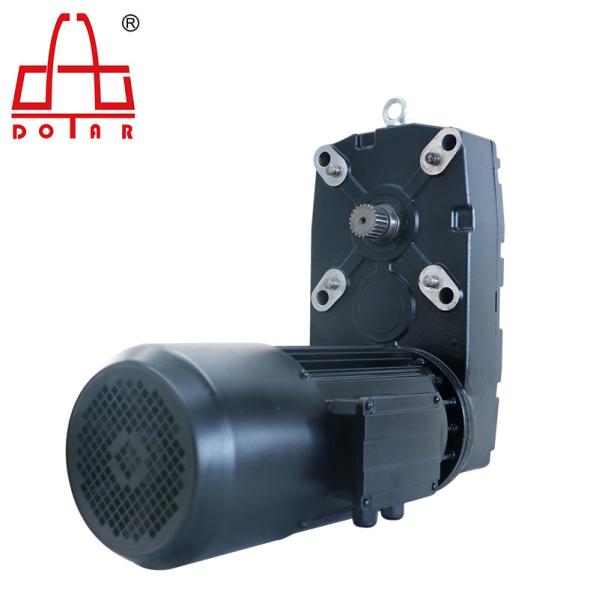

3.2T 40 Ton European hoist drive Cylindrical Speed Reducer For Crane

Product Description

DTQ Hoist drive units from Dongtai Company lift loads between 3.2 t and 40 t with absolute safety and reliability.A compact lifting drive system of wire rope hoist is designed according to FEM standard. Aluminum three-stage parallel shaft gear motor, directly installed on the drum.

High power lifting motor with double side safety brake. Simple assembly through standard interface.

Features

According to FEM standard, a compact lifting reducer of wire rope hoist is designed.

Aluminum motor and gearbox shell,

Light weight and good cooling characteristics,

Three-stage parallel shaft gear reduction,

Direct installation and drum.

Motor:high power lifting motor with double-sided brake.

Assemble:it is connected with the bracket through the standard interface, and the assembly is simple.

Technical parameters

1.Lifting weight: 3ton-40 tons

2. the lifting speed is 0.66-8m / min.

3.output shaft: Din5480 involute spline solid shaft.

4. lifting mode: double speed control / variable frequency control, power 0.45 ~ 38 kW.

5.Drum diameter: 140mm

6.protection grade: Motor IP54, brake IP54

7.the normal working environment temperature of reducer is: - 20 ℃ º C+50 º C

Application

Product advantages

Light weight - low transportation cost and convenient installation

High efficiency - energy saving

Compact design saves space

Long wheelbase for easy installation

Dynamic acceleration characteristics - large starting and limiting torque

Safe braking with double friction surfaces - stable and safe braking

Integrated design of drum bearing support and lifting drive system

Tag:European Electric Hoist, Lifting Drive Unit with Gear Motors, Gear Motor for Crane
