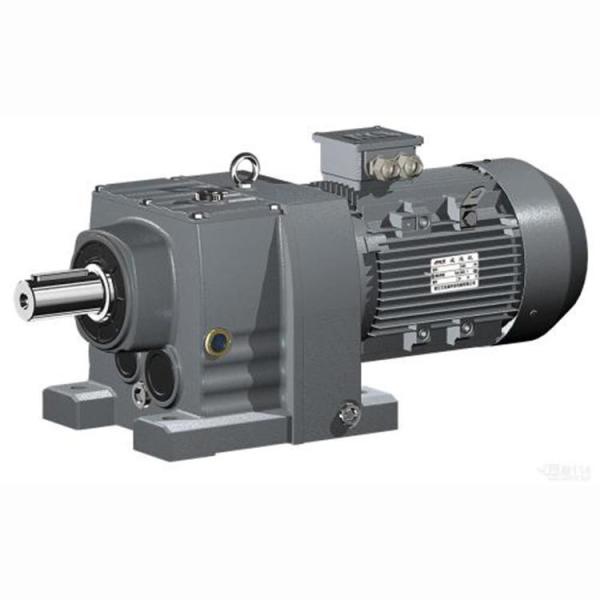

S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
Specifications
Brand Name :
Dongtai
Model Number :
DTS
Certification :
ISO 9001:2016
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 sets per month
Delivery Time :
5-20 days
Packaging Details :
Wooden case, Pallet
Application Industry :
Machinery Repair Shops, Farms, Energy & Mining
Customized support :
OEM, ODM
Gearing Arrangement :
Helical
Output Torque :
800~100000N.m
Input Speed :
1400rpm
Output Speed :
14-280rpm
Ratio :
7.5~100
Mount Position :
Foot Mounted
Bearing :
NSK,LYC
Input power rating :
0.55-7.5
Description

S series Helical Motor Gearbox Coaxial Helical Gearbox with motor

S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor

Features of products
1.The S series helical gear worm motor has a high technological content. It has a helical gear and a worm gear combined with an integrated transmission to improve the torque and efficiency of the machine. This series of products hav complete specifications,
wide speed range, good versatility, adapt to various installation methods, safe and reliable performance and long life, and have implemented international standards.
2.The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise.
3. The machine has good sealing performance and strong adaptability to the working environment.
4. The machine has high transmission accuracy, and is especially suitable for working in occasions with frequent starting. It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position.
5. The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.
6. The reducer can be equipped with various types of motors, forming a mechatronics, which fully guarantees the quality characteristics of the product.
Technical data
Gearing Arrangement
Helical-worm
Output Torque
10–4484 Nm
Input Speed
1400 rpm
Output Speed
0.21-12 r/min
Color
Customizable
Certificate
ISO9001
Structure
SF
Input power rating
0.55-7.5
Ratio
9.96-241.09
Maximum torque
1270
Input Configurations
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
Applicable Motors
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
Output Configurations
Solid Shaft Output
Hollow Shaft Output
nstallation
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication
Oil-bath and Splash Lubrication
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
S Series Helical Motor Gearbox Coaxial Helical Gearbox With Motor
Application
S series solid shaft helical worm 220v ac gear motor gearbox is one kind of Helical worm gearbox ,designed as Modularization and high-stainless cast iron case. It is combination of helical gear and worm gear ,which with higher efficiency and strength than simple aluminum worm gearbox. Due to their outstanding efficiency, these drives can be used in every industrial sector and tailored to individual torque and speed requirements. The gear ratios afforded by the helical-worm gear stage and the low noise levels during operation make these gearmotors ideal low- cost solutions for simple applications
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 4530N.m
3) Motor power: 0.12~22kW
4) Mounted form: foot-mounted and flange-mounted mounting
