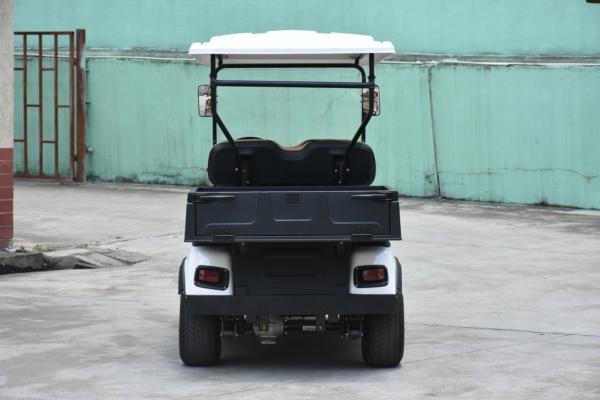

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box
Specifications
Brand Name :
KERID
Model Number :
KRD -G4+1
Certification :
ISO9001, CE
Place of Origin :
CN
MOQ :
2 Units
Price :
USD 4700-5200
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 Units Per Month
Delivery Time :
Within 15 working days after receiving your deposit
Packaging Details :
bulk or steel crate
Passengers :
3-4 persons
Motor :
48V/3KW DC KDS motor
Battery :
8V/6pcs lead acid batteries
Climbing Ability :
30%
Recharge time :
6-8h
Color :
White / Optional Color
Controller :
48V America Curtis Controller
Max speed :
30km/h
Drive mode :
Rear Shaft
Product name :
Club car electric golf buggy
Description

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

Features

1.Global Special LED Headlight
2.Efficient Italy graziano driving axle
3.Advanced Drum Brake Technology
4.100% Waterproof accelerator
5.Comfortable seats
6.Deep Cup Holders

Specification

KRD-G4+1 4 Seats Electric Golf Cart Technical Spec

Loading Capacity 500KG(including cargo)
L*W*H 3690mm×1210mm×1960mm
Box Size 700mm×1100mm×200mm
Max. Range 80-100 km
Min. Clearance 110mm
Min. Braking Distance ≤3.0M
Min. Turning Radius ≤4.0M
Max. Grade Ability 30 %
Charging Time 6-8H
Max. Speed 25－30 km/h
Electrical System Motor:the US imports KDS 48V 3.0KW high efficiency copper coil winding motor with speed sensor to accurately control the speed. Strong overload capability. High temperature resistance and low noise.
Battery: 8V/Pcs*6, large capacity, deep recycle, lead acid batteries.
Charger: computer intelligent automatic high-frequency, high-efficiency pulse type charger, input: 220V AC, 50HZ, output:48V DC 25A. Temperature compensation with battery temperature sensor for extended battery life.
Controller: US imported Curtis controller with personalized programming, CMOS stepless shifting system. The speed of the car can be adjusted according to customer requirements. The controller has its own electromagnetic brake and downhill speed limit function.
Accelerator: Hall-type contactless continuously variable transmission system
Chassis Professional frame type high strength steel plate bending welded chassis. Sandblasting, zinc spraying, baking varnish triple rust-proof treatment.
Body Cover High-strength impact-resistant composite body (PT+PBT alloy injection front cover) with super impact resistance
Rear Axle High-efficiency gear transmission, differential speed ratio 12.31:1, maintenance-free.
Brake System Mechanical drum brake
Front suspension system Multi-piece leaf spring and hydraulic shock absorber system.
Rear suspension system Multi-piece leaf spring and hydraulic shock absorber system.
Steering System Single-stage rack and pinion steering system
Seating System 4 seats PU car seat, artificial leather sofa seat, comfortable ride.
Tire Radial tire 18×8.5-8 vacuum tire
Dashboard US Curtis electricity meter, ignition switch, direction selector switch, water cup position, storage bin.
Cargo box Vacuum rotomolding container(700mm×1100mm×200mm)
Color Make a customization as per your requirements.

Optional colors

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

Detailed Images

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

Packing&shipping

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

Multipurpose 4 Passenger Club Car Electric Golf Buggy With Rear PP Plastic Cargo Box

1. Our products packing ways as per the products feature and order quantity.

2. Nude packing fixed with steel wire for FCL, Steel crate packing/ wooden box packing for LCL.
