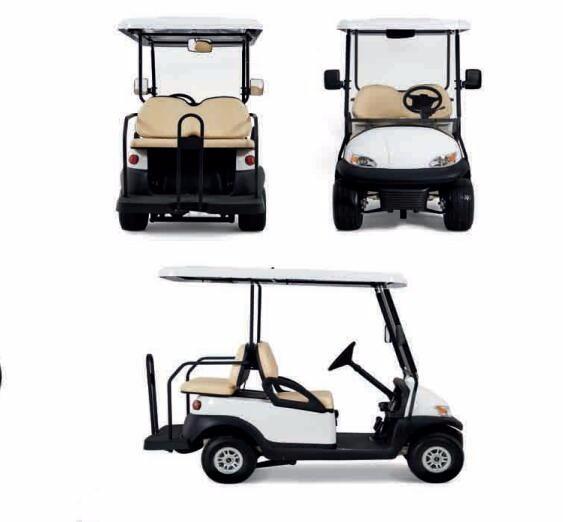

4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
Specifications
Brand Name :
KERID
Model Number :
KRD -G04
Certification :
ISO9001, CE
Place of Origin :
CN
MOQ :
2 Units
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 Units Per Month
Delivery Time :
Within 15 working days after receiving your deposit
Packaging Details :
steel crate
Passengers :
3-4 persons
Controller :
48V
Battery :
8v/6pcs
Max. Speed :
25km/h
F/R Tread :
860/860mm
Climbing Ability :
30%
Description

4 Wheel Fuel Type Battery Operated 4 Passengers Electric Mini Folding Golf Carts With Comfortable Seats

Features

1. Advanced Disc Brake Technology
2. Global Special LED Headlight
3. Italy Graziano Transaxle
4. Curtis Controller
5. Eletromagnetic Brake Makes Driving More Safty
6. 100% Waterproof accelerator

7. Comfortable seats

Description
Golf using special plastic materials, body, high hardness paint layer, shiny, full, toughness, impact resistance ability. The international standard of high strength steel chassis is formed according to the principle of automobile chassis design, engineering plastic frame, the lighter body and enhances the firmness of the vehicle.

Specification

Performance

Passenger capacity 4 seats
Max.Speed 25km/h
Range(loaded) 80km
Climbing Ability(loaded) ≤0.30
Braking Distance ≤2.5m
Min.Turning Radius 3.9m
Min.Clearance 114mm
Recharge time 8~10h

Dimensions

L×W×H 3200×1200×1700mm
F/R Tread 860/860mm
Axle Distance 2490mm
Curb Weight 620kg
Max. loading 360kg

Standard Configuration

Motor 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller 48V/4KW Curtis controller, Special supporting electronic control and stepless speed change system, the controller has lower temperature, greater control current, more stable, more powerful motor, and play the highest efficiency of the motor
Battery Free-maintenance Batteries8V/140Ah*6 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life
Roof Golf special plastic steel ceiling, waterproof, radiation protection, harmful ultraviolet ray
Body High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Windshield See-through Laminated glass,Special golf windscreen
Seats One row toward front,one row toward back, imitation leather fabric + high rebound PU, with handrails, riding comfort
Rear view mirror 2pcs ,manual exterior rearview mirror, comprehensive understanding of road conditions
Painting The whole car used car grade computer professional paint, paint, spraying equipment
Tire Golf Special Alloy Wheel,Vacuum Tire
Chassis Welded tubular steel with rust-proof powder coated paint
Steering Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension The front axle and suspension are independent suspension of the Cylinder hydraulic shock
absorber,Good stability, comfortable, light direction machine, not grinding tires
Rear suspension The rear axle is an integral type rear axle, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight
Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Brake system Golf special - foot brake - brake, simple operation, good safety, high stability
Charger Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ
Dashboard Equipped With the luxury electric door lock, electricity meter

Color Options
4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated

Detailed Images

4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated

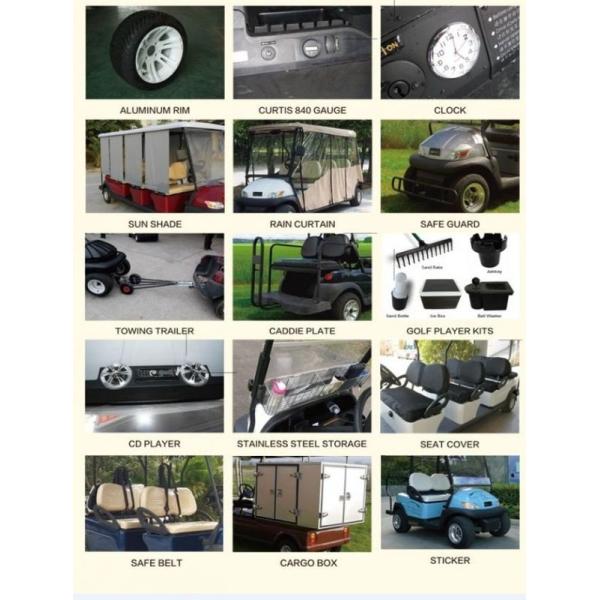

Customization Parts

4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated

Packing&Shipping

4 Person Mini Folding Electric Golf Carts 4 Wheel Fuel Type Battery Operated
