Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
Specifications
Brand Name :
KERID
Model Number :
KRD -G08
Certification :
ISO9001, CE
Place of Origin :
CN
MOQ :
2 Units
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 Units Per Month
Delivery Time :
Within 15 working days after receiving your deposit
Packaging Details :
steel crate
Passengers :
7-8 persons
Controller :
48V
Max. Speed :
25km/h
Braking distance :
less than 4 m
Range :
80km
Warranty :
1 year
Description

Colorful Sticker Electric Buggy Golf Carts Customized Logo With Trojan Acid Battery

Product Advantages

1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.

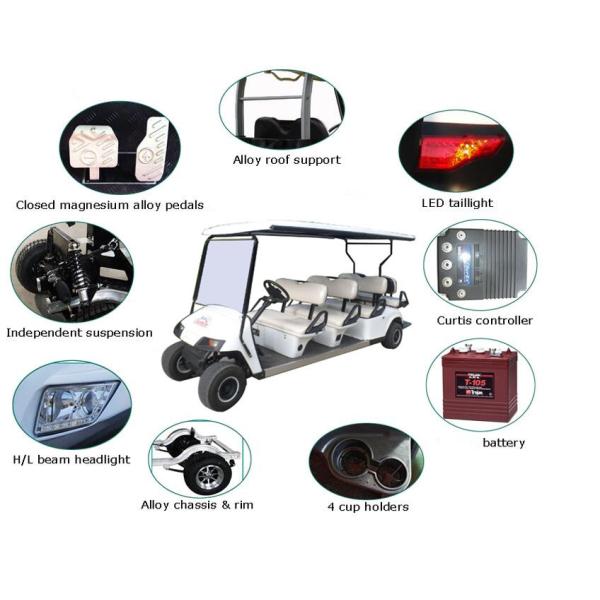

Features Description

1. Global Special LED Headlight

2. Efficient Italy graziano driving axle

3. FR/disc RR/drum, safety golf cart’s higher driving ability

4. Advanced Disc Brake Technology

5. 100% Waterproof accelerator

6. Golf cart, sightseeing car, classic car, patrol car, cargo car, utility car, security series.

7. Deep Cup Holders

8. Option Accessories

Specification

Performance

Passenger capacity 8 seats
Max.Speed 25km/h
Range(loaded) 80km
Climbing Ability(loaded) ≤0.30
Braking Distance ≤4m
Min.Turning Radius 5m
Min.Clearance 150mm
Recharge time 8~10h

Dimensions

L×W×H 4100×1400×1900mm
F/R Tread 900/900mm
Axle Distance 3150mm
Curb Weight 690kg
Max. loading 600kg

Standard Configuration

Motor 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller 48V/4KW Curtis controller, Special supporting electronic control and stepless speed change system, the controller has lower temperature, greater control current, more stable, more powerful motor, and play the highest efficiency of the motor
Battery Free-maintenance Batteries8V/180Ah*6 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life
Roof Golf special plastic steel ceiling, waterproof, radiation protection, harmful ultraviolet ray
Body High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Windshield See-through Laminated glass,Special golf windscreen
Seats The Three rows toward the front,One row toward back , imitation leather fabric + high rebound PU, with handrails, riding comfort
Rear view mirror 2pcs , manual exterior rearview mirror, comprehensive understanding of road conditions
Painting The whole car used car grade computer professional paint, paint, spraying equipment
Tire Golf Special Alloy Wheel,Vacuum Tire
Chassis Welded tubular steel with rust-proof powder coated paint
Steering Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension The front axle and suspension are independent suspension of the Cylinder hydraulic shock
absorber,Good stability, comfortable, light direction machine, not grinding tires
Rear suspension The rear axle is an integral type rear axle, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight
Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Brake system Golf special - foot brake - brake, simple operation, good safety, high stability
Charger Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ
Dashboard Equipped With the luxury electric door lock, electricity meter

Color Options

Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger

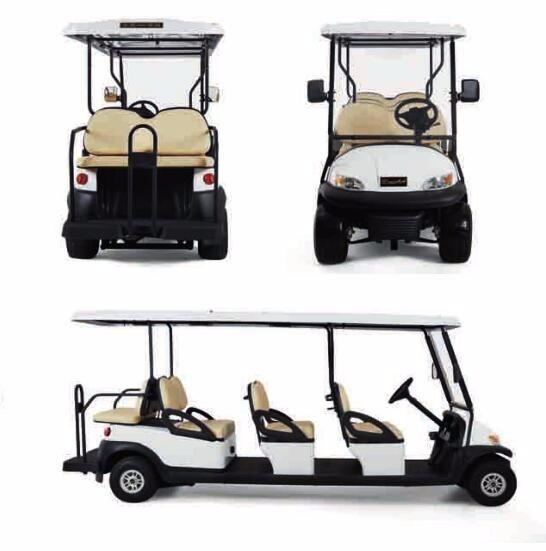

Detailed Images

Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger

Application

Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community, Inside factory,Shopping mall,Musuem,Campus and so on.

Case Display

Custom Street Legal Electric Golf Carts With Trojan Acid Battery For Multi Passenger
