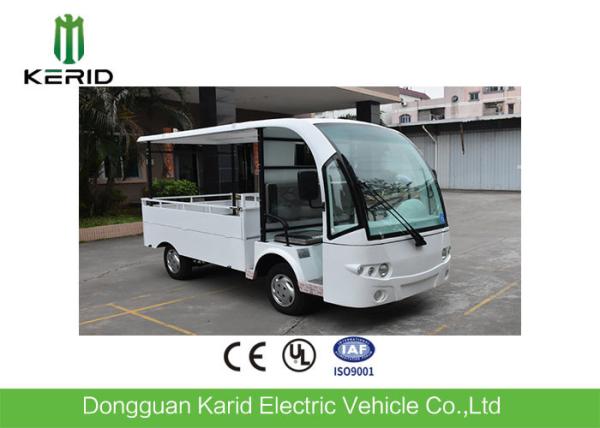

Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
Specifications
Brand Name :
KERID
Model Number :
KRD-V9
Certification :
ISO9001, CE
Place of Origin :
CN
MOQ :
2 UNITS
Price :
Negotiated
Supply Ability :
150 Units Per Month
Delivery Time :
Within 15 working days after receiving your deposit
Packaging Details :
steel crate
Seats :
2 seats
Powertrain :
48V/4kW
Curb weight :
870kg
Max loading :
1000kg
Weight Platform :
2500×1500×400mm
Braking Distance :
Less Than 5m
Max.Speed :
30Km/h
Range(loaded) :
80-100Km
Climbing Ability(loaded) :
LessThan 30%
Recharge time :
8~10h
battery :
6V/180Ah*8 pcs
Payment Terms :
T/T, L/C, Western Union
Description

Free-Maintenance Batteries Powered Electric Cargo Van Max

Loading 1000Kg

Feature Description

1. Good hill climbing ability, the system allows you to customize the car to fit your course.
2. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts.
3. Smart steering system, easy to make forward and backward.
4. B rake system: Rear wheel Mechanical Drum Brake.

Performance

Passenger capacity 2 seats
Max.Speed 30km/h
Range(loaded) 80-100km
Climbing Ability(loaded) ≤0.30
Braking Distance ≤5m
Min.Turning Radius 4m
Min.Clearance 150mm
Recharge time 8~10h

Dimensions

L×W×H 3900×1500×2000mm
F/R Tread 1200/1200mm
Axle Distance 2120mm
Curb Weight 870kg
Max. loading 1000kg
Weight Platform(L×W×H) 2500×1500×400mm

Standard Configuration

Motor 48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller 48V/4KW ENPOWER controller
Battery Free-maintenance Batteries 6V/180Ah*8 pcs,,Large capacity deep cycle power battery, good safety, long life, high service life
Body & Roof High impact fiber glass,,The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Windshield See-through Laminated glass,The car is equipped with special glass car wiper
Seats The one row toward the front, imitation leather fabric + high rebound PU, with handrails, riding comfort
Rear view mirror 2pcs ,Around one manual exterior rearview mirror, comprehensive understanding of road conditions
Painting The whole car used car grade computer professional paint, paint, spraying equipment
Tire Alloy Wheel,Vacuum Tire
Chassis Welded tubular steel with rust-proof powder coated paint
Steering Single reduction rack and pinion ,Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension Patented front axle suspension without grinding tires
Rear suspension The rear axle is an integral type rear axle, seamless steel tube welded axle housing, cold extrusion planetary gear, low noise, durable and reliable. Leaf spring rear suspension, cylinder hydraulic shock absorber can bear more weight
Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Brake system 4-wheel hydraulic drum brake system + handbrake,Front disc, back drum, double circuit hydraulic brake, parking brake device, safety and stability
Charger Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ
Dashboard Equipped with luxury voltmeter, ammeter, electric meter, integrated steering, brake indicator light, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
Container/Packing Box Customizable iron or stainless steel material

Detailed Images

Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg

Battery Powered Electric Cargo Van With 2 Seats Max Loading 1000kg
