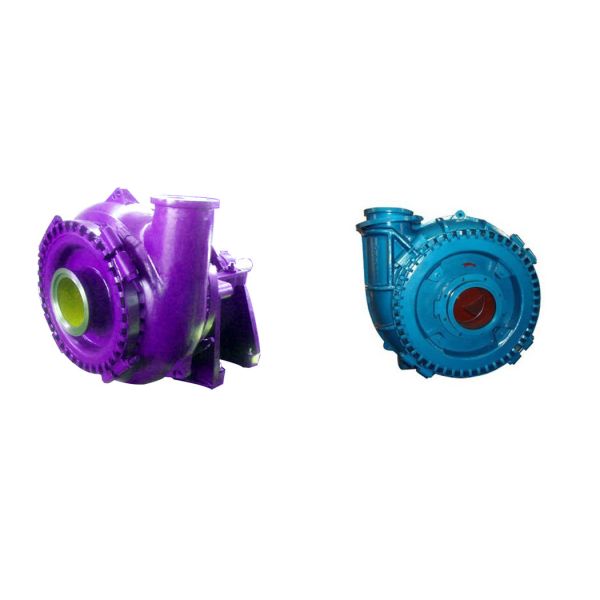

High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
Specifications
Brand Name :
Aier
Model Number :
WN
Place of Origin :
Hebei, China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
100 SETS PER MONTH
Delivery Time :
30-45 days
Packaging Details :
iron frame, wooden case
Material :
High chrome cast iron
Structure :
one-stage
Application :
sand suction, sand dredging, gravel dredging
OEM service :
Availabe
Description

High Chrome Alloy Sand Dredging Gravel Pump of abrasion resistant material high chrome cast iron A05 A49

Sand Dreding Pump

Material Abrasive Resistant High Chrome alloy A05, A49 or As customer's request
Size 4 -16"
Pump Type Single Stage Single SuctionCentrifugal slurry pumps
Drive ZVz / CRz / CV /DC
Power Motor / diesel
capacity 36-4000 m3/h
Head 7-77m
Seal Type Mechanical seal, packing seal , expeller seal
OEM Accepted Yes

Specification:

sand and gravel pump G type sand dredging pump
Model G
Material High Chromium cast iron and customized
Color adjustable
Mode Horizontal
Drive Belt or coupling
Seal Soft packing seal or mechanical seal
Speed adjustable
Usage sand, gravel, slurry, mud
Power Electric
Standard or Nonstandard Standard
Application Dredging, Dewatering, mining
Outlet diameter 4-16 inch
Capacity 36-4300 m³/h
Head 7-77m
Power 4-220 kw
OEM Acceptable

High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage StructureHigh Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure

Part Name Material Specification HRC Application OEM Code

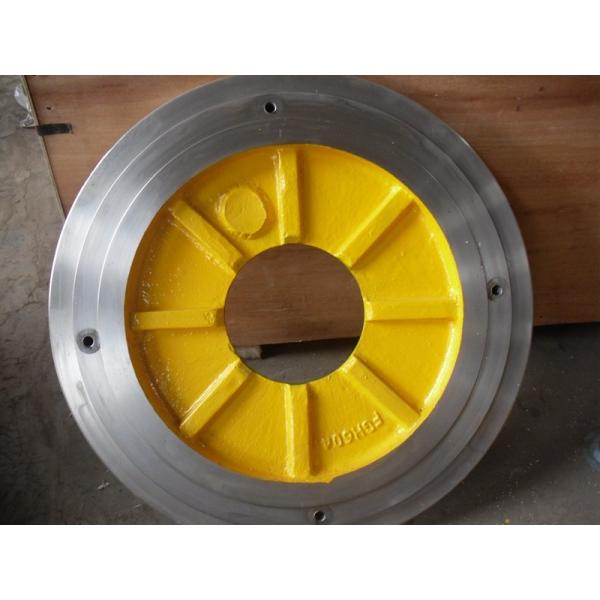

Bowl, door, back liner & impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron 　 It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron 　 　 G01

Application:

1.Sand Dredging pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.

2. Suitable for dredging, mining and metal smelting blast slag delivery, etc

3. Dredge, Sand Reclamation

4. Absorb the sand in the river, lake and sea.

5. Absorb the silt and sand in the reservoir, electric power plant .

6. Absorb the slurry of stone processing plant.

Model Allowable Mating Max Power(kw) Clear Water Performance Max Particle Through Impeller Diameter
Max
Capacity		 Max Head Max Allowed Speed Max Efficiency NPSH
Q(m3/h) H(m) n(rpm) ŋ(%) (m) (mm) (mm)
100WS-D 60 320 52 1400 58 2.5-3.5 82 378
150WS-E 120 790 50 1400 60 3-4.5 127 378
150WSG-F 260 1050 86 1100 71 2-5 140 610
150WSG-S 560 1050 86 1100 71 2-5 140 610
200WS-F 260 900 50 1000 65 3-7.5 178 533
200WS-S 560 900 50 1000 65 3-7.5 178 533
200WS-X 560 900 50 1000 65 3-7.5 178 533
200WSG-S 560 1420 80 950 72 2-5 180 686
200WSG-X 560 1420 80 950 72 2-5 180 686
250WS-G 600 1600 60 850 65 1.5-4.5 220 667
250WS-ST 560 1600 60 850 65 1.5-4.5 220 667
250WSG-G 600 2850 80 700 73 2-10 210 915
250WSG-T 1200 2850 80 700 73 2-10 210 915
300WS-G 600 3650 70 700 68 2-8 241 864
300WS-T 1200 3650 70 700 68 2-8 241 864
350WS-G 600 3600 44 500 70 3-9 254 1016
350WSG-TU 1200 4000 70 500 72 3-6 230 1220
400WS-G 600 4300 50 500 72 3-6 254 1067
400WS-TU 1200 4300 50 500 72 3-6 254 1067
450WS-TU 1200 5400 46 400 68 3-6 330 1270

High Chrome Alloy Sand Dredging Pump , Sand Removal Pump One Stage Structure
