Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
Specifications
Brand Name :
Aier machinery
Model Number :
WG
Place of Origin :
Hebei
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
200 units per month
Delivery Time :
20-30days
Packaging Details :
iron frame or wooden case
Structure :
singe-stage, horizontal
material :
High chrome hard matal
Fuel :
electric
Application :
coal mining, gold mining, mineral process, tailing, metallurgy
Power :
Motor
Description

Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power

PUMP SPECIFICATIONS

SPECIFICATIONS FOR SLURRY PUMP

Performance data

 Capacity m³/h up to 6500
Head m up to 125m
Diameter inch 1--18

Material

 Wet ends High chrome/ Rubber
Casing Cast iron
Shaft Stainless steel

Driven engine

 Electric motor 380V/460V 3 phase
Diesel engine As customer required

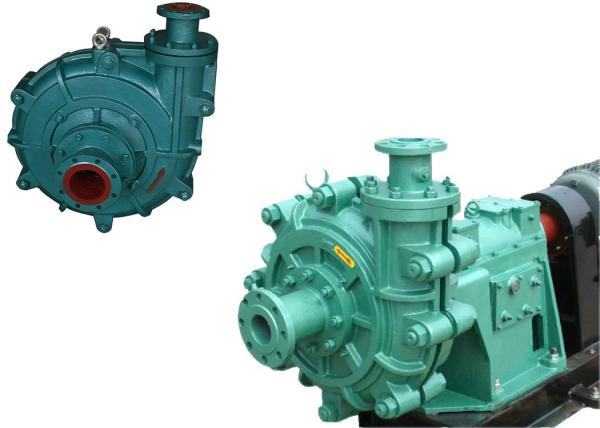

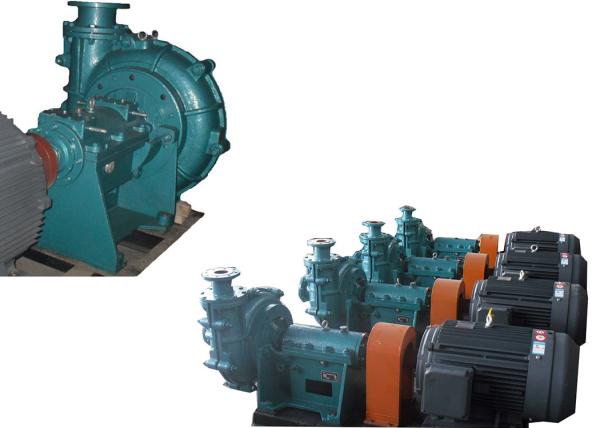

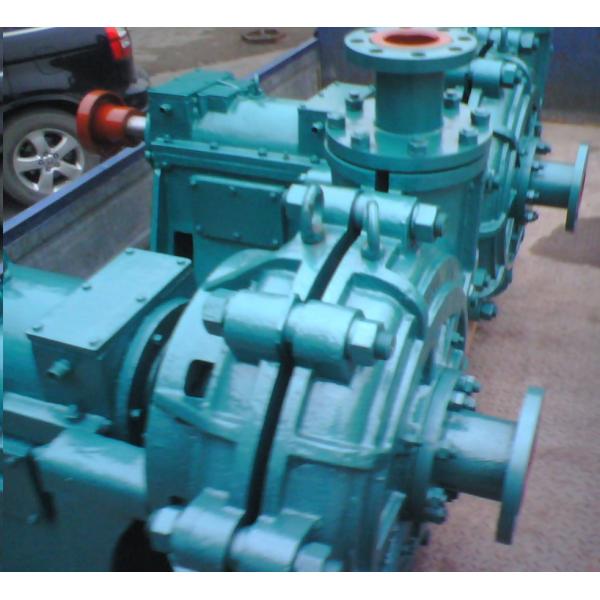

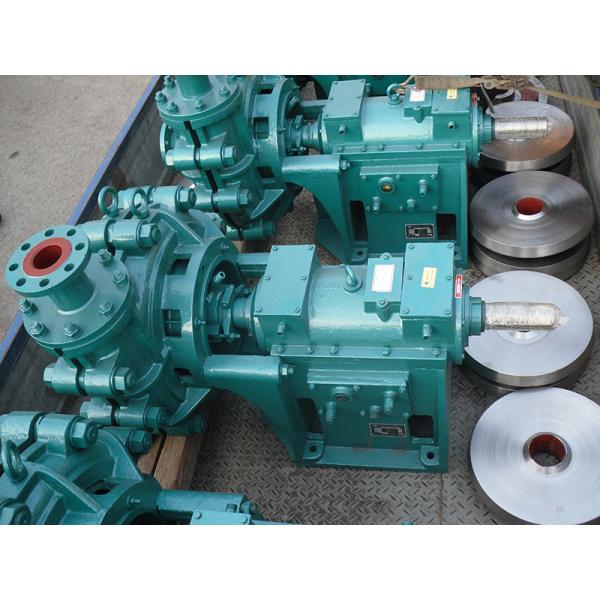

Mineral Processing electric Slurry Pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
Mineral Processing electric Slurry Pumps are manufactured to be interchangeable with the most common slurry pump designs and feature a wide range of options.
Mineral Processing electric Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.

Features:

1. CAD modern design, super hydraulic performance, and lower abrasion rate;

2. High efficiency: up to 81%

3. High head: up to 100 m

4. Wide passage, non-clogging and good performance of NPSH;

5. Expeller seal combined with packing seal and mechanical seal have been adopted to guarantee the slurry from leakage;

6. Reliability design ensures long MTBF (mean time between events);

7. Adopting metric bearing with oil lubrication, reasonable lubrication and cooling systems to ensure the bearing to run on the status of low temperature;

8. The wet parts are made of special material which has good performance of abrasion-resistant and corrosive resistant;

9. The pumps can be used for seawater -removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrsion;

10. The pumps can be installed in series with multi-stage within allowable pressure.

Electric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor PowerElectric Fuel Slurry Pump , Mining Slurry Pump Singe Stage Motor Power
