Iron Mining Slurry Pump parts High Chrome or rubber impeller, liner, frame plate, volute

Centrifugal Industrial Slurry Pump Parts

Products Scope:

Features:

Bearing assembly &nd; a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

Liners &nd; easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomeric. Elastomeric seal rings back all liner joints.

Casing &nd; Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

Impeller &nd; front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throat bush &nd; wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

One-piece frame &nd; a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Slurry pump parts--packing (pump seal)

The sealing method contains packing seal, centrifugal seal and mechanical seal. The packing is usually used for packing seal and centrifugal seal, and our product has different models .Clients are recommended to buy two boxes of packing at one time which are sufficient for one pump

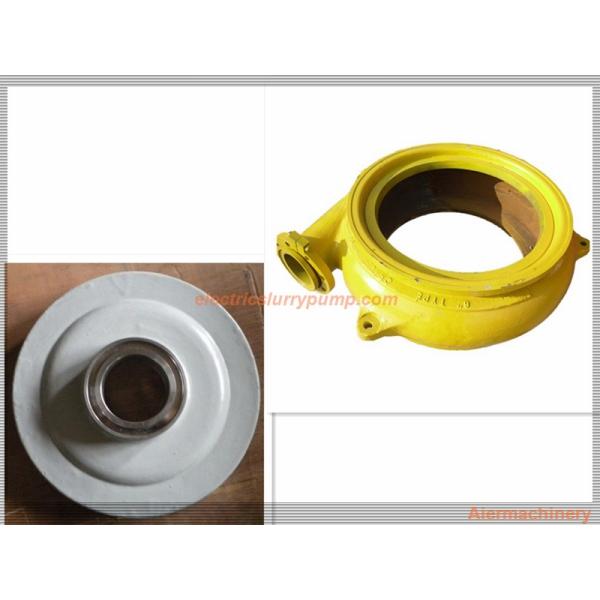

Slurry pump spare pats-Volute liner

This is volute liner for slurry pump with excellent wear resistance, corrosion resistance and large passage area.
Good casing design makes maintenance easily and cost much lower. Advanced heat treat technology is used to treat high chrome alloy and results with a compact micro-structure and a high quality product.

Slurry pump parts-bearing assembly

Bearing assembly uses cylindrical structure, adjusting the space between impeller & front liner easily, being removed completely when being repaired.

Materials:
