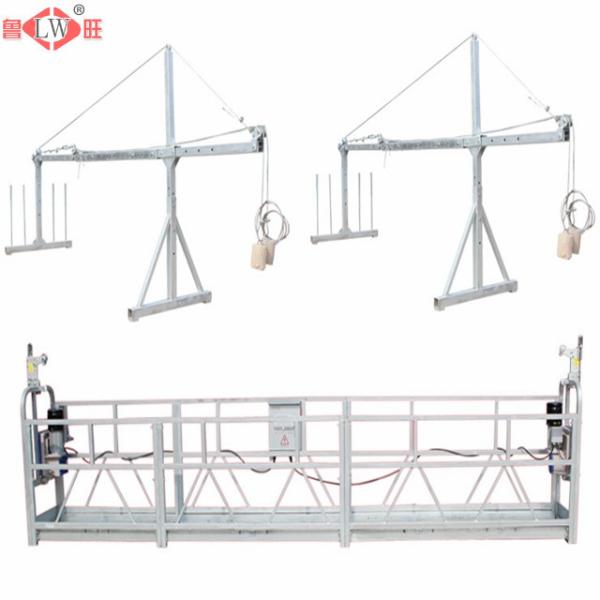

Steel Construction Rope Suspended Platform Gondola Working Platform
Steel Construction Rope Suspended Platform Gondola Working Platform
Steel Construction Rope Suspended Platform Gondola Working Platform
Steel Construction Rope Suspended Platform Gondola Working Platform
Specifications
Brand Name :
Luwang
Model Number :
zlp500
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/month
Delivery Time :
10-25days
Packaging Details :
standard export packing
material :
aluminum/ steel
Surface treatment :
Hot galvanized/ bake paint
Voltage :
Customized
color :
customized
power :
1.1kw
length :
6m
Description

ZLP500 suspended platform:

Rated load:500kg
Lifting height: 50-200m
Lifting speed: 9.3m/min
Material: National standard Q235 steel/ Aluminum alloy
Color: Customized
Surface treatment: Paint/hot galvanized
Platform Dimensiones(L×W×H 6m×0.69m×1.18m
Thickness of steel structure : 2.0mm/2.2mm
Suspension mechanism: Rated
front beam overhang:1500mm
Rated suspension mass: 8KN×2
The width of the cantilever beam to the ground is 1200mm
Maximum spacing of front and rear support is 4600mm
Front beam(L×W×H )): 2300mm×75mm×75mm
2300mm×80mm×80mm Thickness:4.5mm 4.0mm
Middle beam(L×W ×H )): 2300mm×88mm×88mm
2300mm×70mm×70mm Thickness:3.5mm
Rear beam(L×W×H )): 2300mm×75mm×75mm
2300mm×80mm×80mm Thickness:3.5mm
Hoist: LTD5 , Brand: Luwang
Motor power: 1.1kw

Steel Construction Rope Suspended Platform Gondola Working PlatformSteel Construction Rope Suspended Platform Gondola Working Platform
