Specifications
Brand Name :
Delta
Model Number :
CPT-III
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10 days
Packaging Details :
Packed in veneer case
Test Specimen :
Transformer, Circuit Breaker, Protection Relay, Cable, SF6
Item Name :
CPT-III Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument
Functions :
Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument，Test parameters of various kinds of transformer
Applicable Transformer :
CPT-III Analysis Instrument，<110kV, >2.5VA Transformer
Knee Point Voltage :
1kV
Max. Test Voltage :
1kV
Size :
420*330*320mm
Weight :
24kg
Power supply :
AC220V ± 10%, 50Hz/60Hz
Warranty :
One year
Service :
OEM service is available
Description

Electric Testing Equipment for Transformer, Switch, Relay, Cable testing

Delta Technology has a series of equipment for Transformer, Switchgear, Cable, SF6 and Transformer Oil Testing.

Electric Testing Equipment for Transformer, Switch, Relay, Cable testing

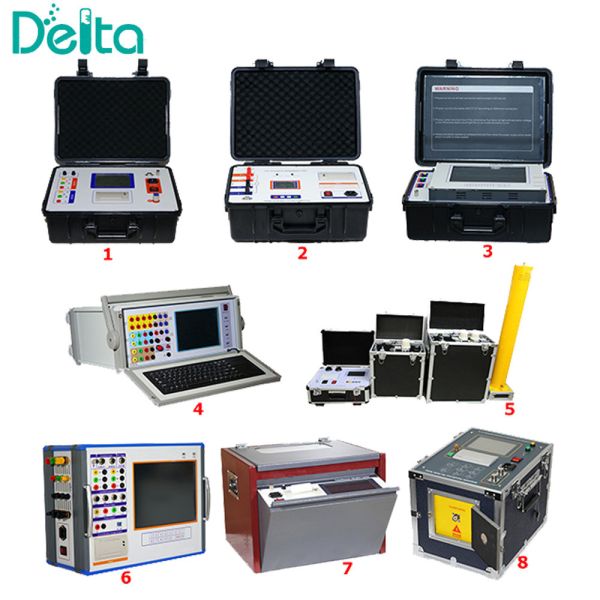

Below are some of our hot sale products,
  1. TTR-I Transformer Turns Ratio TTR Tester;
  2. KFZ Transformer Capacity, Load Loss and No Load Loss Tester;
  3. CPT-III Multi-functional CT PT Analyzer;
  4. PRT-P6 Six Phase Secondary Injection Test Kit;
  5. VLF-80 Very Low Frequency AC Hipot Tester;
  6. CBA-III Multi-functional Circuit Breaker Analyzer;
  7. BDV-A 80kV/100kV Transformer Oil Breakdown Voltage BDV Tester;
  8. TDT Transformer Power Factor / Tan Delta Tester;
Electric Testing Equipment for Transformer, Switch, Relay, Cable testing
Electric Testing Equipment for Transformer, Switch, Relay, Cable testing

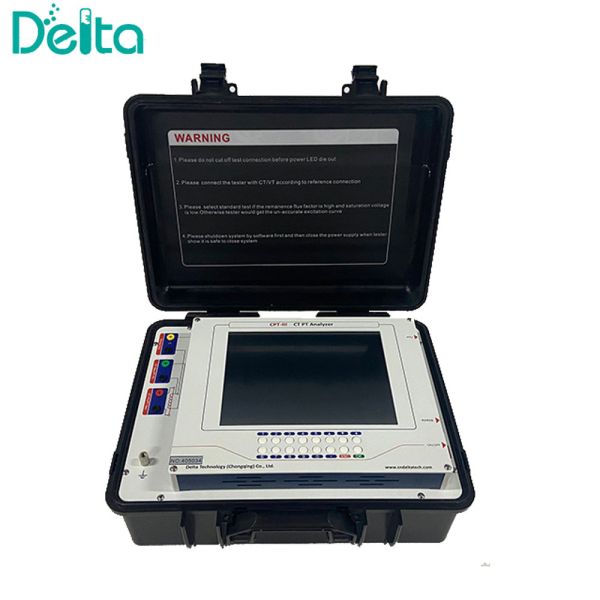

Detailed Introduction of CPT-III CT PT Analyzer

Introduction:

  • CPT-III CT PT Analyzer is a special instrument for testing characteristic of CT and PT.

  • It can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere feature curve drawing and CT error drawing.

  • It has large output, high precision,stable performance and automatic testing.​

Features:

  • CT/PT transformation ratio test

  • CT /PT polarity test

  • CT /PT volt-ampere feature curve measurement

  • CT ratio error measurement

  • Error curve measurement

  • Result print

  • Unload data to PC

  • PC online test

Parameters:

Input voltage

Output scope

Measuring Range

Measuring degree

Device main engine

220V

0～600V

0～20A

0～600V

0～20A

0.5%

380V

0～1000V

0～20A

0～1000V

0～20A

0.5%

220V

0～600A

0～600A

Transformation ratio measuring precision 1%

External voltage raising machine

220V

0～1650V

0～3A

0～1650V

0～3A

0.5%

380V

0～2000V

0～3A

0～2000V

0～3A

0.5%

External current raising machine

220V

0～1000A

0～1000A

Transformation ratio measuring precision 1%

External voltage adjustment machine

0～1000V, 0～30A

0.5%

Device working power

220V/380V 50HZ

External dimensions

420*330*320mm

Weight

24kg
