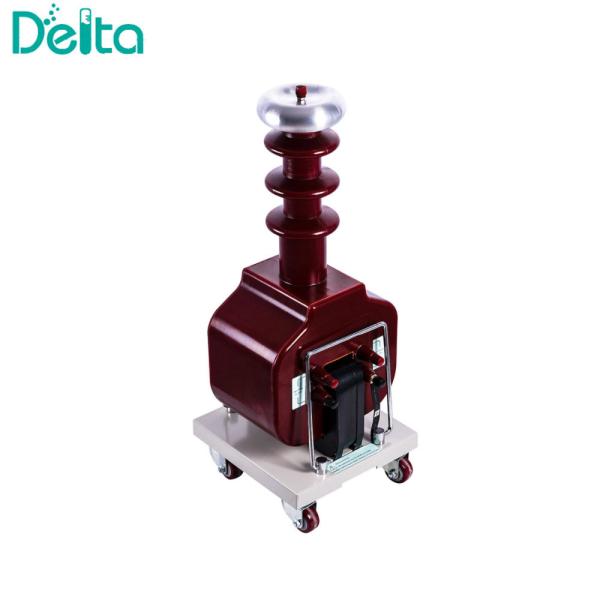

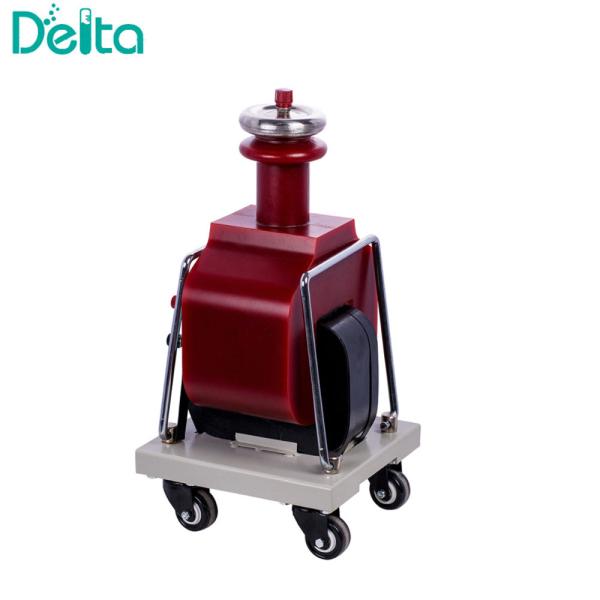

GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
Specifications
Brand Name :
Delta
Model Number :
GTB
Certification :
ISO9001
Place of Origin :
Chongqing, China
MOQ :
1 set AC DC Dry Type Hipot Tester
Price :
USD1.0 / set AC DC Dry Type Hipot Tester
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
Within 10 days after the order is confirmed
Packaging Details :
AC DC Dry Type Hipot Tester is packed in two plywood cases.
Transformer Type :
Dry Type
Output Voltage :
50kv, 100kv
Capacity :
1.5kVA - 30kVA
Application :
Test Insulate Performance of Electrical Equipment
Output Voltage Type :
AC and DC
Impedance Voltage :
4.5%-8%
Output Voltage Waveform :
Sine Wave
Features :
Portable Small Size 100kV AC DC Dry Type Hipot Tester
Iron Core Type :
CD Type
Allowable Continuous Operation Time :
2 Hours
Input Voltage :
200V
Interrupted Operation Time :
Continuous
Language :
English
Delivery Lead Time :
10 Days
Shipping Method :
by Air
Description

GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester

Introduction:
GTB Series Dry Type Hipot Tester uses advanced production equipment, and new technology of coil winding epoxy vacuum pouring and CD-type iron core, which obviously reduces weight and volume, improves insulating strength and humidity resistance level, effectively weakening leakage magnet resulting in greatly enhancing the ability to withstanding the impact of testing short circuit current of the transformer. This series of products are new generation high voltage testing transformers used for AC and DC in China.

Features:

  1. GTB Series Dry Type Hipot Tester has features of light weight, small volume, beautiful appearance, stable performance, convenient usage and carrying, especially suitable for site operation.
  2. The tester is applicable to the power system and all power users to detect on-site the insulating performance test of all electrical equipment, high voltage power sources of all appliance's voltage system, or equipment with DC high voltage small current.


Parameters:

  1. Impedance voltage: 4.5%-8%
  2. Surface temperature rise: sine wave
  3. Idle load loss consumption: 0.2%-0.35%
  4. Allowable continuous operation time: 2 hours
  5. Interrupted operation time: Continuous

Model Capacity
(KVA)		 Input voltage(V) Output voltage(KV) Output current(mA) Output DC high voltage(KV) Max. External dimension(mm) Weight
(kg)
GTB-1.5/50 1.5 200
(400)		 50 30 70kV 230*180*370 13
GTB-3/50 3 60 310*250*570 30
GTB-6/50 6 120 300*310*680 46
GTB-10/50 10 200 320*350*720 73
GTB-20/50 20 400 360*350*720 85
GTB-30/50 30 600 500*380*780 120
GTB-5/100 5 100 50 140kV 360*350*960 80
GTB-10/100 10 100 360*350*960 80
GTB-20/100 20 200 500*380*880 120
GTB-30/100 30 300 580*380*880 160
GTB-50/100 50 500 650*460*1010 230
