BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
Specifications
Brand Name :
Delta
Model Number :
BDV-A
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
1 set
Price :
USD1.0 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets / month
Delivery Time :
Within 10 days after the order is confirmed
Packaging Details :
Packed in plywood case
Test Standards :
IEC60156, ASTM D1816, ASTM D877, Is6792, BS5874
Output Voltage :
AC 0V~100kv
Rate of Voltage Rise :
0.5kv/S, 2kv/S, 3kv/S,5kv/S
Max. Test Times :
9
Stir Time Setting :
0~999s
Waiting Time Setting :
0~999s
Functions :
Measure Breakdown Voltage Bdv of Insulating Oil
Description :
Breakdown Voltage Test Transformer Oil Test Kit
Application Field :
Electrical Industry, Oil Laboratory, etc.
Features :
Economic Type IEC60156 Oil Bdv Test Kit 80kv
Data Storage :
100 Groups
Display :
Digital Display
Power Supply :
AC 220V, 50Hz/60Hz
Delivery Lead Time :
7 Days After The Order Is Confirmed
Shipping Method :
Suggest to Ship by Air or Express
Description

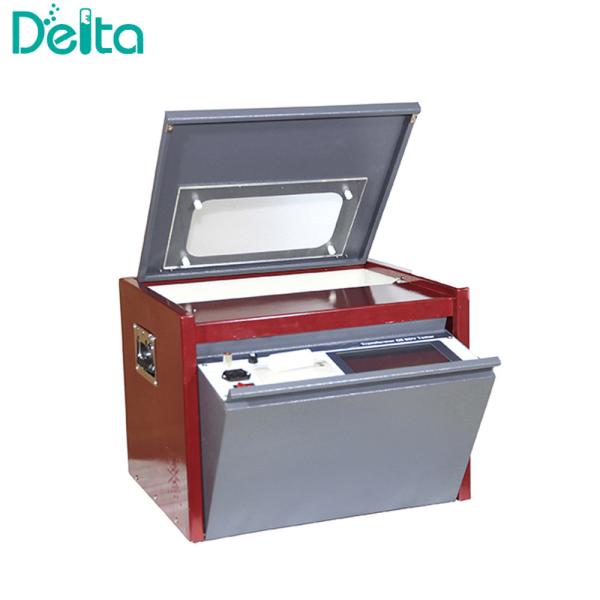

BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit

Introduction:

BDV-A Breakdown Voltage BDV Test Transformer Oil Test Kit is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;

BDV-A Breakdown Voltage BDV Test Transformer Oil Test Kit has large LCD display, micro-printer and can store 100 groups data;

BDV-A Breakdown Voltage BDV Test Transformer Oil Test Kit is multi-functional, stable, and easy for operation.

Parameters:

No. Item Name BDV-A Breakdown Voltage BDV Test Transformer Oil Test Kit
1 Output voltage AC 0V~80KV
2 Rate of voltage rise 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3 Max. test times 9
4 Stir time 0~999s
5 Wait time 0~999s
6 Measurement accuracy ±(1% of full scale + 2 digits)
7 Resolution 0.1KV
8 Temperature measurement range 0°C to 70°C, or better
9 Temperature resolution 1°C, or better
10 Data storage 100 groups
11 Weight 38kg
12 Size 550mm*500mm*580mm
13 Power supply AC220V, 50Hz
14 Working environment Room temperature to 45°C, humidity<85%

Test Modes:

Breakdown test of user-defined
Proof test
IEC60156/IS6792/BS5874 test
ASTM D1816 standard test
ASTM D877 standard test
5 minutes standard test
Manual test
Calibration interface for customers
Uploading data to PC and making word report automatically Result print

BDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test KitBDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test KitBDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test KitBDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test KitBDV-A 80kv 100kv Breakdown Voltage Bdv Test Transformer Oil Test Kit
