Specifications
Model Number :
RPT-I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Single Phase Protection Relay Testing Equipment
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10 days
Packaging Details :
Single Phase Protection Relay Testing Equipment packed in veneer case
Brand Name :
Delta
Item Name :
PRT-I Electronic Over Current Single Phase Protection Relay Testing Equipment
Functions :
Test parameters of single phase relay
Applicable Relay :
Single Phase Relay
DC voltage output :
0~350V
DC current output :
0~10A
Size :
550mm*410mm*340mm
Weight :
33kg
Power supply :
AC220V ± 10%, 50Hz/60Hz
Warranty :
One year
Service :
OEM service is available
Description

PRT-I Single Phase Relay Testing Equipment

Introduction:

  • PRT-I Single Phase Relay Testing Equipment is applied to test protection replay based on voltage and current operation.
  • The main function of the PRT-I Single Phase Relay Testing Equipment include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
  • PRT-I Single Phase Relay Testing Equipment is a low cost, simple operation and reliable performance device for secondary circuit test.

Parameters:

DC voltage output

0~350V continuous adjustable, output capacity:960VA

AC voltage output

0~380V continuous adjustable, output capacity:400VA

DC current output

0~10A continuous adjustable, output capacity:80VA

AC current output

0~10A 0~100A,capacity:1000VA

Volt ampere feature test

voltage 0~240V current 0~5A

AC short circuit voltage analog output

DC voltage selection output(it can be used as the operation power of static relay)

OutputVoltage24V,48V,110V,220V,all the output current is 0.4A

Device precision

0.5 grade

Joint action time test

0~9999s

Resolution

1ms.

Power supply

AC220V+/-10%, 50Hz/60Hz;

Environment temperature

0-50 centigrade;

Size

550mm*410mm*340mm

Weight

33kg

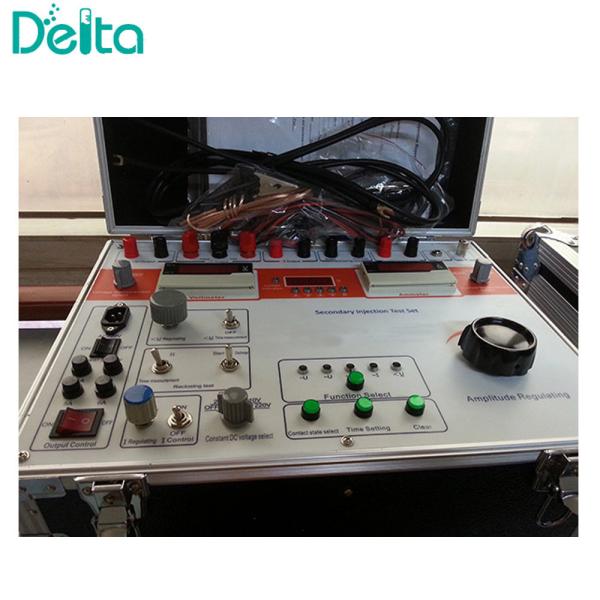

Real Picture:

PRT-I Electronic Over Current Single Phase Protection Relay Testing Equipment
