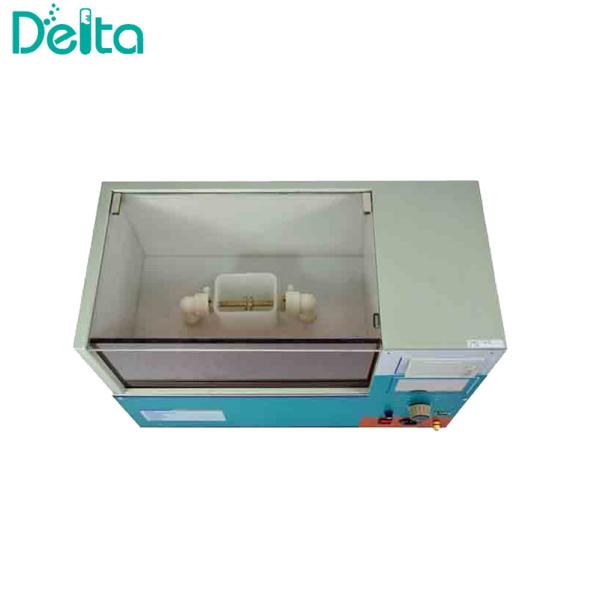

BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
Specifications
Brand Name :
Delta
Model Number :
BDV-II
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 full set of Transformer Oil Test Kit
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets each month
Delivery Time :
3-5 working days
Packaging Details :
Transformer Oil Test Kit packed in veneer cases
Description :
BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
Functions :
Transformer Oil Test Kit is for transformer oil breakdown voltage testing, 100kV
Test objects :
Transformer oil, insulating oil, insulation oil, electric oil, dielectric oil
Features :
100kV, 8 kinds of test modes for choice, stable, reliable, low price Transformer Oil Test Kit
Test voltae :
100kV
Output frequency :
0.1Hz, 0.05Hz, 0.02Hz
Test standards :
ASTM D877, ASTM D1816, IEC60156, IS6792, BS5874
Display :
LCD display
Dimension :
620 mm*430mm*330mm
Weight :
41kg
Power supply :
AC220V ± 10%, 50Hz/60Hz
Warranty :
One year
Description

ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit

Model: BDV-II

BDV-II Transformer Oil Test Kit:

  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit has large LCD display, micro-printer and can store 100 groups data;
  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is multi-functional, stable, and easy for operation.

​


BDV-II Transformer Oil Test Kit Functions:

  • Breakdown test of user-defined
  • Proof test
  • IEC60156/IS6792/BS5874 test
  • ASTM D1816 standard test
  • ASTM D877 standard test
  • 5 minutes standard test
  • Manual test
  • Calibration interface for customers
  • Uploading data to PC and making word report automatically
  • Result print

BDV-II Transformer Oil Test Kit Specifications:

1 Output voltage AC 0V~100KV
2 Rate of voltage rise 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3 Max test times setting for user-defined mode 9
4 Stir time setting for user-defined mode 0~999s
5 Waiting time setting for user-defined mode 0~999s
6 Test error 3%RDG+0.3%FS
7 Display 256´128 LCD
8 Maximum storage capacity 100 groups of test data
9 Power supply AC220V±10%, 50Hz/60Hz
10 Working environment 0-50℃, ≤80%RH
11 Size 620*430mm*330mm
12 Weight 41kg

BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test KitBDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
