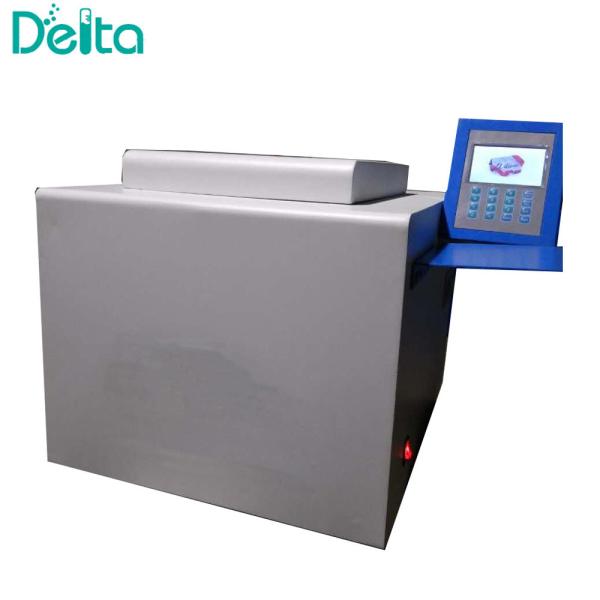

CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
CVT Isoperibol Oxygen Bomb Calorimeter for Coal Feed Oil Building Material Testing
Specifications
Brand Name :
Delta
Model Number :
CVT
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
1 set
Price :
USD1.0 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets / month
Delivery Time :
Within 10 days after the order is confirmed
Packaging Details :
Packed in wooden case
Application :
Measures Calorific Value of Coal, Feed, Petro
Application Field :
Coal, Feed Energy, Petroleum Products...
Description :
Isoperibol Oxygen Bomb Calorimeter
Reference Standards :
ISO1716, ASTM D240, ASTM D5865
Features :
Digital Display Isoperibol Oxygen Bomb Calorimeter
Heat Capacity :
10000j/K
Bomb Volume :
300+/-50ml
Inner Cylinder Volume :
2000ml
Test Time :
<15min
Repeatability :
60(J/K)
Packing Dimension :
75*65*60cm
Gross Weight :
55kg
Power Supply :
220V, 10A, 50Hz
Delivery Lead Time :
10 Days
Trade Term :
EXW, Fob, DDU, CNF, CIF, etc.
Description

CVT Isoperibol Oxygen Bomb Calorimeter for Coal, Feed, Oil, Building Material Testing

Introduction:

Gross heat of combustion of materials is an important parameters to evaluate building materials heat release and fire base data;

CVT-I Isoperibol Oxygen Bomb Calorimeter is the most common device for measuring the heat of combustion or calorific value of material by putting the specimen into the oxygen cell.

Our CVT Isoperibol Oxygen Bomb Calorimeter is designed and manufactured as per GB/T14402-2007 and ISO1716 standards, which is suitable for calorific value of building materials testing.

CVT-I Isoperibol Oxygen Bomb Calorimeter is stable, high accurate and easy for operation.

Parameters:

Item Name CVT-I Isoperibol Oxygen Bomb Calorimeter
Heat capacity 10000J/K
Temperature range (4.5-50)ºC
Bomb volume 300±50ml
Inner cylinder volume 2000ml
Stirring speed 375r/min
Stirring power 3W
Stirring method Motor directly inserted into inner cylinder for mixing
Oxygen bomb sealing no leakage under 3.0-3.5MPa
Oxygen bomb withstand pressure 21MPa
Test time <15min
Timer accuracy 0.5s
Repeatability ≤60(J/K)
Power supply AC220V±10%, 50Hz

Features:

Adopt American advanced embedded technology, 7-inch large-screen color touch screen operation, and integral installation method to ensure the firmness of the touch screen.

CRT Material makes the touch screen more durable.

Direct operation, without external computer, which is convenient for use.

Automatic water injection, no need to adjust the water temperature, just install the aerobic bomb into the barrel, and the instrument can automatically do all tests. With fault diagnosis function and built-in reminder will remind whether the ignition is successful.

Using special foam insulation technology, it is not affected by external temperature during the experiment.

Heat capacity repeatability≤0.2%, precision <0.1%, temperature resolution 0.0001K.

Reasonable structure, reliable performance, low failure rate, high precision, easy installation and maintenance
