Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Petroleum Products Tester for Transformer Oil Water Content Testing
Specifications
Brand Name :
Delta
Model Number :
KF
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100 sets each month
Delivery Time :
3-7 days

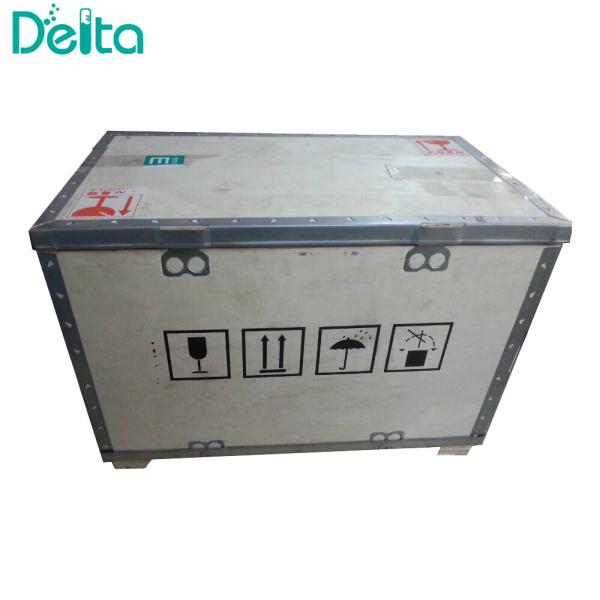

Packaging Details :
Packed in veneer case.
Description :
Petroleum Products Tester for Transformer Oil Water Content Testing
Other name :
Karl Fischer Titrator
Application :
Measure water content, moisture in transformer oil, liquid, solid and gases
Features :
PPM level, low price, high quality
Test method :
Coulometric method
Measuring range :
3ug to 200 mg water
Water content range :
3ppm-100%
Dimension :
320 * 240 * 180mm
Weight :
6kg
Warranty :
1 year
Description

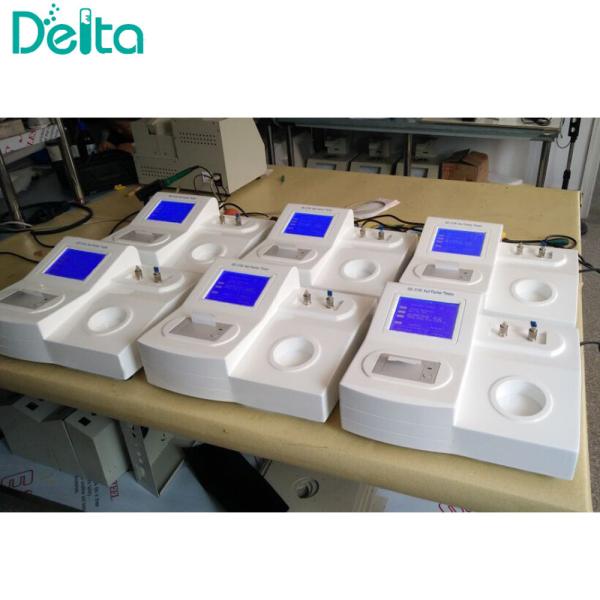

KF Petroleum Products Tester for Transformer Oil Water Content Testing

Introduction:

KF adopts Karl Fischer Coulometric method.

KF has the advantages of high testing accuracy, good repeatability, low testing cost etc.

KF is used to accurately test trace water content in various liquids, solids, and gases.

It is widely applied to petroleum, chemical engineering, pharmacy, electricity, scientific research, education department and so on.

Specifications:

No. Item Name KF Petroleum Products Tester for Transformer Oil Water Content Testing
1 Measuring range 3ug to 200 mg water
2 Water content range 3ppm-100%
3 Resolution 0.01 ug water
4 Accuracy 10μg-1mg water, ± 0.2%; >1mg water, < ± 0.3%
5 Electrolysis speed max 2.4 mg/min
6 Electrolytic current 0 ~ 430 mA
7 Working environment 5 ~ 35 ℃; Humidity: ≤85%
8 Dimension&Weight 320 * 240 * 180mm, 6kg
9 Power supply AC 220V ± 10%

Features:

● Intelligent Determination

Powerful new-generation processor; dual-CPU design.

Dual power channels separate electrolytic electrode and measuring electrode; automatically removing all kinds of interference; greatly improving the accuracy of test results.

Measuring electrode data directly A / D sample converting; data true value avoids errors caused by analog circuit; results more accurate.

● Easy Operation

Touch-screen operation; only pressing once then the test will be done automatically and the reported values will automatically display.

● Background Compensation

Large current background compensation. Standby time can be shortened to be less than 10 minutes.

● Rotating Speed Control

Software adjusting stirring speed; selection between 0 to 36.

● End Point Indication

Character tips and buzzer

● Perfect Calculating Function

Automatically display, calculate, print ug / ppm / percentages / mg/L / sample name / test date etc.

● Automatic Date Storage

Year, month, day, hour, minute, second; automatic storage when power off.

Petroleum Products Tester for Transformer Oil Water Content Testing

Petroleum Products Tester for Transformer Oil Water Content TestingPetroleum Products Tester for Transformer Oil Water Content Testing
