BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
Specifications
Model Number :
BDV-A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Transformer Oil Breakdown Voltage BDV Tester
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets Transformer Oil Breakdown Voltage BDV Tester per month
Delivery Time :
10 days
Packaging Details :
Transformer Oil Breakdown Voltage BDV Tester packed in veneer case.
Item Name :
BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
Functions :
Transformer Oil Breakdown Voltage BDV Testing
Test voltage :
0-80kV
Features :
ASTM D877 ASTM D1816 IEC156 standard China made low price Transformer Oil Test Kit
Rate of voltage rise :
0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
Test standards :
ASTM D1816, ASTM D877, IEC60156, IS6792, BS5874
Size :
550 mm*500mm*580mm
Weight :
38KG
Power supply :
AC220V ± 10%, 50Hz/60Hz
Warranty :
One year
Service :
OEM service is available
Description

BVD-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester

Introduction:

  • BDV-A Transformer Oil Breakdown Voltage BDV Tester is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
  • The oil test vessel with temperature measurement unit, so it can detect oil temperature;
  • With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
  • BDV-A Transformer Oil Breakdown Voltage BDV Tester has large LCD display, all the selection can be done by touch panel with color LCD;
  • BDV-A Transformer Oil Breakdown Voltage BDV Tester also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
  • BDV-A Transformer Oil Breakdown Voltage BDV Tester is multi-functional, stable, and easy for operation;



Functions:

  • Breakdown test of user-defined
  • Proof test
  • IEC60156/IS6792/BS5874 test
  • ASTM D1816 standard test
  • ASTM D877 standard test
  • 5 minutes standard test
  • Manual test
  • Calibration interface for customers
  • Uploading data to PC and making word report automatically.
  • Result print

Parameters:

No.

 Item Name

1

Output voltage

AC 0V~80KV

2

Rate of voltage rise

0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%

3

Max. test times

9

4

Stir time

0~999s

5

Wait time

0~999s

6

Measurement accuracy

±(1% of full scale + 2 digits)

7

Resolution

0.1KV

8

Temperature measurement range

0°C to 70°C, or better

9

Temperature resolution

1°C, or better

10

Data storage

100 groups

11

Weight

38kg

12

Size

550 mm*500mm*580mm

13

Power supply

AC220V, 50Hz

14

Working environment

Room temperature to 45°C, humidity<85%

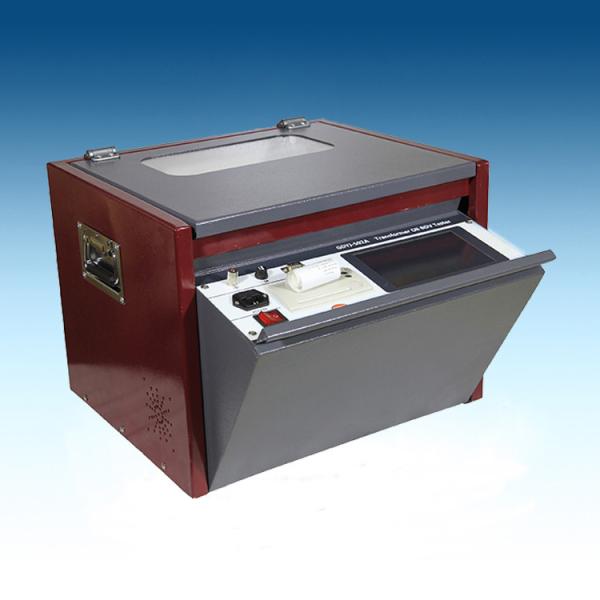

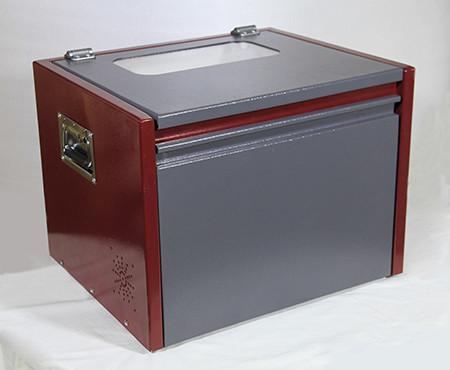

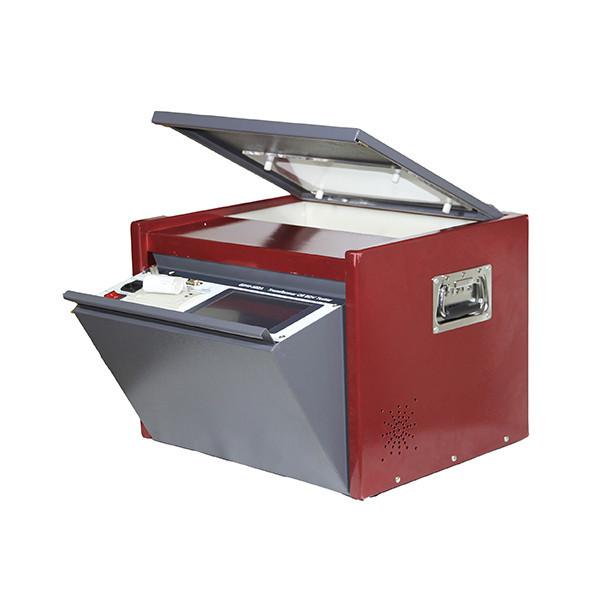

Real Picture:

BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester

BDV-A Automatic 100kV Transformer Oil Breakdown Voltage BDV Tester
