CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
Specifications
Brand Name :
Delta
Model Number :
CBA-I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Switchgear Tester
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
1000 sets/month
Delivery Time :
3-7 days
Packaging Details :
Low Voltage Switchgear Tester packed in veneer case
Description :
CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
Functions :
For high voltage switches testing. Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
Features :
intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
Test object :
Indoors or outdoors switches, vacuum switches, SF6 switches and so on
Time test :
0 to 6 seconds
Distance test :
0-1000mm
Power supply :
220V, 50Hz
Size :
400mm*350mm*200mm
Weight :
7kg
Warranty :
1 year
Description

CBA-I Outdoor/ Indoor High Voltage/Low Voltage Swithgear Tester

Introduction:

  • CBA-I High Voltage Switchgear Tester is designed for high voltage switches testing.
  • CBA-I High Voltage Switchgear Tester adopts micro controller unit(MCU) to control the testing process.
  • CBA-I High Voltage Switchgear Tester is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
  • CBA-I High Voltage Switchgear Tester can test following switches: indoors or outdoors switches, vacuum switches, SF6 switches and so on.

Major Testing Parameters and Functions:

  • Opening and closing time of 12 contacts
  • Re-closing time
  • Asynchronous of closing or opening time of three phases
  • Opening and closing speed
  • Tripping time and amplitude
  • Average speed of opening and closing
  • Display and print the speed-distance curve

Specifications:

No. Item Name CBA-I Indoor, outdoor High Voltage Switchgear Tester
1 Time measurement Number of contacts to be measured ≤12
Time setting range 0 to 6 seconds
Resolution 0.1ms
Error of time measured ±1%
2 Distance measurement Range <1000mm
Resolution 1mm
Error ±1%
3 Operating conditions Power supply AC220V±10%, 50HZ/60HZ
Power consumption ≤60W
Working environment temperature 0~40℃
Working environment humidity ≤90%RH
4 Size and weight Size of the tester 400mm*350mm*200mm
Net weight 7kg

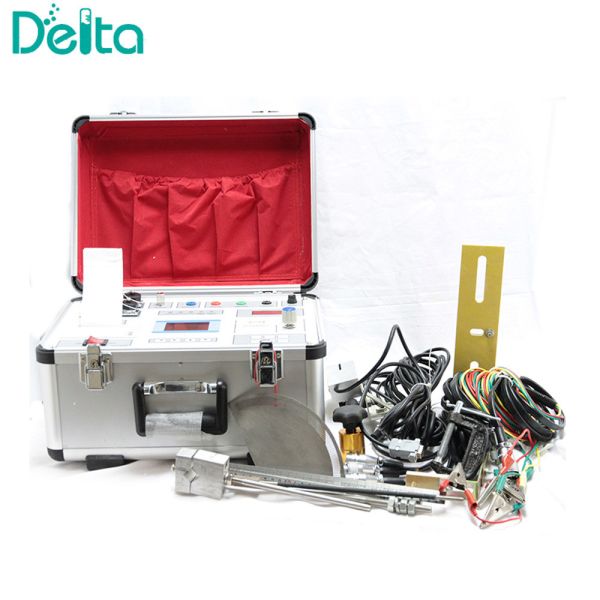

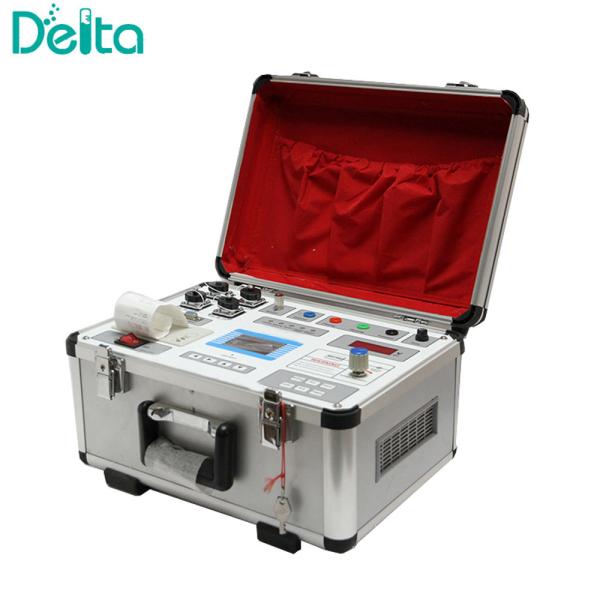

CBA-I Swithchgear Tester Show:

CBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear TesterCBA-I Outdoor High Voltage, Indoor Low Voltage Switchgear Tester
