JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
Specifications
Brand Name :
Delta
Model Number :
JF-2004
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD1.0
Payment Terms :
T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
JF-2004 Transformer Partial Discharge Detector packed in veneer case
Item Name :
JF-2004 China Made Good Quality Transformer Partial Discharge Detector
Function :
Detect Partial Discharge of Gis, Transformer, etc.
Application field :
Electric industry
Reference standards :
9031809090
Dimension :
600(W)*310(D)*545(H)mm
Weight :
0.4kg
Packing mode :
Veneer case
Warranty period :
1 year
Service :
Installation and commissioning service is available
Description

JF-2004 China Made Good Quality Transformer Partial Discharge Detector

Introduction:

  • JF-2004 China Made Good Quality Transformer Partial Discharge Detector is used for the detection and evaluation of the insulation status of high-voltage switchgear, ring network cabinets, transformers, GIS, overhead lines, cable terminals, cable branch boxes and other equipment.
  • Partial discharge intensity detection: By measuring the discharge signal within a power frequency period, the intensity of partial discharge is characterized according to the maximum value (dB) in the discharge pulse sequence.
  • Partial discharge frequency detection: The device measures the discharge signal within a power frequency period, extracts discharge pulses and characterizes the frequency of partial discharges according to the number of discharge pulses.

Standards:

  • ASTM: ASTM D2863
  • ISO: ISO 4589-2
  • NES: NES 714

Application Field:

  • Building Materials;
  • Wire&cable;
  • Upholstered furniture;
  • Others;

Features:

  • Configure different sensors to realize partial discharge detection of almost all electrical equipment;
  • Humanized man-machine interface facilitates data management of different devices, including traceback of historical data change trends, horizontal and vertical data analysis, and realizes 360 ° comprehensive diagnosis of the device under test;
  • Built-in ultrasonic sensors and transient ground voltage (hereinafter referred to as TEV) sensors, which can be connected with special sensors such as transformers, GIS, overhead lines and cables;
  • Adopt non-intrusive detection method, no power failure during the test, maybe no high voltage source is applied, which is more convenient to use than traditional pulsed partial discharge detector;
  • The test bandwidth range is 30kHz ~ 2.0GHz, suitable for the detection principle of various frequency bands;

Parameters:

Item Name JF-2004 Portable Switchgear and Transformer Partial Discharge Detector
Measuring range 0-60 dBmV
Resolution ±1dB
Maximum pulse per cycle 1400
Measurement frequency 3~100MHz
Display 4.0 inch RGB LCD screen
Controller ARM
Connector USB interface (also charger input) 3.5mm stereo headphone jack
External ultrasonic sensor input wireless wifi Wireless synchronization benchmark
SD card standard 16G
Earphone minimum 8 ohm
Humidity 20-85% relative humidity
Weight 0.4KG(host)

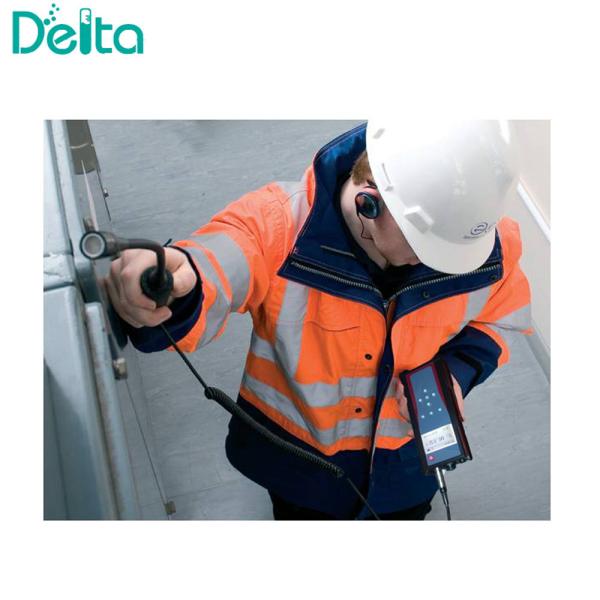

JF-2004 China Made Good Quality Transformer Partial Discharge Detector Picture:

JF-2004 China Made Good Quality Transformer Partial Discharge DetectorJF-2004 China Made Good Quality Transformer Partial Discharge Detector
