Oltc Automatic Transformer on Load Tap Changer Tester
Oltc Automatic Transformer on Load Tap Changer Tester
Oltc Automatic Transformer on Load Tap Changer Tester
Oltc Automatic Transformer on Load Tap Changer Tester
Specifications
Brand Name :
Delta
Model Number :
OLTC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Relay Tester
Price :
USD1.0
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100 sets each month
Delivery Time :
10 days
Packaging Details :
Oltc Automatic Transformer on Load Tap Changer Tester packed in veneer case
Item Name :
Oltc Automatic Transformer on Load Tap Changer Tester
Description :
Automatic Transformer on Load Tap Changer Tester
Functions :
Test Various Parameters of on Load Tap Changer
Features :
Automatic Transformer on Load Tap Changer Tester
Current Source Charge :
3A/1A, 0.6A/0.2A
Power Supply :
AC 220V, 50Hz/60Hz
Temperature :
-10-40°C
Humidity :
<85%RH
Origin :
China Mainland
Description

Oltc Automatic Transformer on Load Tap Changer Tester

Introduction:

OLTC Automatic Transformer On Load Tap Changer Tester can record switch operation waveform in overall process. The longest time is 6.4s.

OLTC Automatic Transformer On Load Tap Changer Tester can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically.

OLTC Automatic Transformer On Load Tap Changer Tester has power-off protection, over-voltage protection, perpetual clock and high-speed printing.

Features:

Test transformers of type Y0 Y Δ and display resistance value directly.

Automatically analyze waveform fault and mark the fault.

Automatically adjust resistance value and time range according to sampling data.

Transformer type Δ is able to display to synchronization status of three phase.

Be able to test with winding or without winding.

Four terminal connection mode and provide high accuracy of resistance measurement.

Continuous test to save time of power off.

Make word report.

800×480 colorized LCD with touch screen and high speed printer.

Store 1000 groups of data and also can be saved by USB flash disk.

Parameters:

me OLTC High Quality Electrical Testing on Load Tap Changer Tester Oltc
Three phase constant current source charge Three phase constant current source charge
Maximum voltage of the port 24V
Maximum range of transition resistance 100Ω
Measuring range 1A: 0.4Ω~20Ω 0.2A: 10Ω~100Ω
Record time of waveform 300ms
Sample rate 30k
Resolution of time 0.1ms
Resolution of resistance 0.1Ω
Accuracy of transition resistance ±5% Reading±0.1Ω
Accuracy of transient time ±0.5% Reading±0.2mS
Temperature -10-40°C
Humidity <85%RH

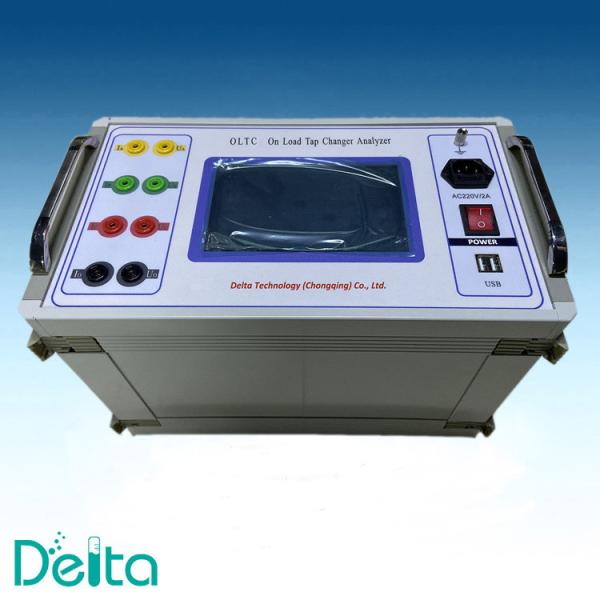

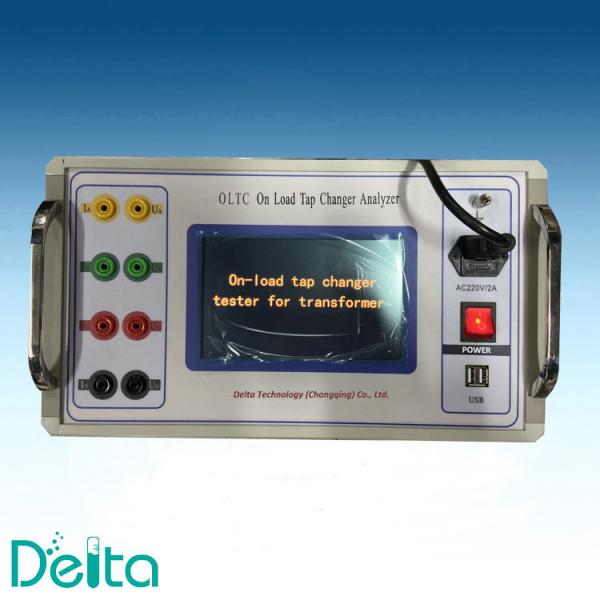

Oltc High Quality Electrical Testing on Load Tap Changer Tester Oltc Testing​Real Picture:

Oltc Automatic Transformer on Load Tap Changer TesterOltc Automatic Transformer on Load Tap Changer Tester
