NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
NF P92-502 503 504 505 Building Material Melting Dripping Tester
Specifications
Brand Name :
Delta
Model Number :
NF505
Certification :
ISO9001
Place of Origin :
Chongqing, China
MOQ :
1 set Dripping Tester
Price :
USD1.0 / set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets Dripping Tester / month
Delivery Time :
Within 30 days after the order is confirmed
Packaging Details :
Dripping Tester is packed in wooden case and container
Test Standards :
Nfp 92-503,95/28/Ec,ECE R118 Annex 7
Heat Radiation Flux :
30kw/M2
Description :
Melting Materials Dripping Test Machine
Application :
Reaction to Fire Complementary Test
Application Field :
Building material, rail, etc.
Features :
High Quality Low Price Dripping Test Machine
Dimension :
520mm(W) * 650mm(H) * 350mm(D)
Gross Weight :
29kg
Delivery Lead Time :
15 Days
Shipping Method :
by Express or Air
Trade Term :
EXW, Fob, DDU, CNF, CIF, etc.
Language :
English
OEM Service :
For Free
Description

NF P92-502 503 504 505 Building Material Melting Dripping Tester

Introduction:

NF505 Dripping Tester, in accordance with NF P92-505/ECE R118, is used to determine the melting behaviour of materials under a 500W radiant heat source.

During the NF P92-505 test, a specimen is placed horizontal and exposed to an electric radiator above. A receptacle is positioned under the specimen to collect the resultant drops. Some cotton wool is put in the receptacle in order to verify if any drop is flaming.

Application Field:

  • Building Materials;
  • Rail;
  • Automotive interior;

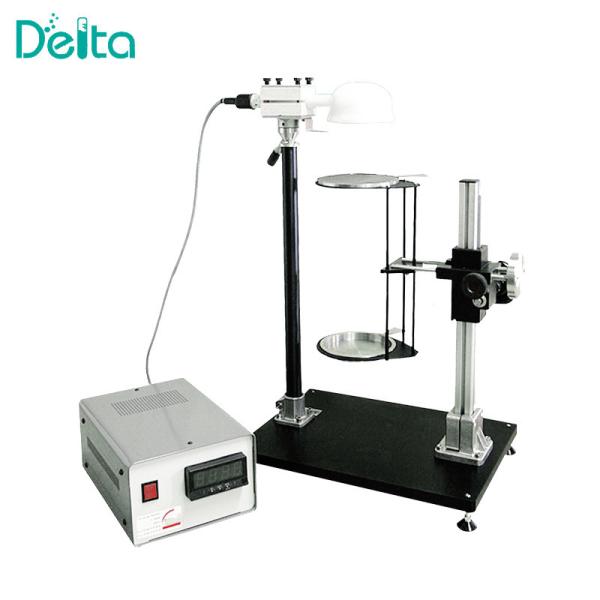

NF505 Dripping Tester consists of:

• France original epiradiator-type heat radiation source, power rated at 500W, which radiant surface is made of a translucent vitreous fused silica disk of 100 mm diameter.

• A movable handle device allows to slightly turn the epiradiator above the specimen or remove it.

• Specimen support stand, with height adjustment function.

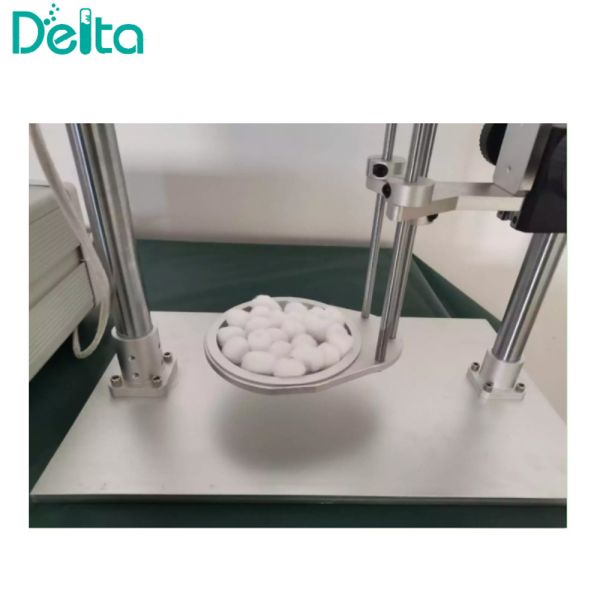

• A receptacle is positioned 300mm under the specimen holder to collect the drops.

• A power control unit for epiradiator radiant rate control.

• Calorimeter in accordance with NF P92-505, for epiradiator calibration.

Water-cooled heat flux meter in accordance with ECE R118 Annex 7, for epiradiator calibration.

Parameters:

No. Item Name NF505 NF-P92-502 503 504 505 Building Material Melting Dripping Tester
1 Dimension 520mm(W) * 650mm(H) * 350mm(D)
2 Weight 29kg
3 Power supply 110 to 230 V 10 Amps
4 Ambient temperature Operating 10°C to 35°C

NF P92-502 503 504 505 Building Material Melting Dripping Tester

NF P92-502 503 504 505 Building Material Melting Dripping TesterNF P92-502 503 504 505 Building Material Melting Dripping Tester
