UL94-X Good Quality IEC60695-11 Horizontal and Vertical Flame Test Chamber

Introduction:

• The test is widely applied throughout the industry, especially in electrical manufacturing, where it is widely used for the testing of electrical products.
• The test measures the burning rate of samples positioned either horizontally or vertically.
• Flammability, combustion speed, flame spread, and the intensity of combustion can be acquired during test automatically and precisely;
• It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards. These are:

1. Horizontal Burning Test; UL 94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210).
2. Vertical Burning Test: UL 94 V-0, V-1, or V-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210).
3. Vertical Burning Test: 5VA or 5VB (ASTM D 5048, IEC 60695-11-20, IEC 60707, ISO 9772).
4. Thin Material Vertical Burning Test: VTM-0, VTM-1, or VTM-2 (ASTM D 4804, ISO 9773).
5. Horizontal Burning Foamed Material Test: HF- 1, HF-2 or HBF (ASTM D 4986, ISO 9772).
6. Burners (ASTM D 5025, ASTM D 5207, ISO 10093, ISO 103351).

Standards:

• ISO: ISO 9772, ISO 9773
• IEC: IEC 60695-11-10: 2013
• UL: UL94

Features:

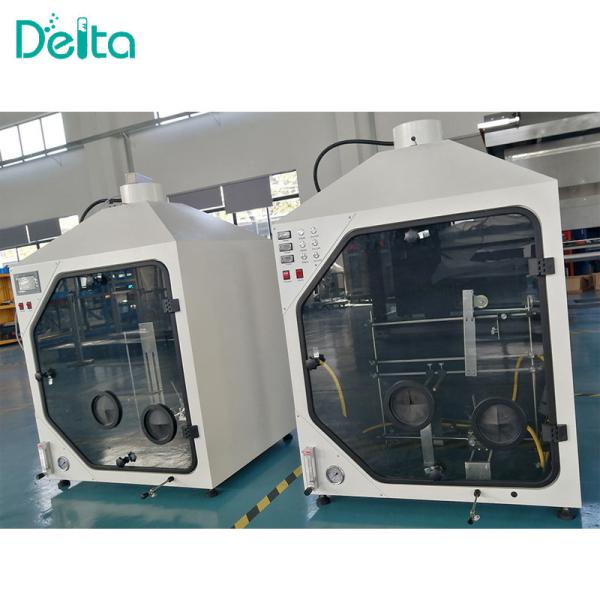

• A bench-mounted draft combustion chamber having a large inside volume of 0.75m3
• Large doors and windows made from toughened safety glass give a generous view of the specimen during a test.

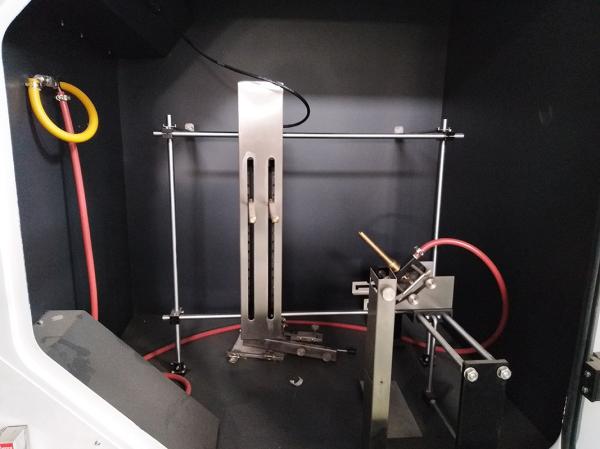

• Fully adjustable horizontal and vertical specimen supports.
• A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator, pressure gauge, U type water column tube.
• Two access ports enable easy entry to the chamber for movement of the burner and specimen.
• Auto Specimen Moving System and one testing timer are convenient for the consumer to use.
• Burner calibration kit, conforming to ASTM D 5207.

Parameters:
