Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Battery Cell Voltage Balance Lithium Battery Equalizer
Specifications
Brand Name :
Delta
Model Number :
XDC-3930
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
1 set Battery Equalizer
Price :
USD2000 - USD3500 / set Battery Equalizer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets Battery Equalizer / month
Delivery Time :
Within 10 days after the order is confirmed
Packaging Details :
Battery Equalizer is packed in one plywood case, about 22kg
Usage :
Battery Charging Discharging Battery Equalizing
Output Voltage :
DC1.500V~4.350V
Dimension :
500mm*300mm*450mm
Output Current :
0.5~5A Adjustable
Operation Mode :
Through The Panel Directly
Type :
Battery Test Equipment
Data Storage :
2G
Gross Weight :
22kg
Power Supply :
220V, 50Hz
Features :
Battery Cell Voltage Balance Lithium Battery Equalizer
Other Name :
Battery Tester, Battery Discharging Tester, Battery Charging Tester, Battery Capacity Tester, Battery Equalizer
Use Environment :
0-45 degree
OEM Service :
Available
Description

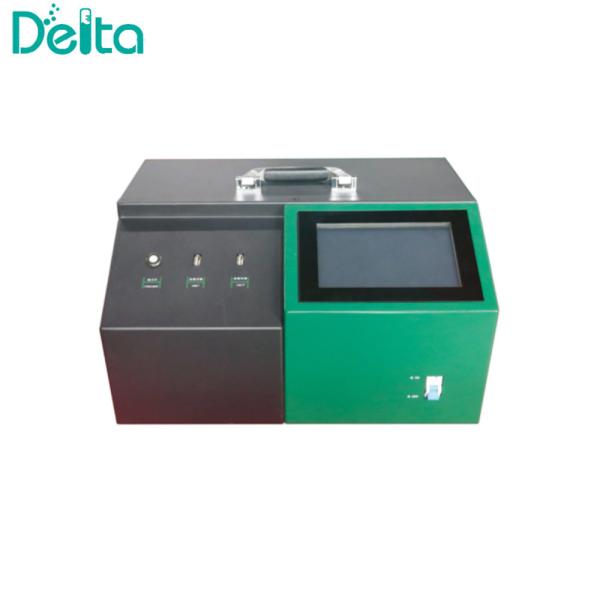

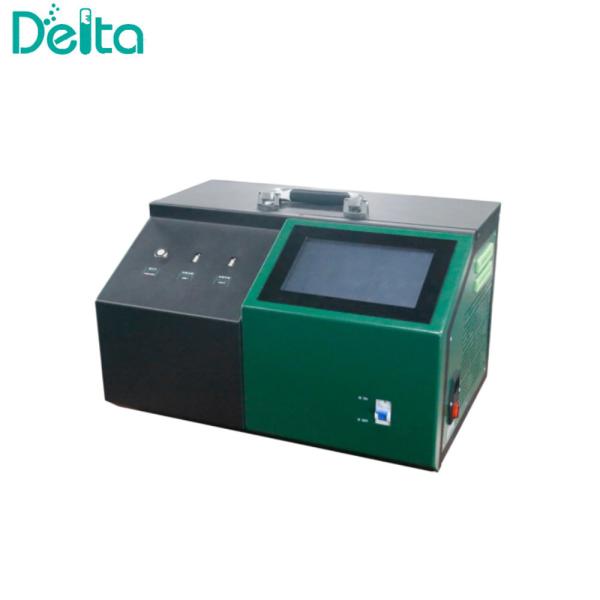

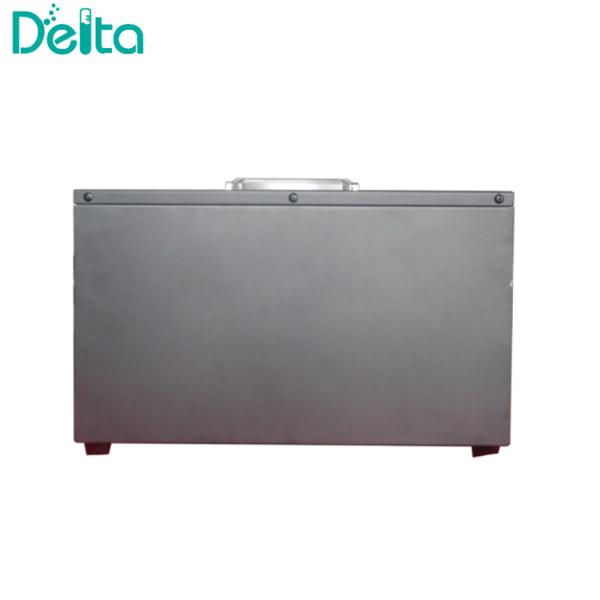

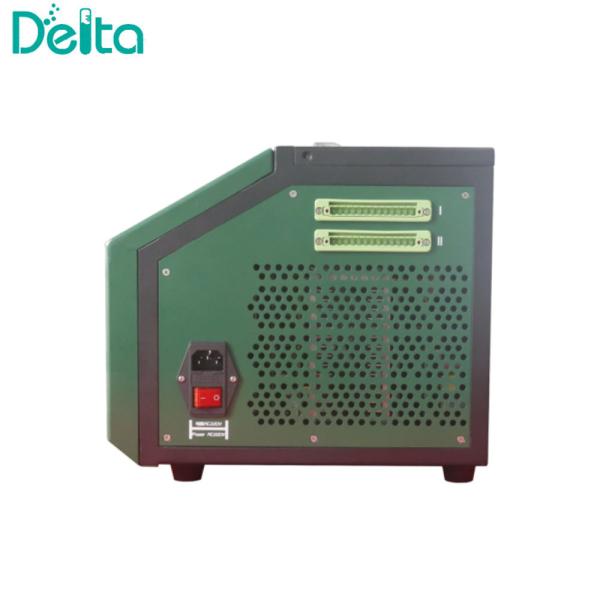

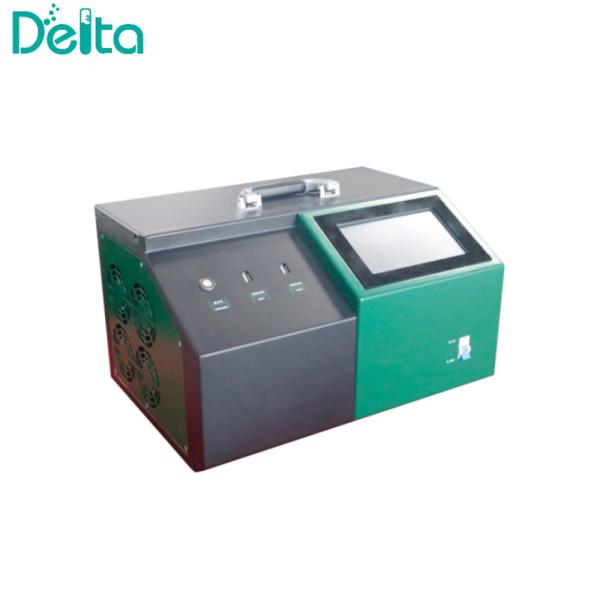

XDC-3930 Battery Cell Voltage Balance Lithium Battery Equalizer

Introduction:
XDC-3930 Battery Equalizing Tester is used to perform the repair and maintenance of voltage differences for module cells, which can completely solve the issue of battery capacity degradation via manual & automatic two-way maintenance.

This series is specially designed to guarantee battery safety performance, extending the battery life, and reducing the cost of battery repair and replacement.


Specifications:

Model Name 12-05 24-05 36-05 48-05 60-05 72-05
Channels(strings) Single-cell *12 Single-cell *24 Single-cell *36 Single-cell *48 Single-cell *60 Single-cell *72
Power supply 220V/AC ±15% 50Hz
Voltage range DC1.500V~4.350V
Equalization current 0.5~5A adjustable
Maintenance modes Parallel charging, parallel discharging, equalization&maintenance
Human-machine interaction 7 inch LCD touch screen
Voltage accuracy 5V@+0.1%FS±2mV
Current accuracy 5A@±1%FS±0.05A
Temperature -10~65C@+2C
Connection modes Reverse (negative), sequence (positive)
External communication RS485/USB
Heat dissipation Air cooling
Protection direction Cross-connection, leakage, reverse connection, under-voltage, over-voltage

Features:
Arbitrarily selected as replenishment, discharging, and equalizing, which is convenient to use in different working conditions.
Covers the maintenance of mainstream lithium batteries in the market.
The maintenance process supports end depolarization, which guarantees a highly consistent effect after equalization.
The internal channels are independently designed without interfering with each other, ensuring that each battery cell will not be over-charged and discharged.
Easy to carry, the equipment supports 1~6 channels to expand, and a single channel supports 12 strings of battery cells' equalization at the same time.

Battery Cell Voltage Balance Lithium Battery Equalizer

Battery Cell Voltage Balance Lithium Battery Equalizer

Battery Cell Voltage Balance Lithium Battery Equalizer

Battery Cell Voltage Balance Lithium Battery Equalizer

Battery Cell Voltage Balance Lithium Battery Equalizer

Battery Cell Voltage Balance Lithium Battery Equalizer
