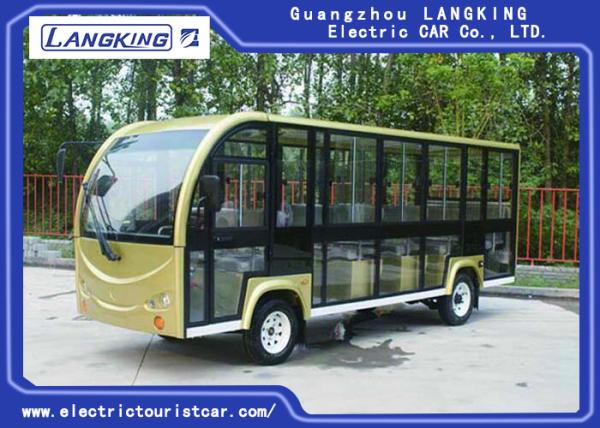

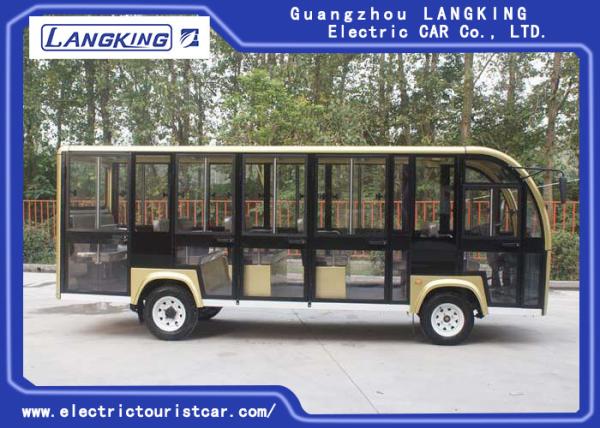

18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor
Specifications
Brand Name :
LANGKING
Model Number :
Y180-M
Certification :
CE
Place of Origin :
GUANGZHOU ,CHINA
MOQ :
1 Unit
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100Units/ month
Delivery Time :
20-25 wprking day
Packaging Details :
Non packing
HS CODE :
8703101900
Qty/20'GP (Assembled) :
1 unit
Qty/40'GP (Assembled) :
2 units
Passenger capacity :
18 seats with door
Max.Speed :
28 km/h
Range(loaded) :
100 km
Climbing Ability(loaded) :
15%
Recharge time :
8~10h
Min.Clearance :
150mm
Min.Turning Radius :
6m
Braking Distance :
≤7m
Description

CE Approved Spacious 18 Seats with door Electric Sightseeing Bus Designed For Tourist Attractions

Feature Description

This section has 8, 11, 14 ,18,23 seats, can load a variety of configurations, suitable for campus, villages, airports, terminal.

Dimensions

L×W×H 5300×1500×2000mm
F/R Tread 1220/1270mm
Axle Distance 2930mm
Curb Weight 1500kg
Max. loading 1350kg
Standard Configurations
Motor 72V/6.3KW DC motor
Controller 72V
Body Steel frame + FRP shell
Batteries Batteries 6V*12 pcs
Seats Three-row low back seat (leather fabric + high rebound PU + stainless steel armrest)
Rear view mirror 2pcs +1 middle mirror
Tire Steel wheel hub / front 155 R12C Rear 165R13C vacuum meridians
Chassis Steel frame, surface rust treatment
Steering Rack and pinion steering machine
Front Suspension Independent suspension + helical spring cylinder type hydraulic shock absorber
Rear suspension Full floating rear axle, leaf spring non-independent suspension, cylinder type hydraulic shock absorber
Brake system Front disc rear drum hydraulic brake, double loop hydraulic brake, parking brake device
Charger 72V/25A, Input AC 220V/50HZ
Dashboard LCD meter (including current, voltage, speed, speed, cruising range, battery power, light signal, etc.)
Sound MP3, professional speaker
Switch Start switch, light and wiper combination switch, front and rear reversing, interior lights, warning light and reversing alarm rocker switch
Doors and windows Sheet metal spray door, aluminum alloy sliding toughened glass window, under plexiglass
Color Option Customized,white,green, yellow, blue.

Product Showing:

18 Seater Electric Sightseeing Bus For Campus / Villages / Airports / Terminal 72V 6.3KW DC Motor

Application:

* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.

FAQ:

1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.

2. What's the production time?
Normally for 30 working days.

3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.

4.Can we also purchase the parts?

Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.

5. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.

6.What is your MOQ?
You can order MOQ 1 unit .

7.Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
