Specifications
Brand Name :
LANGJIE
Model Number :
LQF090 with roof
Certification :
without
Place of Origin :
GUANGZHOU ,CHINA
MOQ :
1PC
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000/Unit/Week
Delivery Time :
30 days
Packaging Details :
Nude packing
Part Name :
Electric van
Prodution time :
30 days
Max. loading :
900g
Color :
Choose you like color
Recharge Time :
8-10h
Max Loading :
900kg
Seat :
2 SEATS WITH ROOF
Motor :
48V/5KW AC motor
Powertrain :
48V/5kW
Rear View Mirror :
2PCS
Description

2 Setas Electric Transit Van 48V AC Small Electric Utility Vehicles For Resort

Feature Description

this vehicle is modified base on standard LQF090 electric cargo van.with a roof

Performance:

HS CODE 8709119000
Qty/20'GP (Assembled) 1 unit
Qty/40'HQ (Assembled) 3 units
Specifications
Performance:
Passenger capacity 2 seats
Max.Speed 25 km/h
Range(loaded) 70 km
Climbing Ability(loaded) 12%
Braking Distance 4m
Min.Turning Radius ≤4.5m
Recharge time 8h-10h
Dimensions
L×W×H 3820×1430×1940 mm
Axle Distance 1935mm
Curb Weight 850kg
Max. loading 900KG
cargo box (L×W×H) 2400*1360*300mm

Dimensions

Standard Configurations
Motor 48V/5KW AC motor
Controller 48V (China Brand )
Battery Maintenance-free battery 6V/170Ah*8pcs
Body & Roof High strength FRP body + sheet metal cargo platform enclosure/Bifacial fiberglass.
Seats High density polyurethane foam, outer wear-resistant waterproof leather fabric.
Rear view mirror 2pcs
Tire Strengthened vacuum meridian tire, specification model: 155 / 80 R12, equipped with aluminum alloy rim.
Chassis High strength steel pipe welding structure, anti-rust electrophoretic paint treatment.
Steering Gear rack steering system
Front Suspension McPherson independent suspension, spiral spring + cylinder hydraulic shock absorber.
Rear suspension Directly connected integral rear axle, steel plate spring + cylinder hydraulic damping non-independent suspension.
Lighting system Headlights, turn signals, rear combination lights, reversing buzzers, electric horns.
Brake system Hydraulic double circuit four-wheel drum brake is used, with mechanical parking (handbrake).
Charger Car charger, Output:48V/25A, Input AC 220V/50HZ
Dashboard Fiberglass molded instrument panel, voltmeter, ammeter, steering indicator light, combination switch and so on.

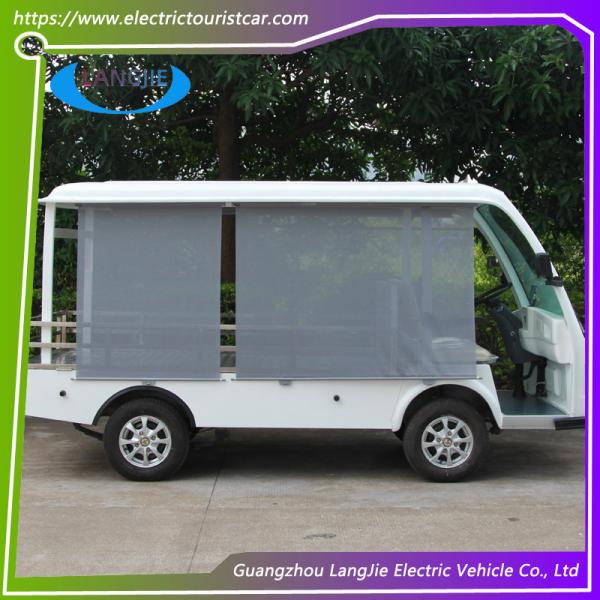

Showing Photos :

2 Setas Electric Transit Van 48V AC Motor Small Electric Utility Vehicles For Resort

FAQ

Q1. Do you accept to customize the vehicles as per our special request?

Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.

Q2. What is your warranty term?
Answer: Our main parts warranty, such as: motor, electronic control, rear axle, charger warranty for one year. Others are not warranty. If it is artificial, there is no warranty. If it is a quality issue, provide relevant pictures, descriptions, and videos to let our company's relevant departments confirm whether there are quality issues.


Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.

Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone.

Q5. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.

Q6: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before shipment. Please contact us for more information.
