72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H
72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H
72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H
72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H
Specifications
Brand Name :
LANGJIE
Model Number :
LQY148
Certification :
CE
Place of Origin :
GUANGZHOU ,CHINA
MOQ :
1 UNIT
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
300 /UNIT/MONTH
Delivery Time :
20-25 WORKING DYA
Packaging Details :
NUDE PACKING
Part Name :
Electric shuttle bus
Qty/20'GP (Assembled) :
1 unit
Qty/40'GP (Aassembled) :
2 units
Passenger capacity :
14 seats
Max.Speed :
30km/h
Range(loaded) :
100 km
Climbing Ability(loaded) :
30%
Min.Turning Radius :
≤6.5 m
Description

72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H

Dimensions

L×W×H 5240*1510*2060mm
Axle Distance 2800mm
Curb Weight 1210kg
Max. loading 1190 kg
Motor 72V/7.5 KW AC motor
Controller 72V controller
Battery battery 6V*12PCS
Body & Roof High-strength impact-resistant composite body (PT+PBT alloy injection-molded front cover) has super impact-resistant function./Fiberglass reinforced plastic + aluminum alloy frame. Light weight and anti-aging. Not easy to fade
Windshield See-through Laminated glass
Seats PU car seat, ergonomic, adjustable structure for driver's seat.
Rear view mirror 2pcs
Bumper Rear Bumper
Tire Vacuum radial tires 165/70R13, steel rims with rim covers.
Chassis High-strength steel frame type longitudinal beam chassis with electrophoretic anti-rust treatment.
Steering Rack and pinion steering system Automatic backlash compensation function. With directional assistance
Front Suspension Front axle MacPherson independent suspension. Coil spring + cartridge type hydraulic shock absorber
Rear suspension Integral rear axle. Steel leaf springs + hydraulic cartridge damping
Brake system Front disc and rear drum double circuit hydraulic braking + handbrake parking. With brake assistance
Charger Intelligent high-frequency vehicle charger. Input voltage 220V, output 72V/25A.
Dashboard Injection molded dashboard with multi-function LCD display with voltage, power and speed display. Instrument indicator, electric lock switch, equipped with USB port, USB charging port, storage box, water cup holder.
Color Option White, Grey, Navy, Red, Khaki, Purple, Green etc.

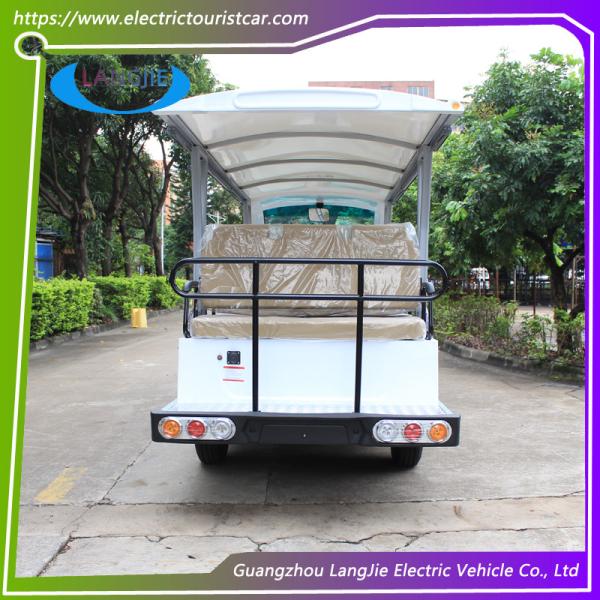

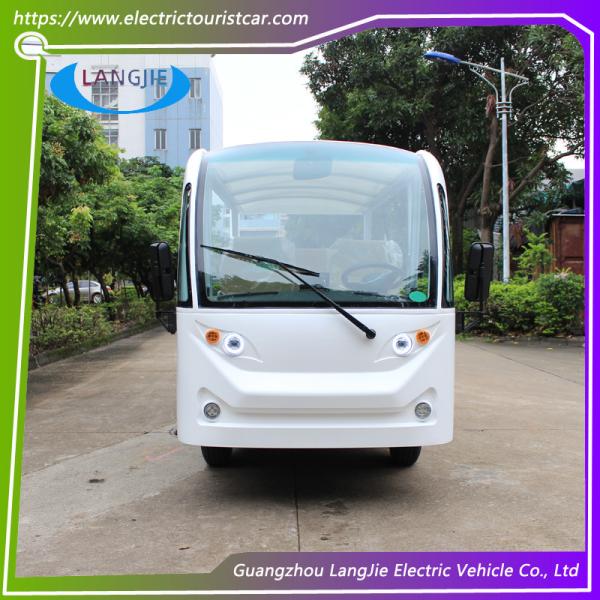

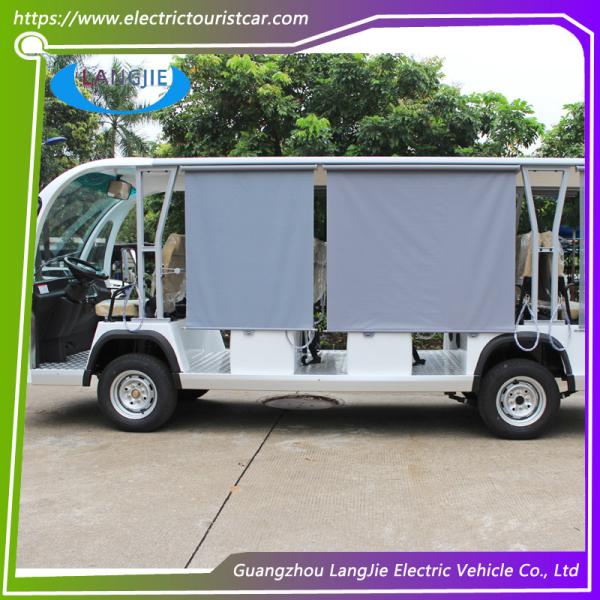

Showing photo:

72V 7.5KW AC Motor Electric City Bus 14 Persons Electric Shuttle Vans Max.Speed 30 Km/H

City Bus 14 Seats Electric Shuttle Bus Vehicle


Passenger Capacity:14 people
Maximum loading:1200 kg

Range:100 km
Maximum speed:30km/h


Classic design, various use


Adaptation:14 seats tourist bus is fit for different area. It can be used at scenic spot, park, airport, campus city etc.


- L×W×H 5240*1510*2060mm

- Motor 7.5kW(AC)

- Battery 6Vx12pcs

- Passenger Capacity 14 seats

- Kerb Weight 1210kg

- Gross Weight 1200kg

- Axle Distance 2800mm

- Min Turning Radius 6.5m

- Braking distance≤6m

- Braking distance 30km/h

- Range 100km

- Charging Time 8~10h

- Climbing Ability(full loading) 20% (AC)

Our Services

1. Strict quality control step by step.

2.After market service available.

3. Spare part available.

4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.

5.24 hours online service.

Life-time Spare Parts Supplies

In the life-time of the vehicles or maximum within a fews years we stop the production of any model, we still supply the spare parts for after service.

FAQ:

1. What's your payment term?
T/T 30% deposit and balance paid before shipment.

2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
