AC250V 20mA Shaft Vibration Transmitter 35mm Guide Rail JM-B-33
AC250V 20mA Shaft Vibration Transmitter 35mm Guide Rail JM-B-33
Specifications
Brand Name :
OEM
Model Number :
JM-B-33
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
15 days after signing the contract
Packaging Details :
Wooden box packing
Outline dimension :
88mm×31mm×70mm
Current output :
4～20mA
Switching value :
DC27V/2A or AC250V/5A
Power supply voltage :
DC+24V
Working temperature :
-10～65℃
Relative humidity :
≤85%
Description

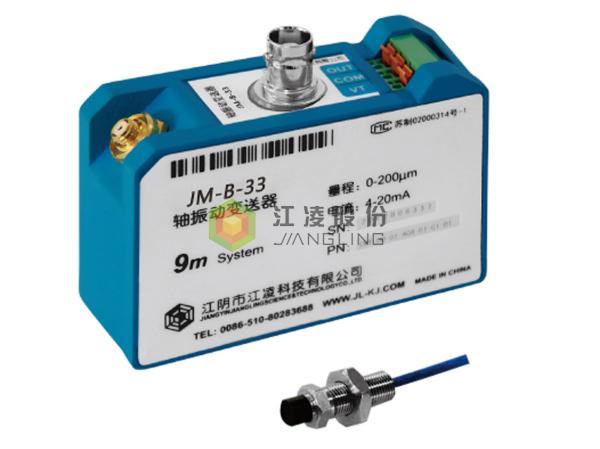

JM-B-33 Integrated shaft vibration transmitter

Sytem description

• DIN35mm guide rail installation
• Removable installed base

Technical parameters

Order No. Description
Measure range To the order guide
Outline dimension 88mm×31mm×70mm(W×H×D) UNIT: mm
Current output 4～20mA(load ≤1KΩ)
Switching value DC+24V
Environment temperature

Working temperature : -10～65℃,

Relative humidity : ≤85%

Order Guide:

Order No. Probe and thread specification A The selection of range B The screw thread length C The total length of screw D The probe cable / extension cable selection E Explosion proof requirements F Probe installation way G

JM-B-33-

Integrated shaft vibration transmitter

 1:the probe specifications φ5mm ,
thread side M8×1.0mm
2:probe size φ5mm ,
thread size M10×1.0mm
3:probe size φ8mm ,
thread size M10×1.0mm*
n:special requirements		 1:100μm
2:200μm*
3:400μm
4:500μm
n:special requirements		 1:5mm*
2:10mm
3:15mm
4:20mm
n:special requirements		 1:30mm
2:40mm
3:50mm*
4:60mm
n:special requirements		 1:1m+4m metal shielding
2:1m+4m non metal shielding*
3:0.5m+4.5m metal shielding
4:0.5m+4.5m non metal shielding
5:1m+8mmetal shielding
6:1m+8m non metal shielding
7:0.5m+8.5m metal shielding
8:0.5m+8.5m non metal shielding		 1:explosion proof
2:no explosion proof *		 1:general *
2:the installation

Note :The specific requirements should be provided for special model selection
