WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D
Specifications
Brand Name :
HONTAI
Model Number :
RQ4P1FP16-D
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
200
Packaging Details :
Wooden box packing
brand :
HONTAI
model :
RQ4P1FP16-D
actuator material :
WCB/304/316
connector :
PN1.6~4.0MPa
type :
DN10～300mm
power supply :
AC200/220V，50/60Hz
output torque :
50N·M～2000N·M
acting range :
0～90° 0～360°
PN :
PN1.6 2.5 4.0 6.4 31.5MPa
Description

Pneumatic ball valve , flang type RQ4P1FP16-Q , ball vavle with pnuematic actautor

The electric ball valve is suitable for two-position cut-off and adjustment occasions. The connection between the valve and the actuator adopts a direct connection method. The electric actuator has a built-in servo system, and no additional servo amplifier is required. Input 4-20mA signal and 220VAC power supply to control the operation. It has the advantages of simple connection, compact structure, small size, light weight, low resistance, stable and reliable action, etc. The actuator can be equipped with electronic electric actuators such as UNIC, PSQ, HQ, DHL or other pneumatic actuators such as GTX and AL according to user requirements

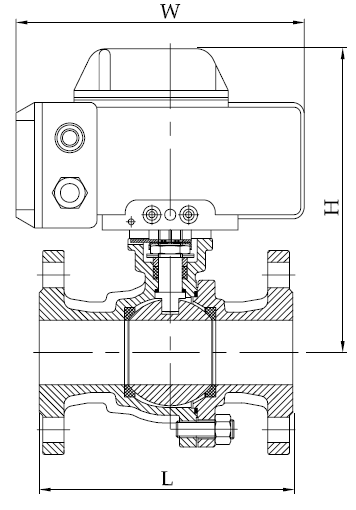

WCB Actuator 300mm Electric Ball Valve PN1.6 RQ4P1FP16-D

DN
L
D
H
L1
D1
b
Z-d1
H1
pressure
1.6/2.5/4.0
1.6/2.5/4.0
1.6/2.5/4.0
1.6/2.5/4.0
1.6/2.5/4.0
15
130/130/140
95
275
157
65
14/16/16
4-14
48
20
140/140/150
105
280
157
75
14/16/16
4-14
53
25
150/150/165
115
287
157
85
14/16/16
4-14
58
32
165/165/180
135
354
208
100
16/16/18
4-18
68
40
180/180/200
145
312
208
110
16/16/18
4-18
73
50
200/200/220
160
325
208
125
16/20/20
4-18
80
65
220/220/250
180
335
256
145
18/22/22
4-18/8-18/8-18
90
80
250/250/280
195
365
256
160
20/22/22
8-18
98
100
280/280/320
215/230/230
400
256
180/190/190
20/24/24
8-18/8-23/8-23
120
125
320/320/360
245/270/270
420
256
210/220/220
24/28/30
8-23/8-25/8-25
140
150
360/360/400
280/300/300
440
256
240/250/250
24/28/30
8-23/8-25/8-25
167
200
400/400/550
335/360/375
470
256
295/310/320
26/34/38
12-23/12-25/12-30
210
250
630 750
405 470
545
380
300
750 870
460 530
580
380
