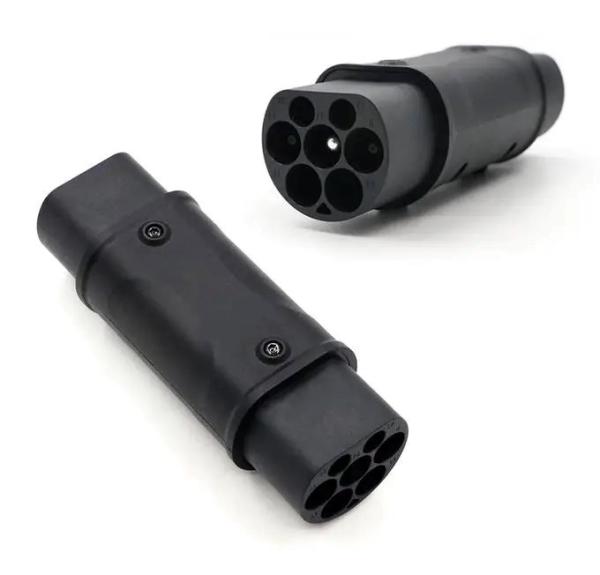

Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Specifications
Brand Name :
Evoyage
Model Number :
EV2GB32A
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
18.5X14.5X9 cm;1.000 kg
Product Name :
Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW
Rated current :
16/ 32A
Rated voltage :
200-250V, 380V-450V
Standard :
IEC62196-2/GBT 20234
Mechanical life :
10000 Times' Plug In/off
Function :
EV Car Charger
Operating temperature :
-30℃ - +50℃
Warranty :
1 Year
Description

Type2 to GB/T EV Adapter 16A/32A 3.5KW/7KW/11KW/22KW For Type2 EV charger for Chinese electric vehicles

Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW

Type 2 to GBT EV Charger Adaptor IEC 62196 To GBT China Standard EV Charger Converter 16A/32A 3.5KW/7KW/11KW/22KW

  • This Type 2 To GBT Adapter (IEC 62196 To GB/T) allows you to charge Chinese electric vehicles at Type 2 AC stations. There are two variants of this adapter: single-phase, up to 7 kW and three-phase, up to 22 kW.
  • This converter meets all safety requirements. It is CE certified and complies with the IEC 62196 standard. The pin head is thoughtfully designed with safety insulation, preventing accidental direct contact with human hands and providing an extra layer of protection.
  • The housing material is made of durable and flame-retardant thermoplastic with a UL94V-0 rating.
  • The adapter is compatible with all electric cars which have a GB/T port including the Tesla Model 3 and Y, BMW iX3, VW iD.4/iD.5/iD.6, Audi e-tron, BYD and many more.

Specifications
Rated Current: 16/32A,single/three phase
Rated Voltage : 200V~250V:380V~450V
Standard: GB/T20234 IEC62196
IP Degree: IP55(EV Adaptor)/IP44(After Insertion)
Inflammability
Rating:		 UL94 V-0
Insulation
resistance:		 0.5mΩ Max
Mating and
UN-mating Force:		 45<F<80N
Mechanical Life
(Normal use):		 >10000 times
Shell: Thermoplastic material
Working
Temperature:		 -30℃~+50℃
Connector Pin: Copper alloy, silver plating
