Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT
Specifications
Brand Name :
Evoyage
Model Number :
EVCCS12AD
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
685 x 600x 480mm; 90kg/100kg/110kg
Product Name :
Portable EV Charger CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/45KW/60KW Portable EV DC Charger DC Fast Charger
Rated Current :
75A/80A/90A/120A/150A
Rated Voltage :
Max 750V DC
Standard :
CCS/Tesla/CHAdeMO/GBT
Description

Portable EV Charger CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/45KW/60KW Portable EV DC Charger DC Fast Charger

Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT

Portable EV Charger CCS CHAdeMO EV Charger Station 30KW/45KW/60KW Fast DC Charger

  • Rated voltage:DC 200-750V
  • Input Rating:380Vac± 15%
  • Power Factor:>0.99 @ full load
  • TFT-LCD Touch Panel:5' touch display
  • Certification:CE ROHS

This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

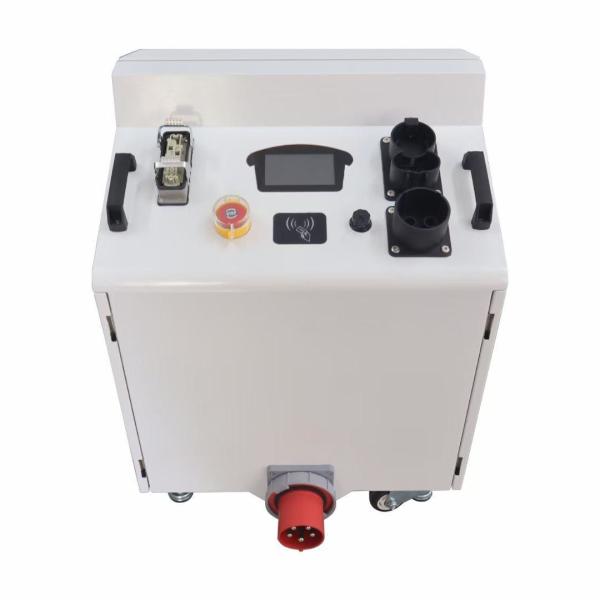

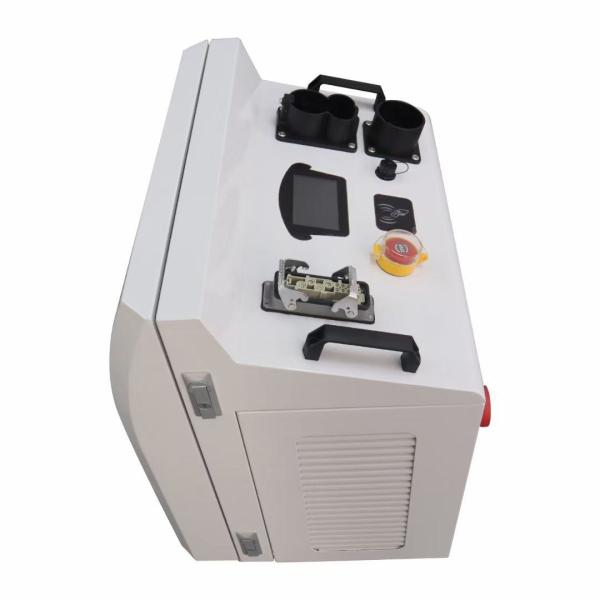

Mobile type DC Quick Charger

FEATURES:

  • It is supporting ccs and CHAdeMO only byreplace the cable.
  • USB for firmware update and RJ45 port for internet connect(optional).
  • Open door design, it is convenient to replacepower module.

Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT

DC portable Charger Features

The 60kw portable quick-charger was developed for electric vehicles with CHADEMO or CCS Combo DC charging sockets and is designed for semi-mobile use.It is compatible with all popular industrial sockets and can be used with CEE63 plug sockets. The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in workshops or at motoring events.

Portable DC Fast Charging Stations EV Charger 30KW / 45KW / 60KW CCS Tesla CHAdeMO GBT

Description :

  • best backup charger supply on the race track,in a tow truck,in a SUV,trailer or anywhere you need power.
  • Support different charging plug standard (CCS/Tesla/CHAdeMO/GBT)by replace the cable.
  • CE/ROHS certification .
  • 7inch touch screen is convenient to change the setting .
  • IP54 rated for indoor /outdoor applications.
  • Provide customized configuration.
  • compact and lightweight design,easy to use.
CCS BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
Tesla Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.
Model 30KW 45KW 60KW
Ac input Input Rating 380V±15%
ACInput Connection L3+N+PE,Wye connection
Max.input Current 50 A 70A 100 A@380V
Frequency 50/60 Hz
Power Factor >0.99 @full load
Efficiency 95%
Dc input Output voltage range 200-750VDC
Max.Output power 30 kW 45kW 60 kW
Max.Output current 75A@400V 90A @500V 150A@400V,120A@500V,8OA@750V
User interface TETICD Touch Pane 5'touch display
Push Button Emergency Stop
Interface USB,RJ45
Package Dimension 685*600*480mm
Weight 90kg 100kg 110kg



Environmental		 Operating temperature -20℃~+50℃,power derating from+50℃ and above
Humidness 5%~90%RH,non-condensing
Altitude 2000m
IP leve IP54
Machine Cable length 5M(CHAdeMO),5M(CCS),5M(GB/T)Customized acceptable
Regulation Regulation EN61851-1
Certifi catior CE,ROHS
Charging protocol CHAdeMO 20/DIN 70121/1S015118/1EC61851-23EC61851-24
