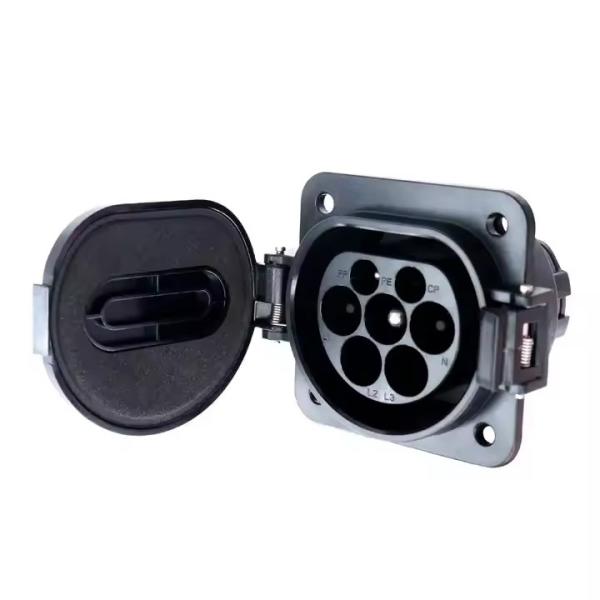

Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Specifications
Brand Name :
Evoyage
Model Number :
EV32AP
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, Paypal, Alipay, Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
18.5X14.5X9 cm;1.000 kg
Product Name :
Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid
Rated current :
16 / 32A
Rated voltage :
250/415V AC
Standard :
IEC62196-2/Type 2
Description

Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase or 415V Three Phase With Lid, (Electromagnetic Lock optional) Car Accessories

Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid

16/32A Type 2 EV AC Charging male socket for EV side

Model selection and the standard wiring
Rated current: 16/32A 16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option 16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
Operation Temp.:-30℃ ~ + 50℃ 32A Single phase;3 X 6mm²+ 2 X 0.5mm²
IP protection class: IP 54 ( working condition) 32A Three phase;5 X 6mm²+ 2 X 0.5mm²
Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

Ac Type 2 IEC62196-2 Connector Male Socket/Inlet For EV Side16/32A 250V Single Phase Or 415V Three Phase With Lid


IEC 62196-2 (Type 2 Mennekes) Male Socket/Inlet(EV Side) 16/32A With Lid

This IEC62196 Type 2 AC EV Female Socket is used at the type 2 AC charging station .The Type 2 (Mennekes) inlet, is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs support Level 1 and Level 2 charging standard of Europe/ Australia and increasingly global standards

►Meets IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard

►Nice shape and easy to use, protection class IP54 (in mated conditions)

which provides protection against dust and against the ingress of water splashing from all sides. When connected, the socket protection is also at the IP54 level.

►Cord Length: Free end

►Adapt the socket type: IEC 62196-2

Specification:​

•Rated current: 16/32A

•Operation voltage: 240/415V AC(3 Phase)

•Insulation resistance: > 1000MΩ (DC500V)

•Terminal temperature rise: < 50K

•Withstand voltage: 2000V

•Vibration resistance: Meet JDQ 53.3 requirements

•Contact impedance: 0.5mΩ Max

•CE & TUV approved

Materials:

♦Shell Material: Thermo Plastic ( Flame retardant grade UL94 VO)

♦Contact Pin: Copper alloy, silver plating

♦Sealing gasket: rubber or silicon rubber

Recommended Cable:

♦Cable: (TUV,UL Rated)

♦32A: 3*6.0mm2+2*0.5mm2

♦Cord length: Free End, 3m(9.8ft), 5m(16.4ft)The wire length and end of treatment are according to the customer requirement
