QMFD4600Wheeled fan dui jiPull rod control typeOrganic fertilizer production equipment
QMFD4600Wheeled fan dui jiPull rod control typeOrganic fertilizer production equipment
Specifications
Brand Name :
QIMENG
Model Number :
QMFD4600
Certification :
MAKA
Place of Origin :
Zhengzhou City
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C
Supply Ability :
fifteen set per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden box
Machine weight :
9500kg
Heap width :
4600mm
Heap height :
2000mm
Overall size :
5.4m×3.4m×3.7m
Type of tipper :
QMFD4600Wheeled fan dui ji
Working speed :
0—18m/min
Description

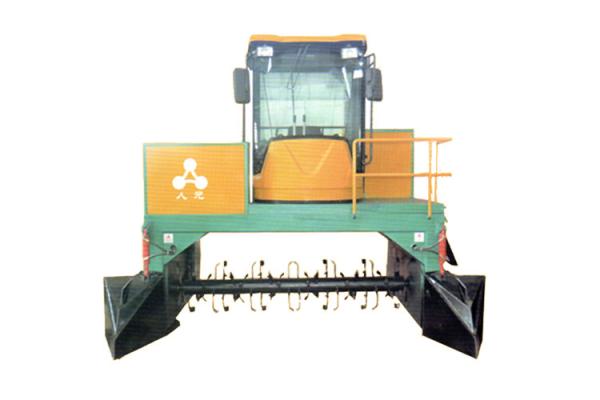

QMFD4600Wheeled fan dui ji

Performance features:

QMFD-4600 pull rod Operating Type: (no steering wheel) material fermentation tipper eliminates hydraulic steering wheel tipper.It is a new product produced by our company.It fills a blank that the domestic large wheel-type tipper can't turn around in the same place.Without the steering wheel, the driver only needs to easily control the two pull rods, then the tipper can realize the brake of turning left and right and the turn of 180 degrees in situ, and the hydraulic balance of the steering wheel.The height of the turn-over shaft can automatically rise and fall, and the forced turn-over can be chosen according to the moisture content of the material, and the turn-over can be performed at high speed.This product adopts soft start to turn over and clutch, (domestic similar products all adopt iron-to-iron clutch, which causes serious damage to chains, bearings andaxles) and is equipped with front hydraulic push plate, which does not need to take time and time for the whole pile. Roller hydraulic lift. It greatly saves the site, time, diesel and manpower, and advances the fermentation period.

Type of tipper QMFD-4600Mechanical track type tipper
Heap width 4600mm
Heap height 2000mm
Row spacing of deposits 0.8-1m
Maximum diameter of material particles φ250mm
Power 179kwDiesel engine

Torque

 1028N.m
Rated power speed per hour 2200r/min
Working speed 0-18m/min
Driving speed 50m/min
Processing capability 2000-2400m³/h
Overall size 5.4m×3.4m×3.7m
Machine weight 9500kg
