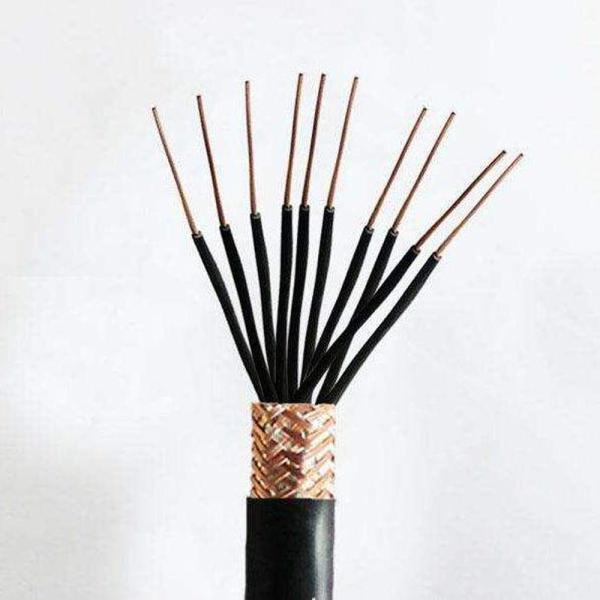

LSZH Jacket Low - Medium Voltage KVV Copper Conductor Control Cable

1. General Description

The LSZH (Low Smoke Zero Halogen) jacket low - medium voltage KVV copper conductor control cable is a specialized type of cable designed for control system applications within a specific voltage range. It combines the advantages of copper conductors, a particular cable structure, and the LSZH jacket material to meet various requirements in different environments.

2. Conductor

• Material: The cable features copper conductors. Copper is chosen for its outstanding electrical conductivity. It allows for efficient transmission of electrical signals with relatively low resistance, minimizing power losses during signal transmission. For example, in a control system where precision in signal transfer is crucial, the high conductivity of copper ensures that the control signals reach their destinations accurately and quickly.

• Construction: The copper conductors in the KVV cable are usually stranded. Stranding provides flexibility to the cable, making it easier to install in complex routing situations. This is especially important in control systems where the cable may need to be bent or routed around obstacles within a limited space.

3. Insulation

• The insulation layer in the KVV cable is carefully selected to provide electrical isolation between the conductors. It prevents electrical leakage and short - circuits. Materials used for insulation are typically of high quality and have good dielectric properties. This ensures the stable operation of the control system by maintaining the integrity of the electrical signals within each conductor.

4. Overall Cable Structure

• The combination of multiple insulated copper conductors within the cable forms the core. These conductors are arranged in a specific configuration depending on the design requirements of the control system. The overall structure is designed to minimize crosstalk between the conductors and ensure reliable signal transmission.

5. LSZH Jacket

• Low Smoke: In the event of a fire or high - temperature situation, the LSZH jacket produces a very low amount of smoke. This is of great significance in enclosed spaces such as buildings, subways, or industrial control rooms. The low smoke characteristic ensures that visibility is not severely affected, providing more time for evacuation and reducing the risk of suffocation.

• Zero Halogen: The absence of halogens in the jacket material is another important feature. When burned, halogen - containing materials can release toxic gases that are harmful to human health and the environment. The zero - halogen property of the LSZH jacket makes the cable more environmentally friendly and safer during a fire.

• Fire - Resistance and Protection: The LSZH jacket also provides a certain level of fire - resistance and mechanical protection to the inner conductors and insulation. It helps to maintain the integrity of the cable during a fire or other adverse conditions, allowing the control system to continue functioning for a certain period.

6. Voltage Rating and Applications

• Voltage Rating: The cable is designed for low - medium voltage applications. This specific voltage range makes it suitable for a wide variety of control systems in different industries. The appropriate voltage rating ensures that the cable can safely handle the electrical load within the control system without the risk of insulation breakdown.

• Applications: It is widely used in industrial automation, building automation, power distribution control systems, and other fields. For instance, in an industrial production line, the KVV cable with LSZH jacket can be used to connect control panels, sensors, and actuators, providing reliable control signals for the operation of the production process. In a building's electrical control system, it can be used for elevator control, air - conditioning control, and lighting control systems, ensuring the normal operation of these systems and enhancing the overall safety of the building.
