Specifications
Mating Cycles :
500
Maximum Operating Temperature :
+125 °C
Minimum Operating Temperature :
-55 °C
Series :
micro rectangular electrical connector
current :
3 A
Insulation Resistance :
5000 mΩ
Contact Resistance :
10 mΩ
Vibration :
10Hz~2000Hz, 196m/s²
Stock :
In Stock
Description

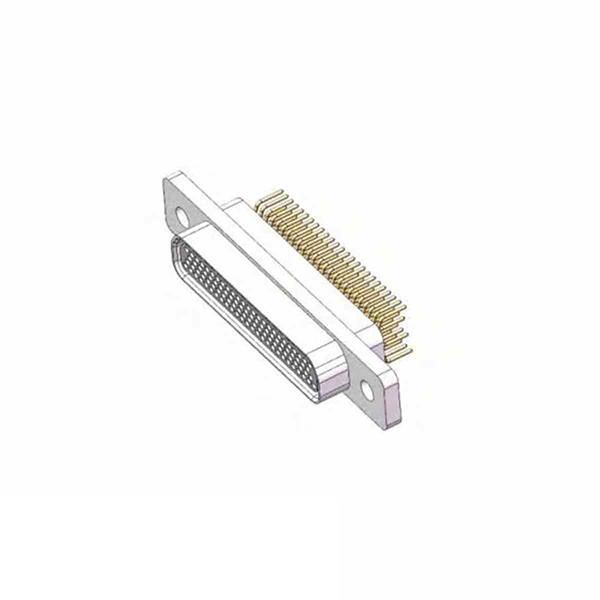

Unleash Precision and Reliability with the HUADA J30JR-100ZJN-J Micro Rectangular Electrical Connector

Experience unmatched precision and reliability with the HUADA J30JR-100ZJN-J Micro Rectangular Electrical Connector. This cutting-edge connector is designed for precision applications, delivering exceptional performance and meeting the highest industry standards.
Featuring a contact spacing of 1.27mm and a row spacing of 1.1mm, the HUADA J30JR-100ZJN-J connector provides optimal connectivity in compact spaces. It is suitable for wire sizes ranging from 0.1mm² to 0.15mm², ensuring compatibility with a wide range of electrical systems.
The HUADA J30JR-100ZJN-J Micro Rectangular Electrical Connector exceeds the requirements of GJB 2446 and is equivalent to the US military standard MIL-DT-83513, guaranteeing its performance and reliability in demanding environments.

Key Features of the HUADA J30JR-100ZJN-J Micro Rectangular Electrical Connector

Mating Cycles: This connector is designed to withstand up to 500 mating cycles, ensuring long-lasting and reliable performance even in frequent connection/disconnection scenarios.
Maximum Operating Temperature: With a maximum operating temperature of +125 °C, the J30JR-100ZJN-J connector can withstand high-temperature environments without compromising its functionality or reliability.
Minimum Operating Temperature: The connector is designed to operate reliably even in extremely low-temperature conditions, with a minimum operating temperature of -55 °C. This feature ensures its usability in various cold environments.
Series: The J30JR-100ZJN-J is part of the micro rectangular electrical connector series, renowned for its compact size, high performance, and precision engineering.
Current Capacity: This connector has a maximum current rating of 3 A, making it suitable for a variety of electrical applications that require moderate power transmission.
Contact Resistance: The J30JR-100ZJN-J connector exhibits low contact resistance of 10 mΩ, ensuring efficient power transmission and minimizing energy loss or signal interference.
Insulation Resistance: With a high insulation resistance of 5000 mΩ, the connector provides effective electrical isolation and prevents leakage or short circuits, ensuring safe and reliable operation.
Vibration Resistance: The J30JR-100ZJN-J connector is designed to withstand vibrations in the range of 10Hz to 2000Hz, with a vibration level of 196m/s². This feature ensures its durability and reliability in challenging environments where mechanical vibrations are present.

Technical Characteristics Table:

Mating Cycles 500
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -55 °C
Series micro rectangular electrical connector
current 3 A
Contact Resistance 10 mΩ
Insulation Resistance 5000 mΩ
Vibration 10Hz~2000Hz, 196m/s²
