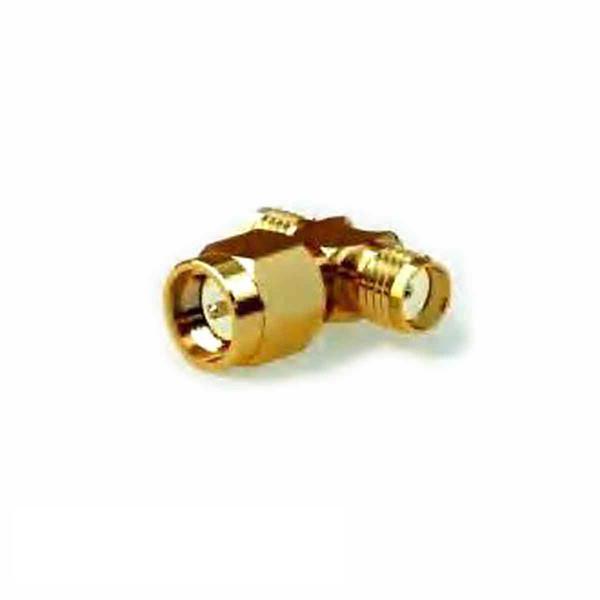

Discover the SMA-KJK-1 RF Coaxial Connector by HUADA

The HUADA SMA-KJK-1 RF Coaxial Connector is a high-performance, reliable solution engineered to meet the rigorous demands of modern RF applications. This 50Ω connector delivers exceptional signal integrity and seamless connectivity, even in harsh environments.

Offering a frequency range of 0-12.4GHz with flexible cable (or 18GHz with semi-rigid cable), the SMA-KJK-1 connector ensures optimal signal transmission for a wide range of RF applications. Built with durable materials and designed for longevity, it can withstand a wide operating temperature range from -65°C to +165°C, making it suitable for challenging environments.

Designed to minimize signal loss and maximize transmission efficiency, the connector boasts a low VSWR (1.15+0.02F with flexible cable, 1.10+0.02F with semi-rigid cable), ensuring superior signal integrity throughout the transmission path. The robust design allows for 500 mating cycles, ensuring long-term reliability and minimizing downtime.

Whether you're working on high-frequency communication systems, military equipment, or other critical applications, the HUADA SMA-KJK-1 connector delivers exceptional reliability and performance, ensuring a robust and consistent RF connection.

Key Features of the SMA-KJK-1 HUADA Coaxial Connector

Impedance (50Ω) The SMA-KJK-1 maintains a consistent impedance of 50Ω, ensuring efficient signal transmission across various applications. Whether you’re connecting antennas, test equipment, or communication systems, this connector delivers reliable performance.

Temperature Range (-65 °C to +165 °C) Extreme environments demand robust components. The SMA-KJK-1 thrives in conditions ranging from scorching heat to freezing cold. Whether it’s aerospace, industrial machinery, or telecommunications equipment, count on this connector to stay operational.

Durability (500 Mating Cycles) Connectors endure repeated use, especially in production lines or field deployments. The SMA-KJK-1 withstands up to 500 mating cycles without compromising signal integrity. It’s a workhorse for demanding scenarios.

Insulation Resistance (5000 MΩ) Signal quality depends on insulation. With an impressive insulation resistance of 5000 MΩ, the SMA-KJK-1 minimizes leakage and ensures stable connections. Your critical systems deserve this level of reliability.

Dielectric Withstanding Voltage (1000 V) Safety matters in high-voltage environments. The SMA-KJK-1 can handle up to 1000 V, protecting both your equipment and personnel. Whether it’s in medical devices or industrial control panels, safety is non-negotiable.

Frequency Range
Flexible Cable: The SMA-KJK-1 covers frequencies from 0 to 12.4GHz. From Wi-Fi routers to radar systems, it adapts to diverse applications.
Semi-rigid: Need higher frequencies? Extend the range to 0~18GHz. Ideal for microwave communication and satellite systems.
VSWR (Voltage Standing Wave Ratio)
Flexible Cable: Achieves a VSWR of 1.15+0.02F, minimizing signal reflections. Your data stays clean, even in complex networks.
Semi-rigid: Take it a step further with a VSWR of 1.10+0.02F. When precision matters, the SMA-KJK-1 delivers.

Technical Features Table:
