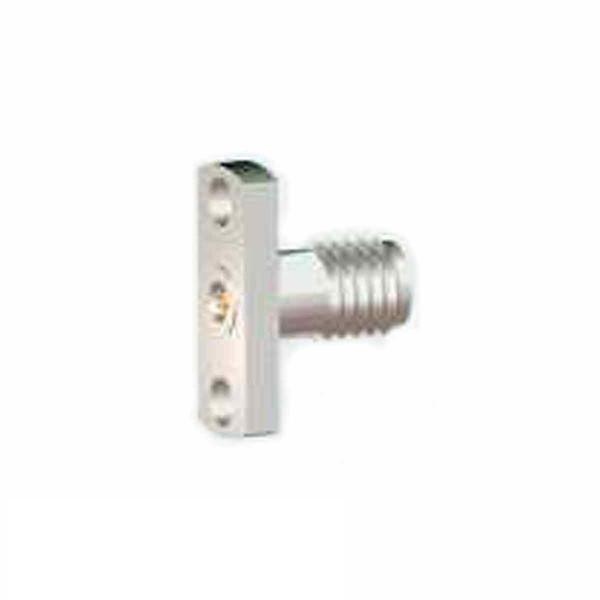

High-Performance HUADA 1.85-KFD3G Millimeter Wave Connector (67 GHz)
High-Performance HUADA 1.85-KFD3G Millimeter Wave Connector (67 GHz)
Specifications
Impedance :
50 Ω
Insulation resistance :
5000 MΩ
Contact resistance Inner Conductor :
8 mΩ
Contact resistance Outer Conductor :
3.5 mΩ
Maximum Operating Temperature :
+125 °C
Minimum Operating Temperature :
-55 °C
Frequency Range :
67 GHz
Mating Cycles :
500
Stock :
In Stock
Description

Discover the HUADA 1.85-KFD3G Connector: Unleash 67 GHz Excellence

The 1.85-KFD3G Connector stands as a testament to cutting-edge millimeter wave technology. With a frequency range extending up to an impressive 67 GHz, it caters to high-frequency applications across various domains. Whether you’re designing next-gen radar systems, conducting scientific research, or implementing wireless communication links, this connector delivers unparalleled performance. Its compact form factor and lightweight design make it an ideal choice for space-constrained setups, ensuring seamless integration into your projects.

Key Features of the HUADA 1.85-KFD3G Connector

Compact and Lightweight: With a small form factor and lightweight design, the 1.85-KFD3G is ideal for space-constrained setups.
Reliable Signal Integrity: Low contact resistance (8 MΩ inner conductor, 3.5 MΩ outer conductor) ensures consistent performance.
High Mating Cycles: Expect reliable connections even after 500 mating cycles.
Frequency Range: The 1.85-KFD3G operates across an impressive frequency spectrum, spanning from DC to 67 GHz, making it suitable for high-frequency applications1.
Operating Temperature: It can withstand temperatures ranging from -55°C to 165°C, ensuring reliability even in extreme conditions.
Pin Diameter: The connector features a fine pin diameter of 0.23 mm, crucial for optimal electrical contact and signal transmission.
Voltage Rating: With a voltage rating of 500 Vrms (Dielectric Withstanding Voltage), it meets stringent safety standards.
VSWR (Voltage Standing Wave Ratio): The VSWR is an excellent 1.25:1, indicating efficient signal transmission and minimal reflections.

Technical Features Table:

Impedance

 50 Ω
Insulation resistance 5000 MΩ
Contact resistance Inner Conductor 8 mΩ
Contact resistance Outer Conductor 3.5 mΩ
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -55 °C
Frequency Range 67 GHz
Mating Cycles 500
