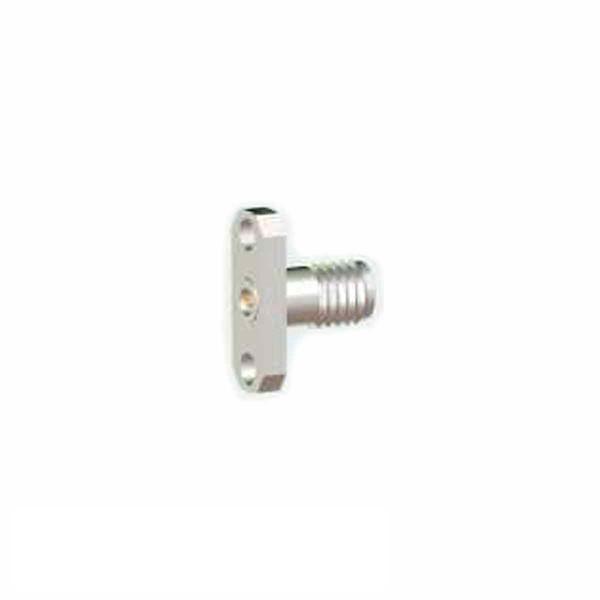

Discover the HUADA 1.85-KFD Connector: High-Frequency Millimeter Wave Excellence

The 1.85-KFD Connector stands at the forefront of millimeter wave technology, offering exceptional performance up to 67 GHz. Its compact design and lightweight build make it an ideal choice for space-constrained applications. Whether in high-frequency microwave measurements or millimeter-wave equipment, this connector ensures reliable signal integrity and seamless interchangeability with the 2.4 series connector.
With low contact resistance (8 MΩ inner conductor, 3.5 MΩ outer conductor), the 1.85-KFD thrives in harsh environments. Its wide temperature range (-55°C to +125°C) allows it to perform consistently across varying conditions. Plus, with 500 mating cycles, you can rely on this connector for long-lasting, dependable connections.

Key Features of the 1.85-KFD Connector

Frequency Range: The 1.85-KFD Connector operates across an impressive frequency spectrum, spanning from DC (direct current) up to a remarkable 67 GHz. This expansive range positions it as a versatile solution for high-frequency applications, including millimeter-wave communication, radar systems, and scientific instrumentation.
Operating Temperature Resilience: When it comes to extreme environments, the 1.85-KFD Connector doesn’t flinch. It can endure temperatures as low as -55°C and as high as 165°C. Whether deployed in frigid outdoor installations or within heated industrial settings, this connector maintains its performance integrity.
Pin Diameter Precision: The connector’s pin diameter measures a mere 0.23 mm. Such precision ensures optimal electrical contact and signal transmission. Whether you’re dealing with delicate test setups or high-speed data links, this fine pin diameter plays a crucial role in maintaining signal fidelity.
Voltage Rating Assurance: With a voltage rating of 500 Vrms (Dielectric Withstanding Voltage), the 1.85-KFD Connector meets stringent safety standards. This rating signifies its ability to withstand high voltages without compromising insulation integrity. Engineers and technicians can rely on this connector for safe and reliable operation.
VSWR Efficiency: The Voltage Standing Wave Ratio (VSWR) of the 1.85-KFD Connector impresses with a low value of 1.25:1. In practical terms, this means minimal signal reflections and efficient power transfer. Whether you’re designing microwave circuits or building communication links, a low VSWR contributes to overall system performance.

Technical Features Table:
